4. When the bottom surface of the Print Head (Carriage unit) is stained with ink
spatters, apply very small amount of Ink cleaner on a waste cloth to wipe them off.

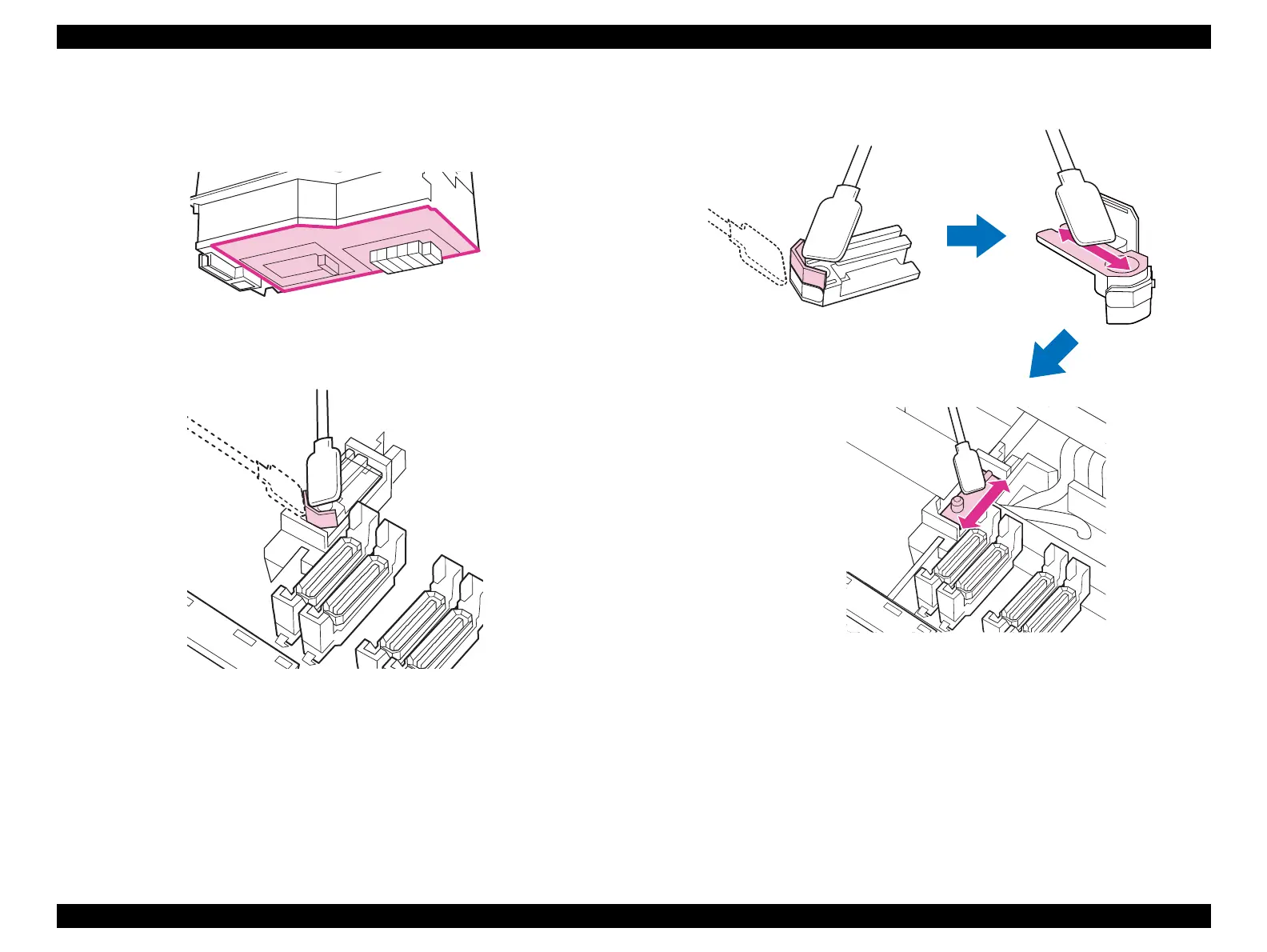

Figure 5-11. Cleaning Bottom Surface of the Print Head
5. Wipe both sides of the Wiper with the Cleaning swab.
Figure 5-12. Cleaning the Wiper
6. When ink stain is on the attachment part, take out the Wiper to clean.
Figure 5-13. Cleaning the Wiper
Take out the Wiper
and wipe both sides.
Wipe the bottom
surface of the Wiper.
Wipe the attachment
part of the Wiper.
