EPSON Stylus C110/C120/D120 Revision B
OPERATING PRINCIPLE Printer Mechanism Operating Principles 29
STEP4: ENDING PAPER LOADING OPERATION
Continuous counterclockwise rotation of the LD roller (as seen from the left side) feeds
paper to the PF roller. The LD roller rotation causes the hopper release cam and the
paper back lever cam to push down the hopper and the paper back lever respectively.
The paper back lever returns paper to the standby position to prevent multiple sheets of
paper from being fed at once.
When the LD roller and the clutch reach the ASF home position shown in “Step1” on
the previous page, the clutch lever is locked again by the change lever. This causes the
PF motor drive force not to be transmitted to the paper loading mechanism and to be
transmitted only to the paper feeding mechanism.

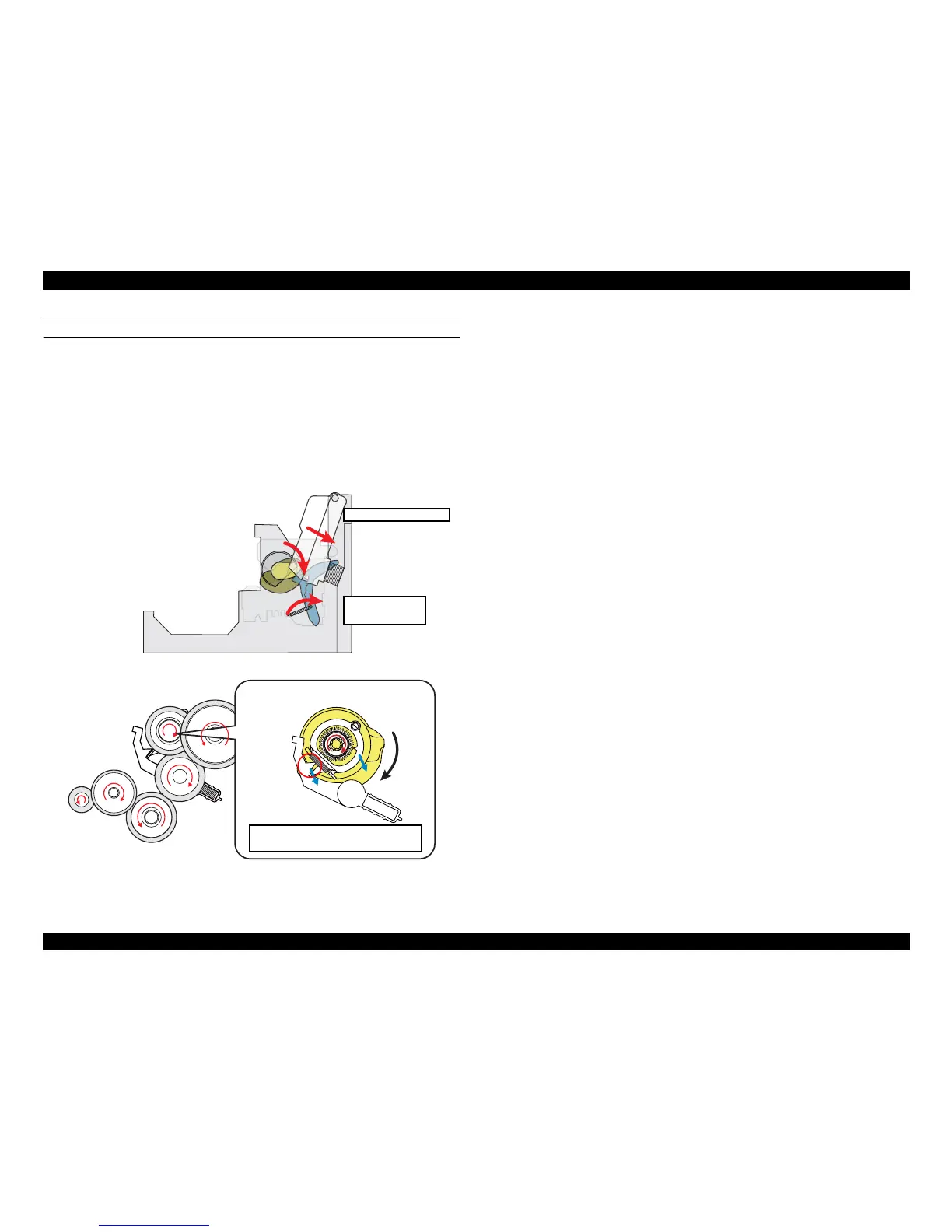

Figure 2-11. Ending Paper Loading Operation
Clutch lever is locked again by change
lever to shut off PF motor drive force.
Paper Back Lever
snaps back
Hopper is pushed down

Epson Stylus C110 Specifications

Print Quality

maximum resolution	5760 X 1440 dpi
minimum ink droplet volume	3 pl

Print Speed

black text memo (A4)	Approx. 37 ppm (Draft) / 25 ppm (Default)
colour text memo (A4)	Approx. 20 ppm (Draft) / 11 ppm (Default)
photo (4R/4x6”)	Approx. 35 sec per photo (Draft W/Border)

Ink Cartridges

black ink cartridge (T0731H)	2 cartridges 740 pages
black ink cartridge (T0731)	2 cartridges 470 pages
magenta ink cartridge (T0733)	350 pages (Composite Yield)

Paper Handling

paper feed method	Friction Feed
paper hold capacity	120 sheets, A4 Plain paper
maximum paper thickness	0.33 mm

Electrical Specifications

rated voltage	AC 220-240V
rated frequency	50~60 Hz
power consumption	Approx. 15W (per ISO10561 Letter Pattern)

Weight and Dimensions

weight	3.9 kg
height	161 mm
width	240 mm
depth	435 mm
