Epson Stylus C110 User Manual

EPSON Stylus C110/C120/D120 Revision B
TROUBLESHOOTING Troubleshooting 48

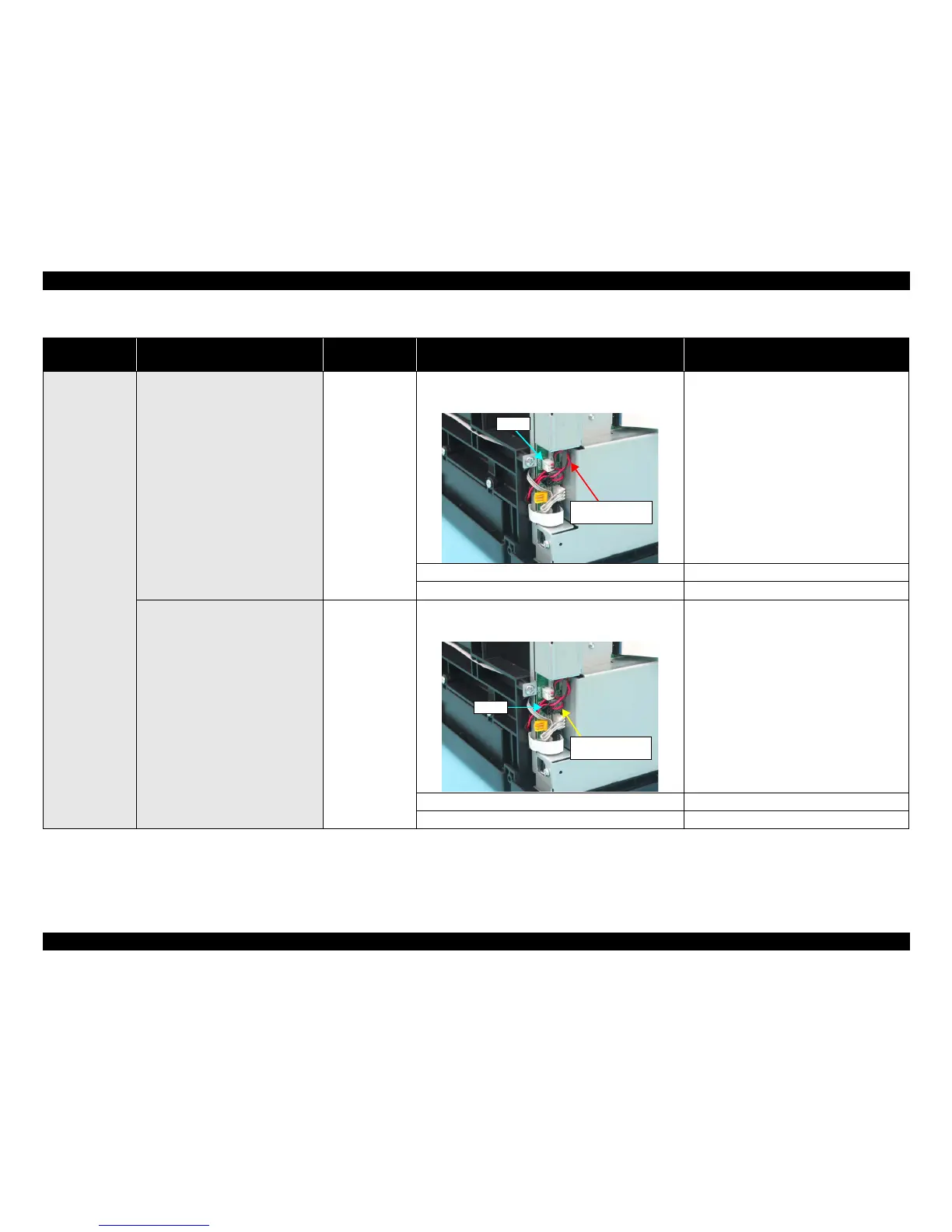

Table 3-3. Check point for fatal error according to each phenomenon
Occurrence timing
CR position
Detailed phenomenon
Defective unit/
part name
Check point Remedy
• Power on
• Anywhere
When turning on the power, the CR
Motor does not operate at all.
CR Motor
1. Check if the CR Motor Connector Cable is connected to
CN8 on the Main Board.
1. Connect the CR Motor Connector Cable to CN8
on the Main Board.
2. Check if the CR Motor Connector Cable is not damaged. 2. Replace the CR Motor with a new one.
3. Check if the CR Motor operates. 3. Replace the CR Motor with a new one.
When turning on the power, the PF Motor
does not operate at all.
PF Motor
1. Check if the PF Motor Connector Cable is connected to
CN9 on the Main Board.
1. Connect the PF Motor Connector Cable to CN9
on the Main Board.
2. Check if the PF Motor Connector Cable is not damaged. 2. Replace the PF Motor with a new one.
3. Check if the PF Motor operates. 3. Replace the PF Motor with a new one.
CN8
CR Motor
Connector Cable
CN9
PF Motor
Connector Cable

Epson Stylus C110 Specifications

Print Quality

maximum resolution	5760 X 1440 dpi
minimum ink droplet volume	3 pl

Print Speed

black text memo (A4)	Approx. 37 ppm (Draft) / 25 ppm (Default)
colour text memo (A4)	Approx. 20 ppm (Draft) / 11 ppm (Default)
photo (4R/4x6”)	Approx. 35 sec per photo (Draft W/Border)

Ink Cartridges

black ink cartridge (T0731H)	2 cartridges 740 pages
black ink cartridge (T0731)	2 cartridges 470 pages
magenta ink cartridge (T0733)	350 pages (Composite Yield)

Paper Handling

paper feed method	Friction Feed
paper hold capacity	120 sheets, A4 Plain paper
maximum paper thickness	0.33 mm

Electrical Specifications

rated voltage	AC 220-240V
rated frequency	50~60 Hz
power consumption	Approx. 15W (per ISO10561 Letter Pattern)

Weight and Dimensions

weight	3.9 kg
height	161 mm
width	240 mm
depth	435 mm
