TROUBLESHOOTING Troubleshooting 58
• Operation
•–
The drive of the PF Motor is not
transmitted to the LD Roller Shaft.
ASF Unit
1. Check if the Extension Spring 0.143 does not come off in
the Clutch mechanism.
1. Reassemble the Extension Spring 0.143 in the
Clutch mechanism.
2. Check if the positioning hole of the Clutch does not come
off from the guide pin of the LD Roller Shaft.
2. Reassemble the positioning hole of the Clutch
on the guide pin of the LD Roller Shaft.
3. Check if the Clutch tooth is not damaged. 3. Replace the ASF Unit with a new one.
4. Check if the Clutch is not damaged. 4. Replace the ASF Unit with a new one.
5. Check if the Compression Spring 2.36 does not come off
in the Change Lever.
5. Replace the ASF Unit with a new one.

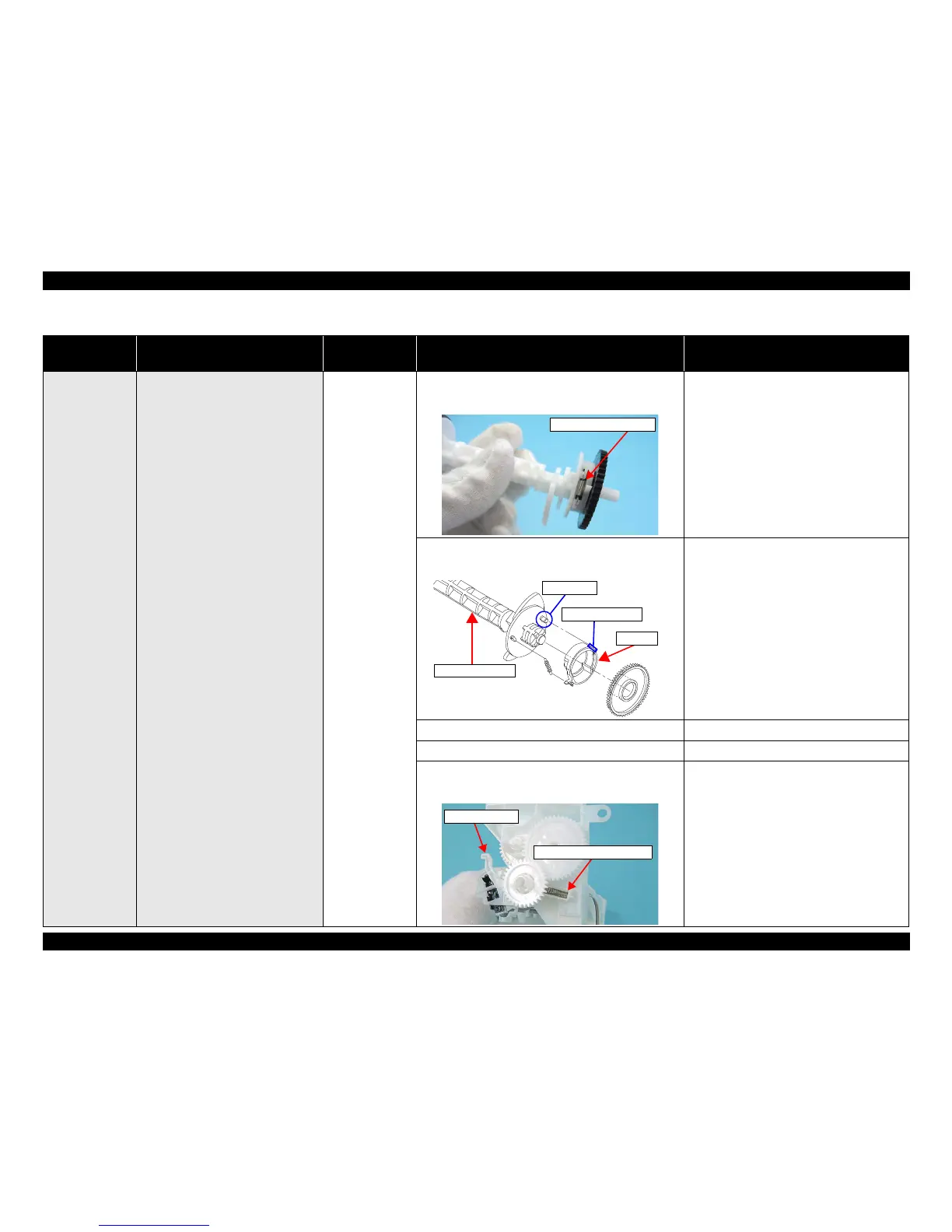

Table 3-8. Check point for paper out error according to each phenomenon
Occurrence timing
CR position
Detailed phenomenon
Defective unit/
part name
Check point Remedy
Extension Spring 0.143
Guide Pin
Clutch
LD Roller Shaft
Positioning Hole
Compression Spring 2.36
Change Lever

Epson Stylus C110 Specifications

Print Quality

maximum resolution	5760 X 1440 dpi
minimum ink droplet volume	3 pl

Print Speed

black text memo (A4)	Approx. 37 ppm (Draft) / 25 ppm (Default)
colour text memo (A4)	Approx. 20 ppm (Draft) / 11 ppm (Default)
photo (4R/4x6”)	Approx. 35 sec per photo (Draft W/Border)

Ink Cartridges

black ink cartridge (T0731H)	2 cartridges 740 pages
black ink cartridge (T0731)	2 cartridges 470 pages
magenta ink cartridge (T0733)	350 pages (Composite Yield)

Paper Handling

paper feed method	Friction Feed
paper hold capacity	120 sheets, A4 Plain paper
maximum paper thickness	0.33 mm

Electrical Specifications

rated voltage	AC 220-240V
rated frequency	50~60 Hz
power consumption	Approx. 15W (per ISO10561 Letter Pattern)

Weight and Dimensions

weight	3.9 kg
height	161 mm
width	240 mm
depth	435 mm
