DISASSEMBLY/ASSEMBLY Removing Board 77
2. Peel off the acetate tape (x1) that secures the Head FFC and the Left Frame
together, and release the Head FFC from the hook (x1) on the Left Frame.

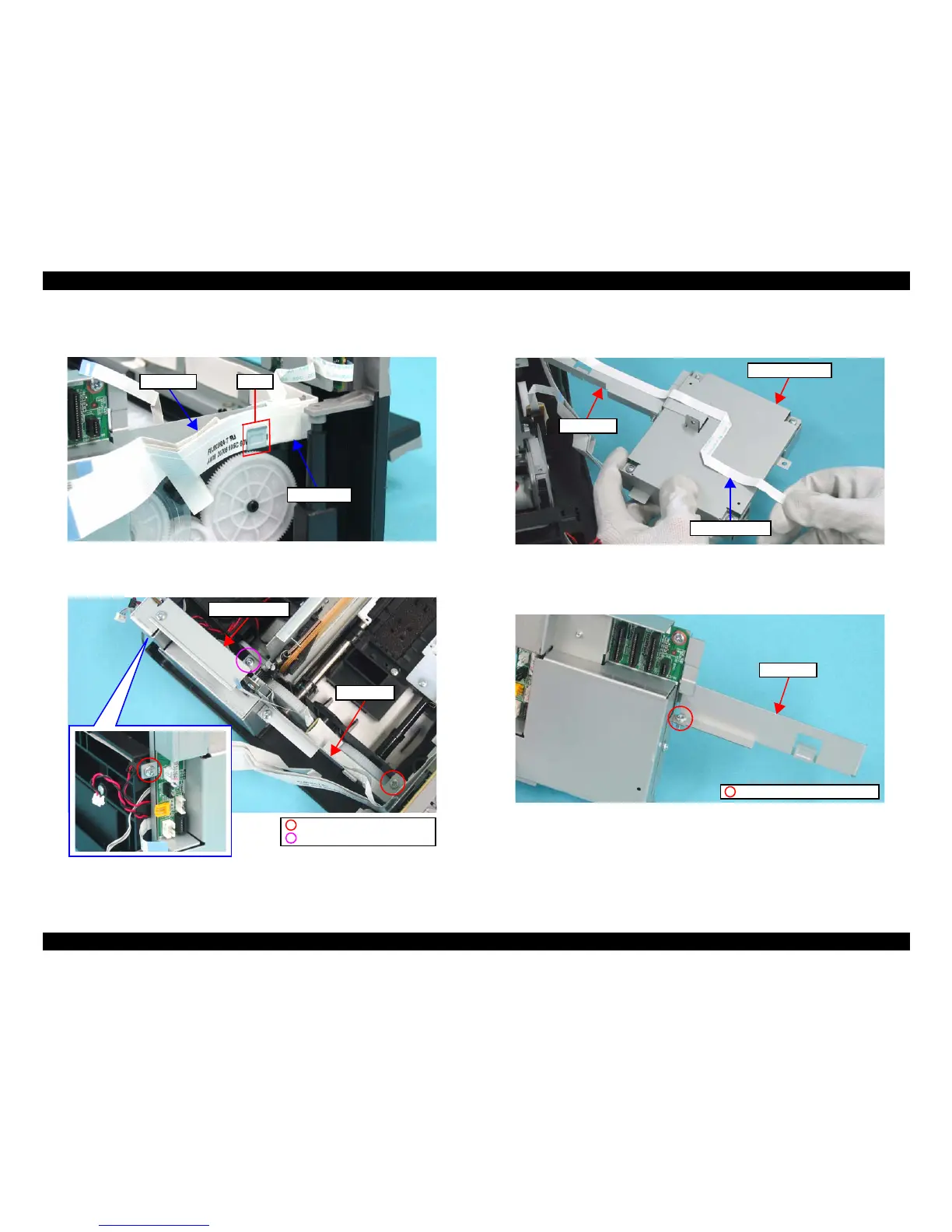

Figure 4-10. Removing Main Board Unit/Left Frame (1)
3. Remove the screws (x3) that secure the Main Board Unit and the Left frame.
Figure 4-11. Removing Main Board Unit/Left Frame (2)
4. Peel off the Panel Unit FFC from both the Main Board Unit and the Left Frame,
and remove them together.
Figure 4-12. Removing Main Board Unit/Left Frame (3)
5. Remove the screw (x1) that secures the Left Frame, and remove the Main Board
Unit.
Figure 4-13. Removing Main Board Unit/Left Frame (4)
Head FFC
Acetate Tape
Hook
C.B.P. 3x6, F/Zn-3C (6±1kgfcm)
C.B.S. 3x6, F/Zn-3C (6±1kgfcm)
Main Board Unit
Left Frame
Panel Unit FFC
Main Board Unit
Left Frame
C.B.S. 3x6, F/Zn-3C (4±0.5kgfcm)
Left Frame

Epson Stylus C110 Specifications

Print Quality

maximum resolution	5760 X 1440 dpi
minimum ink droplet volume	3 pl

Print Speed

black text memo (A4)	Approx. 37 ppm (Draft) / 25 ppm (Default)
colour text memo (A4)	Approx. 20 ppm (Draft) / 11 ppm (Default)
photo (4R/4x6”)	Approx. 35 sec per photo (Draft W/Border)

Ink Cartridges

black ink cartridge (T0731H)	2 cartridges 740 pages
black ink cartridge (T0731)	2 cartridges 470 pages
magenta ink cartridge (T0733)	350 pages (Composite Yield)

Paper Handling

paper feed method	Friction Feed
paper hold capacity	120 sheets, A4 Plain paper
maximum paper thickness	0.33 mm

Electrical Specifications

rated voltage	AC 220-240V
rated frequency	50~60 Hz
power consumption	Approx. 15W (per ISO10561 Letter Pattern)

Weight and Dimensions

weight	3.9 kg
height	161 mm
width	240 mm
depth	435 mm
