EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 135
External view (2)

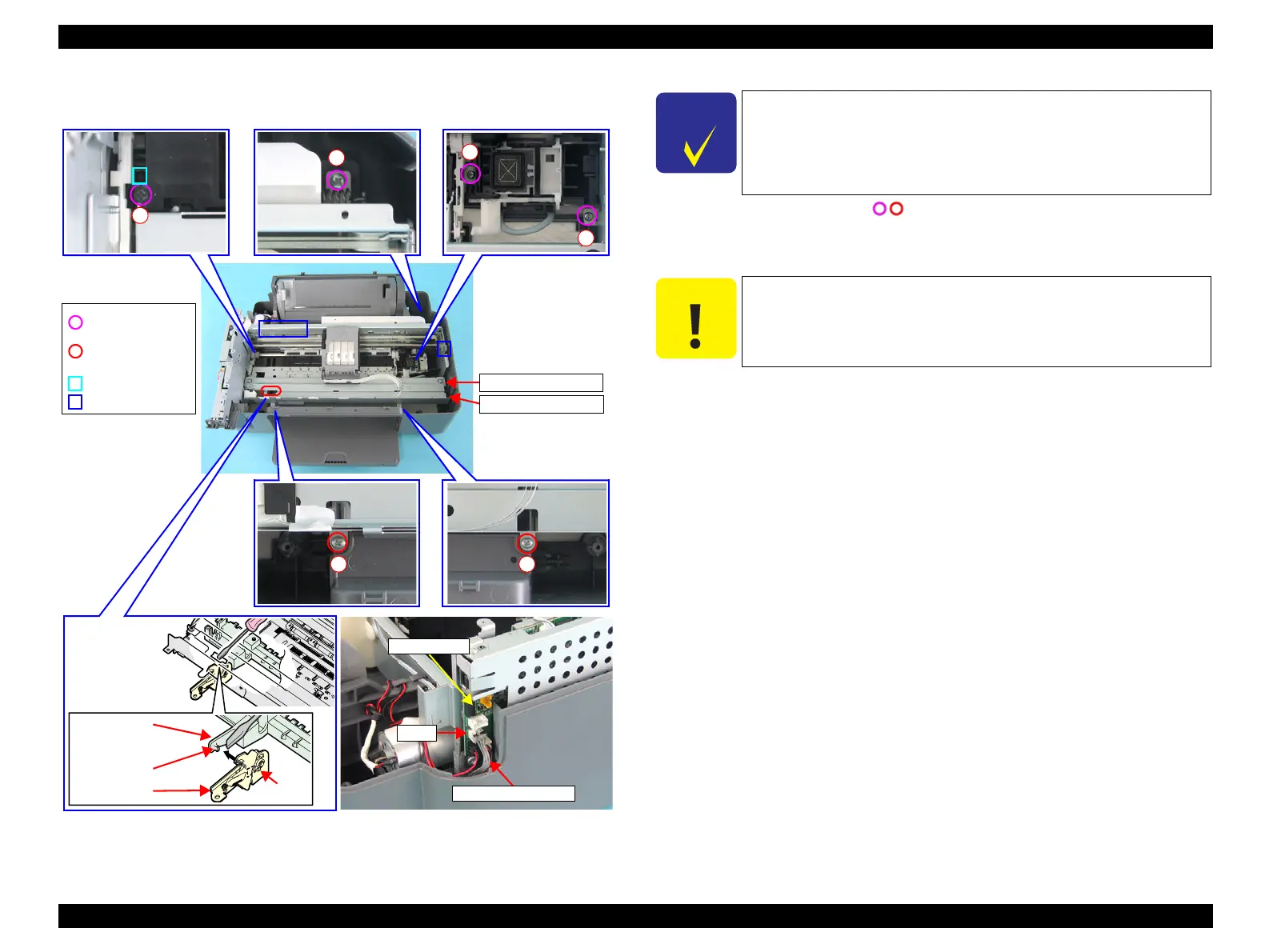

Figure 4-12. Removing Printer Mechanism (2)
4. Remove the screws (x6, ) that secure the Printer Mechanism.
5. Disconnect the PS Connector Cable from the connector (CN1) of the Main
Board.
6. Hold up the left side of the Printer Mechanism while releasing the guide pin of
the Front Paper Guide Support from the groove of the PG Lever with a
precision screwdriver (-), and remove whole Printer Mechanism from the
Housing, Lower.
1
4
65
2
3
Printer Mechanism
CN1
Main Board
PS Connector Cable
PG Lever
Guide Pin
Front Paper
Guide Support
Groove
C.B.P. 3x8 F/Zn
(4±1kgfcm)
Tab
Holding Positions
C.B.P. 3x10 F/Zn
(4±1kgfcm)
CR Guide Frame
C H E C K
P O I N T
Removal procedures of the model with no card slot (Stylus
CX4100/CX4200/DX4200) differs from the one of the card slot
model (Stylus CX4700/CX4800/DX4800).
When disassembling the model with no card slot, refer to
"4.6.1
Printer Mechanism (p167)"
.
C A U T I O N
Hold the designated position and lift Printer Mechanism upward
when performing the following step in order to prevent warping of
Main Frame.
To Next Page
