EPSON Stylus CX4100/CX4200/CX4700/CX4800/DX4200/DX4800/DX4850 Revision A
DISASSEMBLY/ASSEMBLY Scanner Section 165
 External view (2)

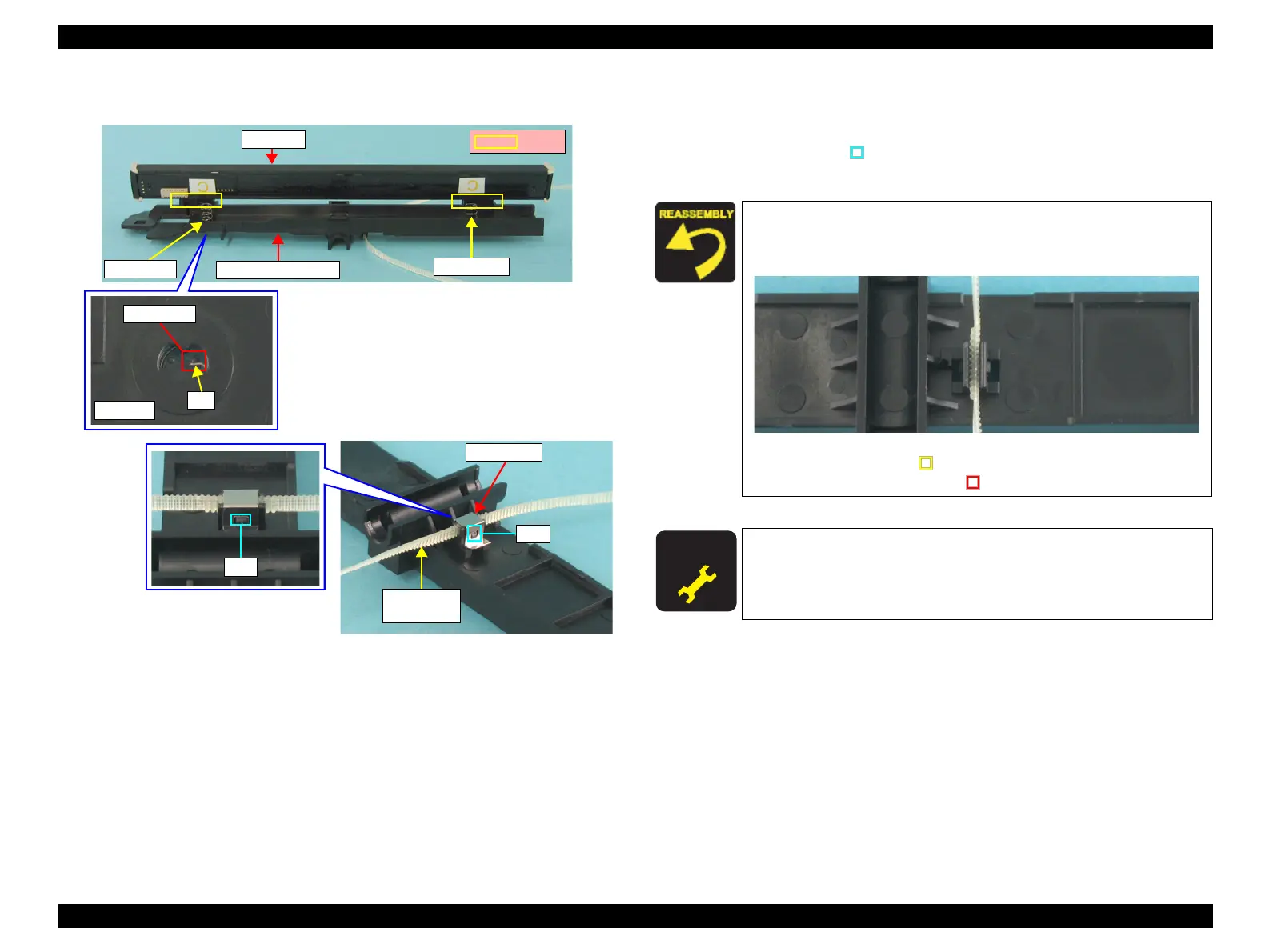

Figure 4-51. Removing Scanner Carriage Unit (2)
4. Open and slide the CIS Unit toward right, and remove the CIS Unit from the
Scanner CR Holder.
5. Remove the CIS Spring (x2) from the Scanner CR Holder.
6. Release the tabs (x2, ) that secure the Belt Clump with a tweezer.
7. Remove the Scanner Timing Belt from the Scanner Carriage Unit.
Belt Clump
Scanner
Timing Belt
Tab
Tab
Scanner CR Holder
CIS Spring
Shafts
CIS Unit
CIS Spring
Tip
Guide Pin
Bottom
 Attach the Scanner Timing Belt to the Scanner Carriage Unit so
that the part where the belt is jagged on both sides is pinched by
the groove of the Scanner Carriage Unit.
Figure 4-52. Attaching Scanner Timing Belt
 The CIS Springs (x2, ) should be installed with their tips
hitched to the guide pin (x1,
) of the Scanner CR Holder.
A D J U S T M E N T
R E Q U I R E D
After changing the Scanner Carriage Shaft for a new one, always
apply grease G-26 to the specified parts.
 Refer to Figure 6-4 (p190) for details.
