Maintenance 8. Cable
150 VT Rev.1
(6)

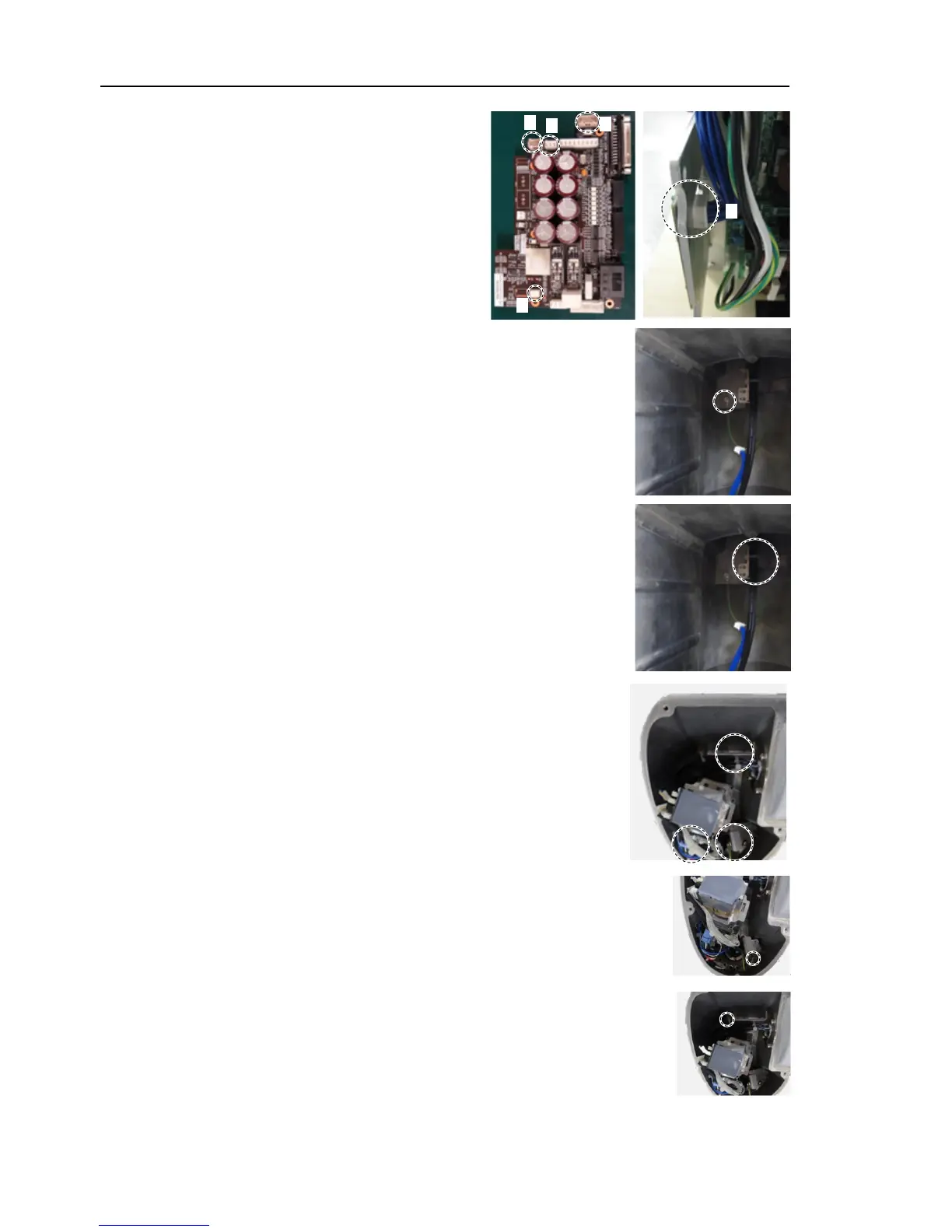

Disconnect
the following
connectors of the controller
unit.
A: Power cable connector
B: Signal cable connector
C: Hand I/O connector
D: LED connectors × 2
D
A
C
B
D
(
7)
Remove the ground wire terminal
s inside the base.
Cross recessed head screws: M4×6
(8)
Cut
off the wire tie bound to the plate inside the base.
Wire tie: AB150
(9)
Cut off the wire ties
bound inside the Arm #1.
Wire ties : AB150 × 2
AB100 × 1
(10)
Remove the ground wire terminals
of Arm #1.
Cross recessed head screws: 2-M4× 6
