Epson VT6L

Maintenance 8. Cable
VT Rev.1 157
(7)

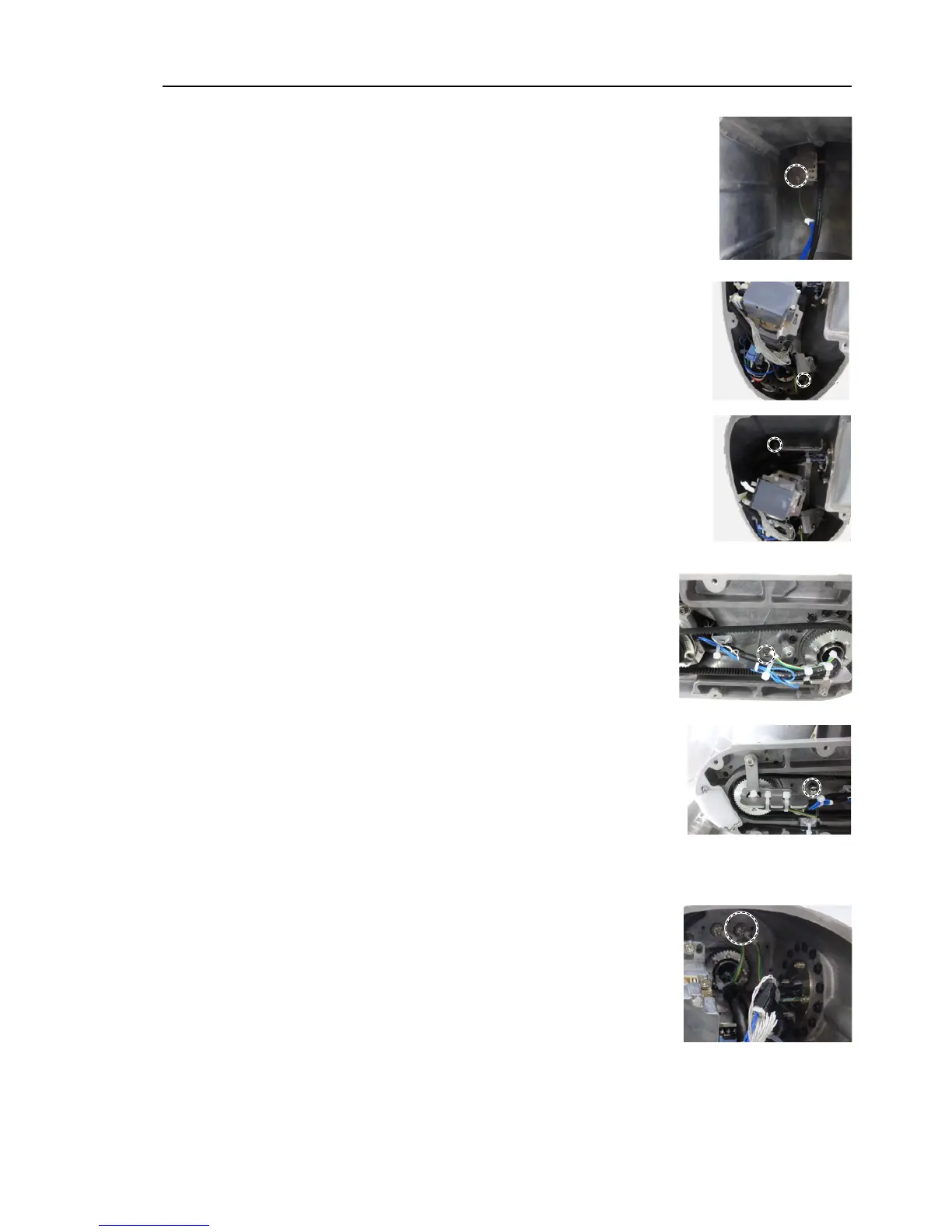

Fix
the ground wire between the base and the Arm #1.
Cross recessed head screws: 2-M4×6
Tightening torque: 2.0 ± 0.1 N·m
Base side:
Ground wire terminal marked “BASE” on the wire
marker.
Arm #1 side:
Ground wire terminal marked “ARM1” on the wire
marker.
(8)
Fix
the ground wire between the Arm #1 and the Arm #2.
Cross recessed head screws: 2-M4×6
Tightening torque: 2.0 ± 0.1 N·m
Arm #1 side:
Ground wire terminal marked “ARM1” on the wire
marker.
Arm #2 side:
Ground wire terminal marked “ARM2” on the
wire marker.
(9
)
Fix
the ground wire between the
Arm #2 and the Arm
#3
Cross recessed head screws: 2-M4×6
Tightening torque: 2.0 ± 0.1 N·m
Arm #2 side:
Ground wire terminal marked “ARM2” on the wire
marker.
Arm #3 side:
Ground wire terminal marked “ARM3” on the wire
marker.
