Epson VT6L

Maintenance 8. Cable
158 VT Rev.1

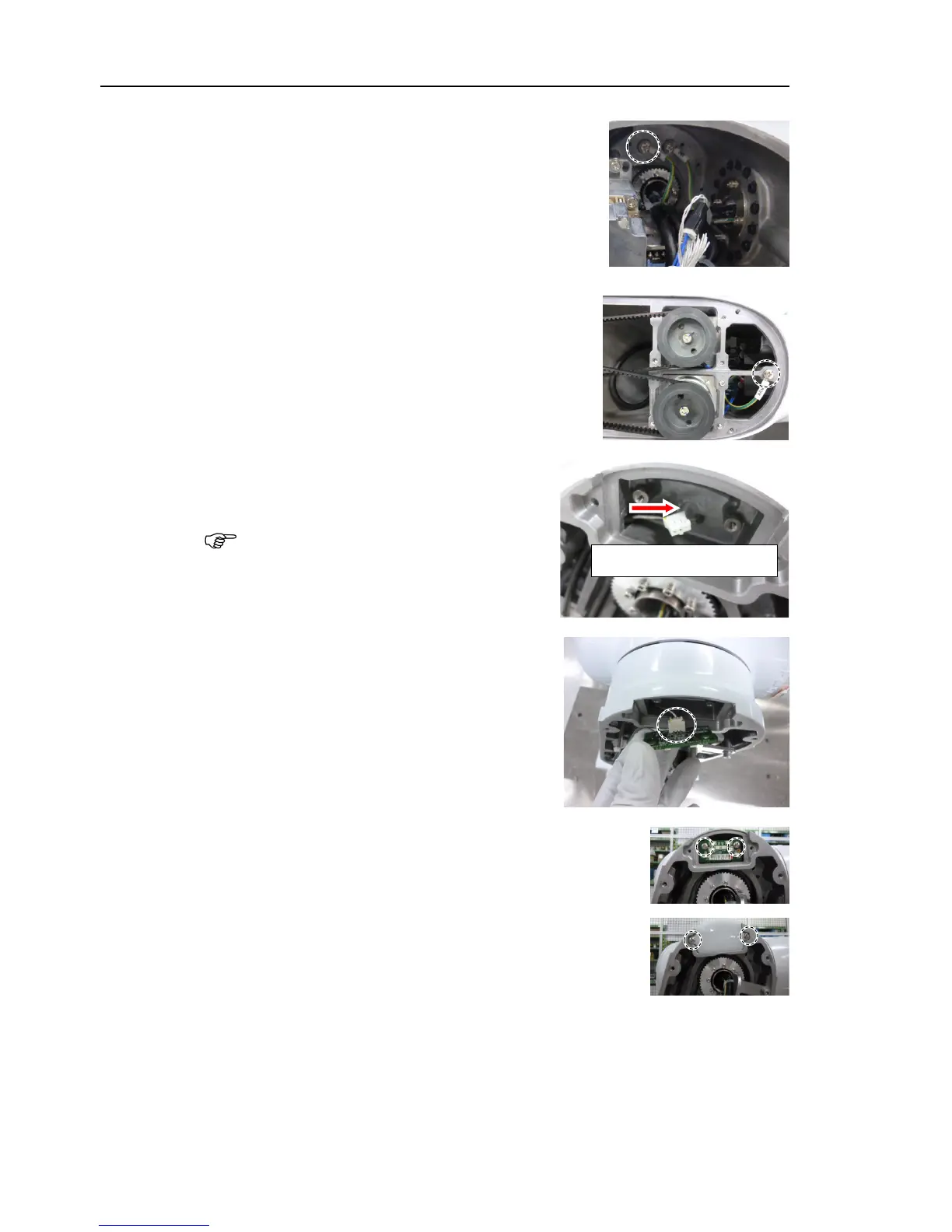

(10
)
Fix
the ground wire between the
Arm #3 and the Arm
#4.
Cross recessed head screws: 2-M4×6
Tightening torque: 2.0 ± 0.1 N·m
Arm #3 side:
Ground wire terminal marked “ARM3” on the
wire marker.
Arm #4 side:
Ground wire terminal marked “ARM4” on the
wire
marker.
(11)
Connect
the LED cable connector to the
opening of the end of Arm #2.
You can pass the connector th
rough the
opening easily by using
the wire tie.
Pass through the opening
(12)
Connect
the LED cable connector to the LED
board.
Connectors: LED_CN1
(13)
Fix the
LED board.
Cross recessed head screws: 2-M3×6
Tightening torque: 0.45 ± 0.1 N·m
(14)
Fix
the light guide plate.
Cross recessed head screws: 2-M3×10
Tightening torque: 0.45 ± 0.1 N·m

NOTE
