Epson VT6L

Maintenance 10. Joint #2
VT Rev.1 179
(10)

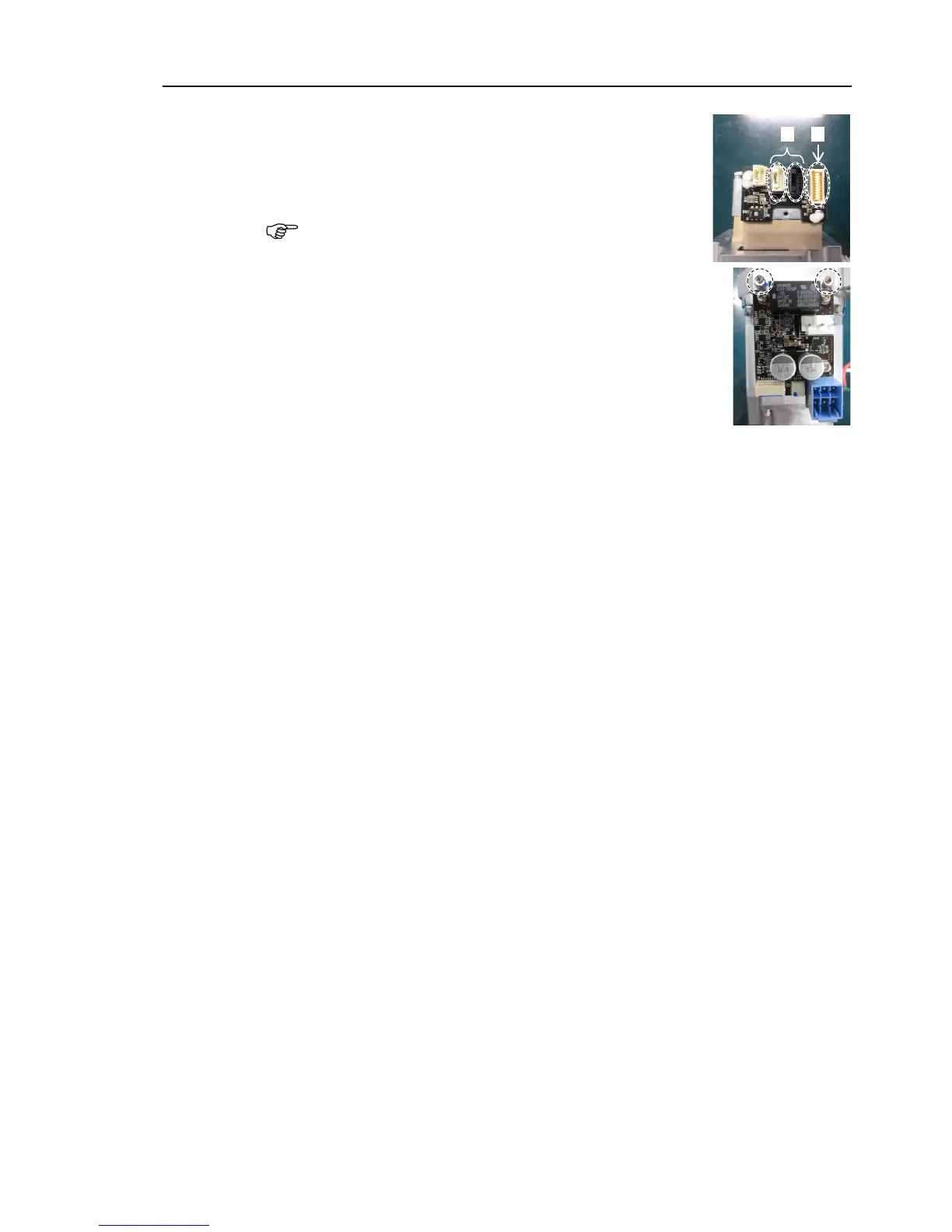

Disconnect
the following connectors of the motor.
A: Signal cable connectors (for motor × 2)
B: Signal cable connector (for AMP board)
The cables will be necessary again.
Be careful not to lose them.
A
B
(11)
Remove the AMP board fixing plate (with AMP board)
from
the motor unit.
Hexagon socket head cap bolts: 2-M3×6

NOTE
