Step Description Diagram

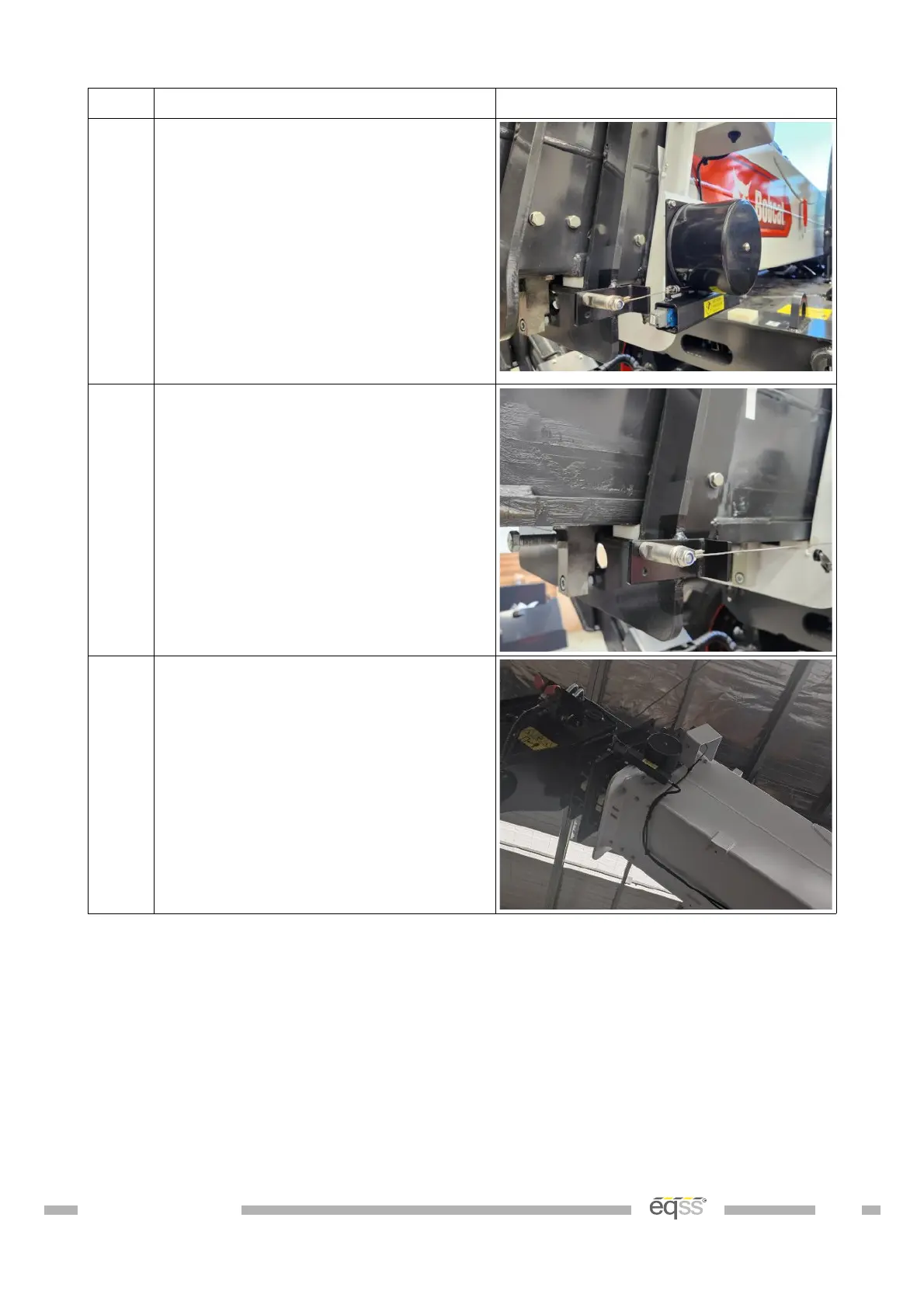

3. Weld the stow switch and anchor
mounting bracket to the first
extendable section, in position that
will trigger the stow switch when
the boom is retracted.
Note: Ensure the mounting bracket
is welded on the first extendable
section not on the last section. If
welded on the last section the cable
reeler will be damaged when the
boom is extended.
4. Mount the cable anchor to the
bracket and attach the cable.
5. Connect the supplied M12 10 metre
cable (CB001027) into the cable
reeler connection.
DO001547 VER: 2303241610 14 of 58
