Machine Connections
The following procedures connect the safety systems to the existing electronics in the
machine.
Isolate the main battery before starting the machine
connections
After completing the machine connections the boom can not
be moved until the installation is complete

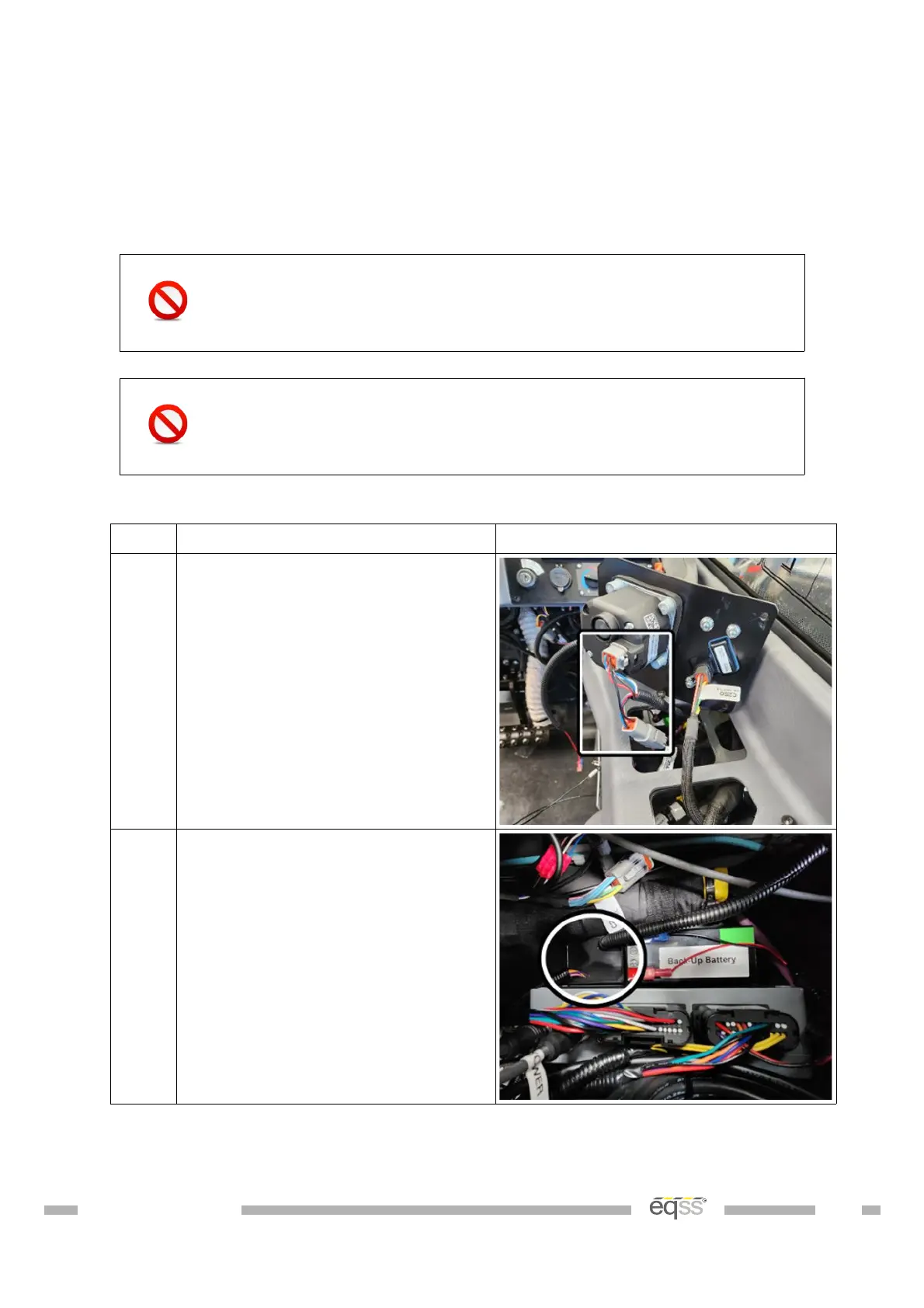

Step Description Diagram
1. Remove the plate holding the
joystick.
Connect the 6 pin tee connectors
from the CAN I/O module harness
into the joystick connector C256.
2. Secure the CAN I/O module onto
the flat plate under the switch
board cover next to the CCIM
module using velcro tape.
