Can Cabin Interface Module (CCIM)
The CCIM connects the system into the machine electronics.

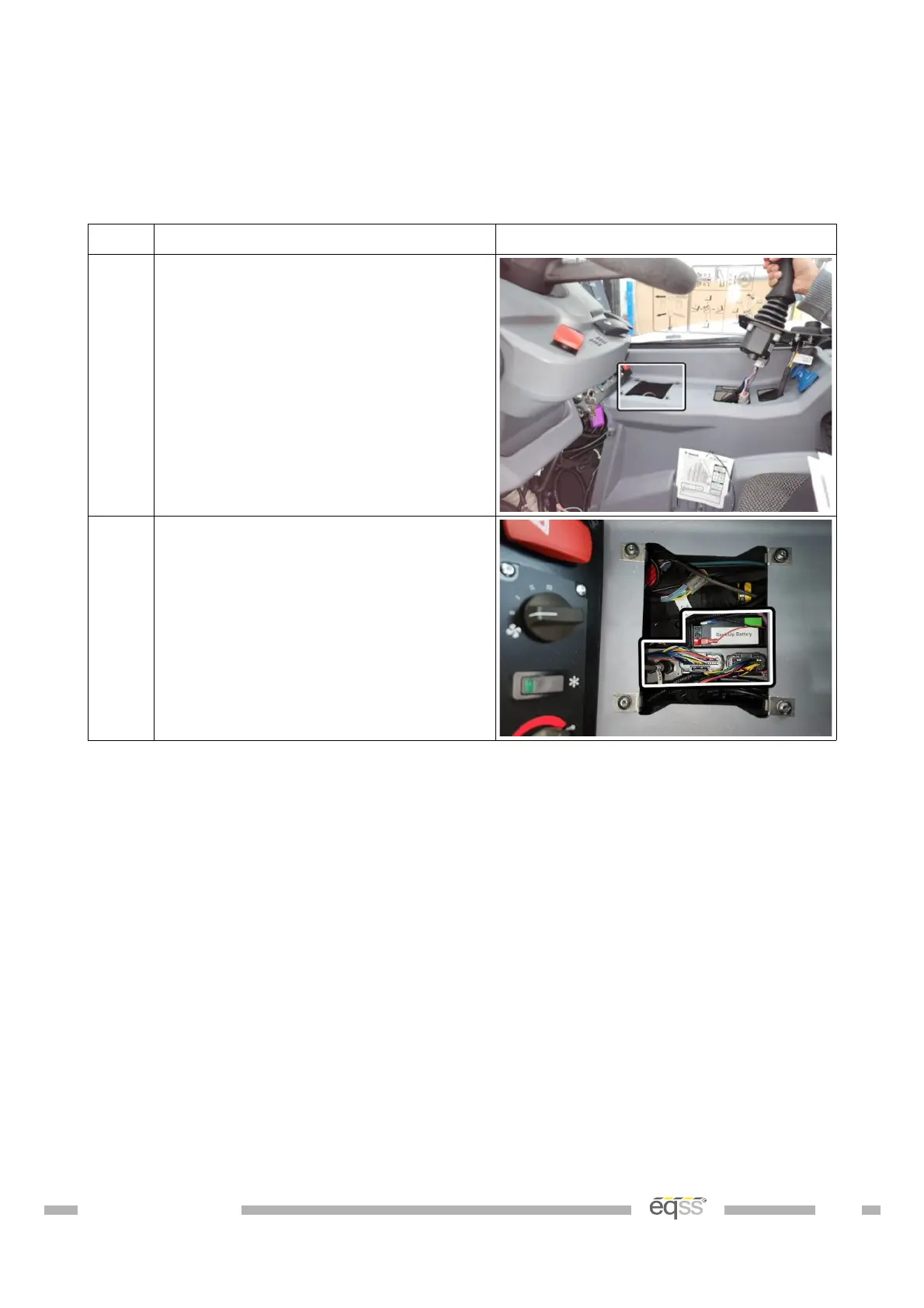

Step Description Diagram
1. Install the CCIM and backup battery
onto the flat plate under the switch
board cover beside the joystick in
the location shown.
2. Secure in place using velcro tape.
Remove the battery and CCIM from
the velcro to allow the connections
to be completed. Reattach to the
velcro in the section Finalisation on
page 42.
Table 13: CCIM Installation
DO001547 VER: 2303241610 34 of 58
