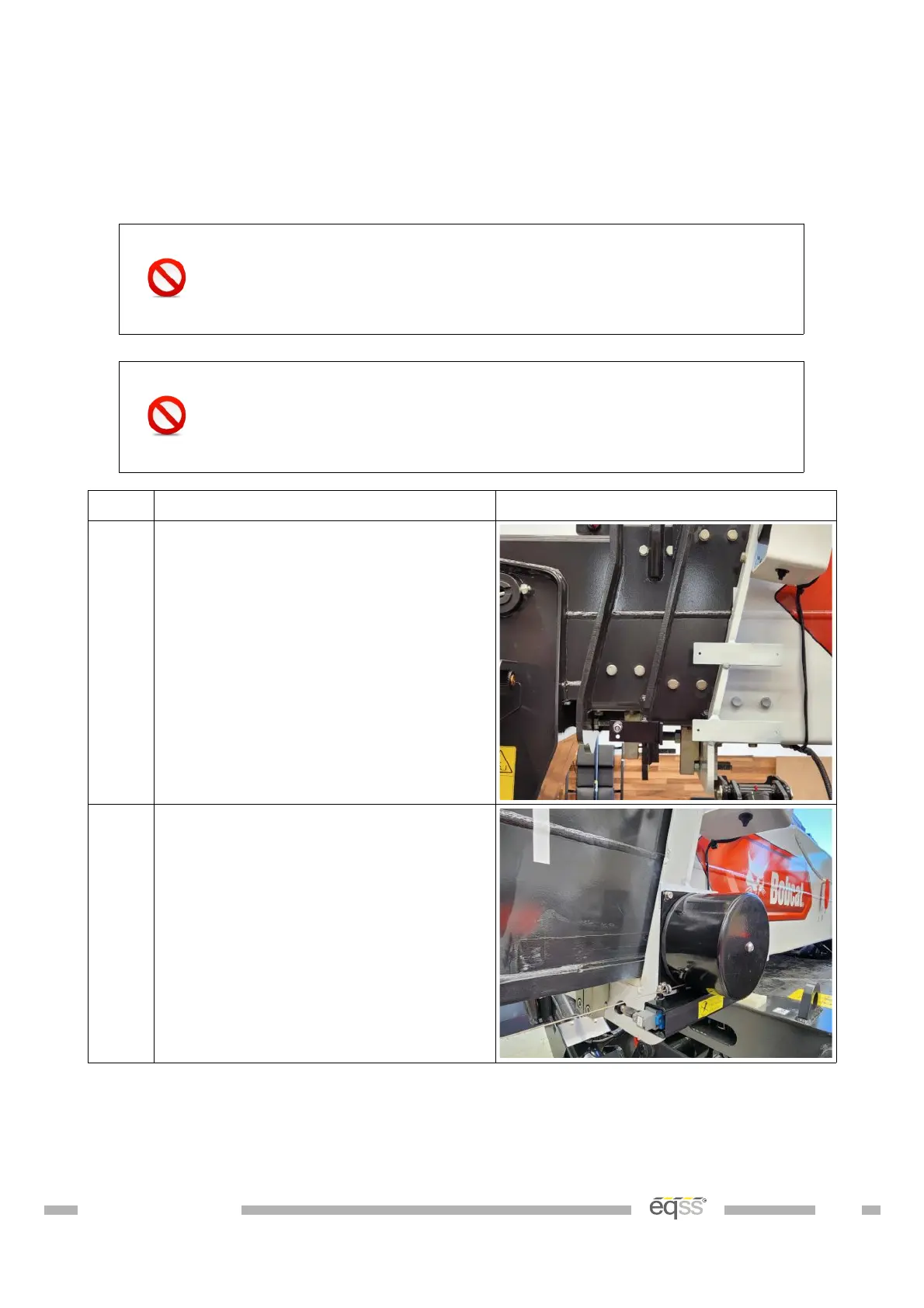

Cable Reeler Installation
The cable reeler is used to measure the boom extension to determine the maximum lifting
capacity.
A false N07 fault can occur if the boom jumps off the stow
switch due to pressurising the hydraulic system and without
operating the boom extension control. Ensure the stow switch
arm is correctly adjusted to prevent this error.
When mounting the cable anchor ensure it is mounted on the
first extendable section not on the last section. If mounted on
the last section the cable reeler will be damaged when the
boom is extended.
Step Description Diagram
1. Weld the cable reeler mounting
brackets to the boom according to
the mounting diagram on page 16.
Note: Attach the cable reeler to the
brackets to use as a welding guide.
Note: After the brackets are welded
they will need to be sealed and
painted to protect against rust.
2. Mount the cable reeler to the
mounting brackets and secure using
the supplied M6 bolts and washers.
DO001547 VER: 2303241610 13 of 58
