Step Description Diagram

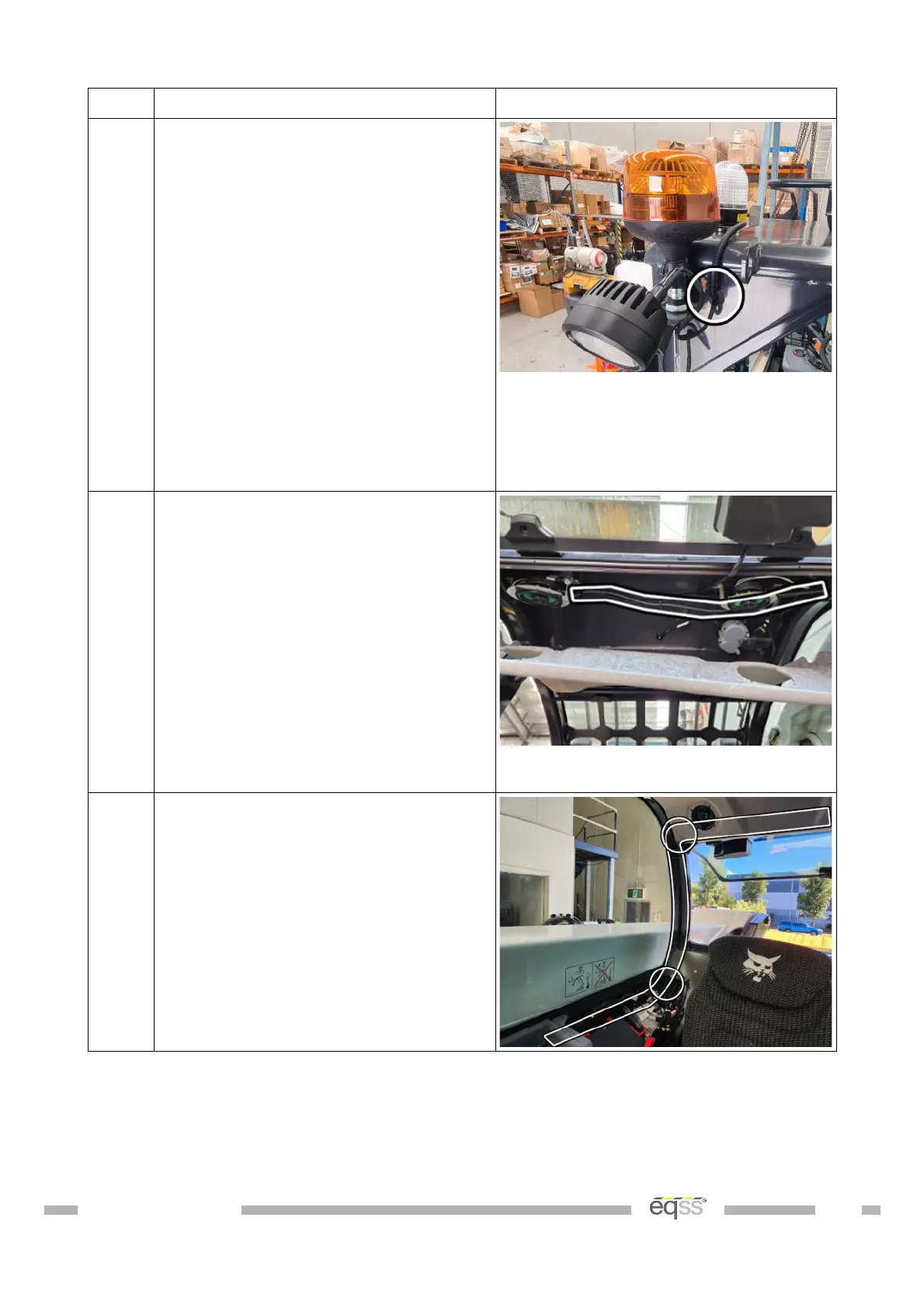

3. Cut the signal light cable
approximately 300 mm from the end
of the M12 connector.
Feed the cable through one of the
existing grommets for the rotating
beacon into the cabin.
Note: As an alternative to cutting the
cable the grommet hole can be
enlarged to fit the M12 connector.
Note: The signal light cable must be
run through an existing grommet
hole. Drilling another hole in the
cabin will invalidate the ROPS/FOPS
protection of the cabin.
4. Run the cable along the same path
as the existing cables under the roof
cover to the hole for the cable
channel down to the chassis.
View from behind the rear left wheel
behind the cabin
5. Run the cable through the cable
channel then out the hole near the
fuse panel location (see the circular
highlights in the adjacent picture),
then follow the existing cable path
towards the dashboard and secure
using cable ties.
Note: Use a cable guide to run the
cable through the cable channel
DO001547 VER: 2303241610 24 of 58
