Ericsson iPECS LIP-8002E - LIP-8040 E Gigabit Phone Installation

LIP-8040E Gigabit Phone User Guide
3

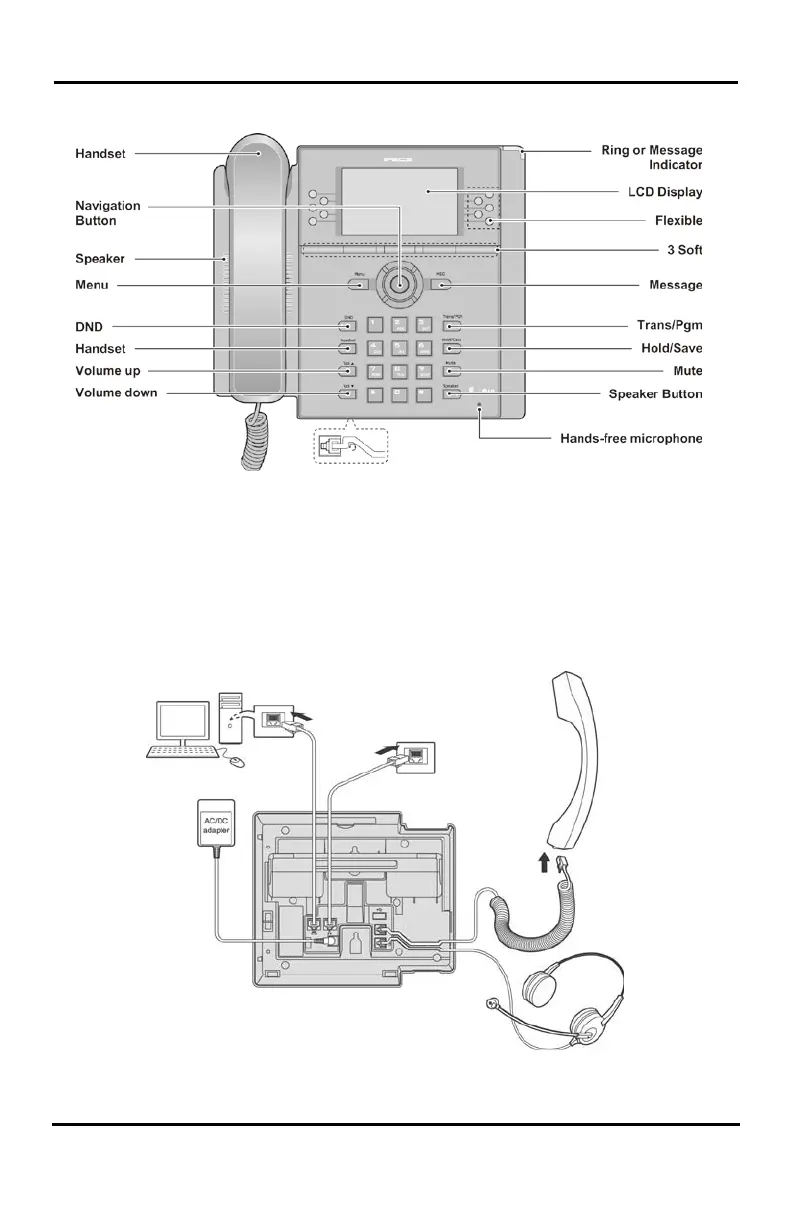

LIP-8040E Gigabit Phone Diagram
1.5 LIP-8040E Gigabit Phone Installation
The phone handset is attached as shown (A). The LIP-
8040E has 2 RJ-45 and 10/100 Base-T LAN connection
ports (shown). One port is for connecting to the LAN (D),
and the other can be connected to a desktop data
device or PC (B), or another LAN interface terminal.
LIP-8040E Gigabit Phone Connections
(A)
(B)
(D)
(C)
