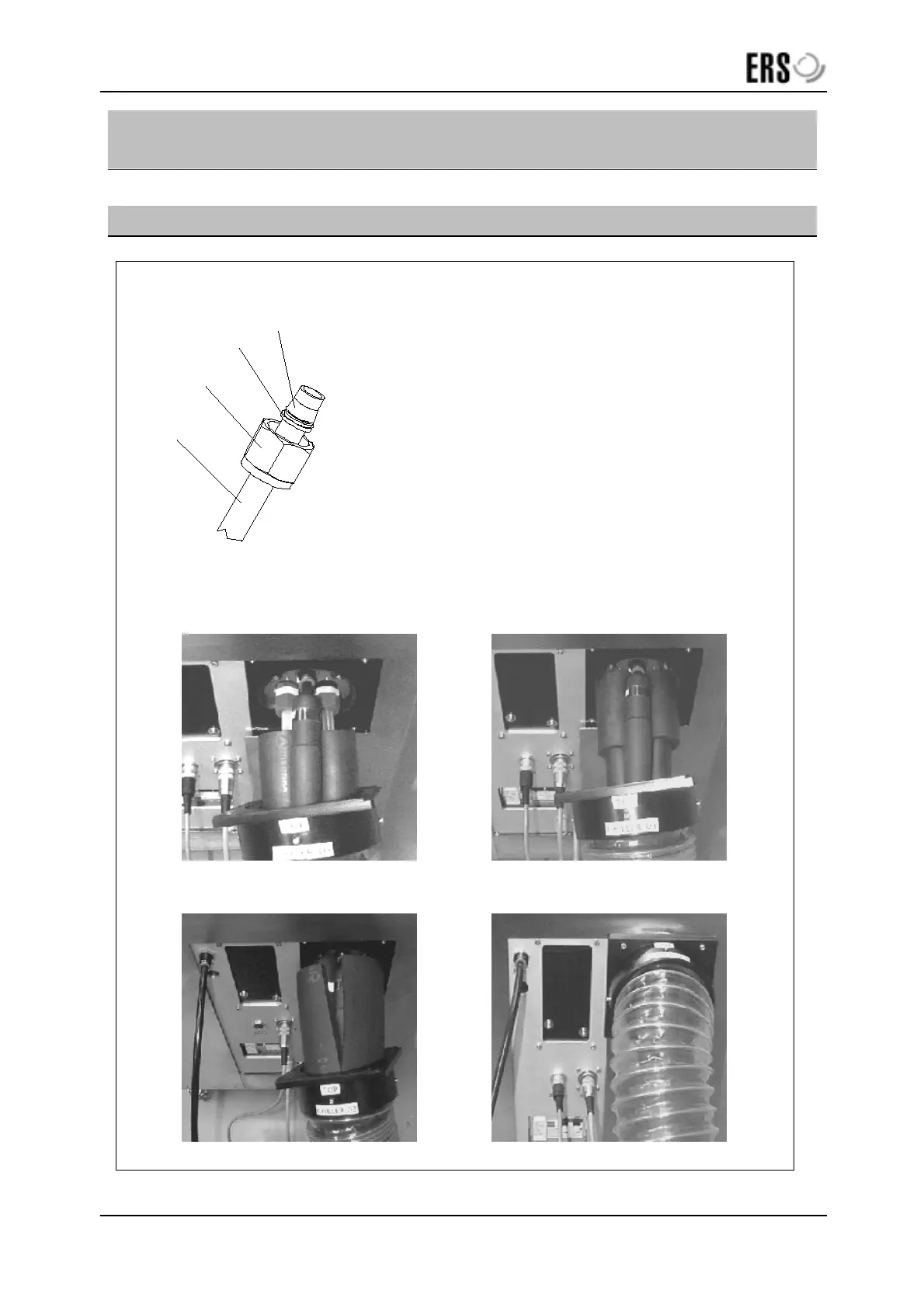

5.6 Assembly of the tubes between Chiller 03 and

Probe Station

5.6.1 Installation of tubes at Chiller 03

STEP4

ACM209

STEP5

STEP3

ACM210

STEP2

P2 P3

Part A

Part C ACM325

Part B

Tube

STEP1: make sure that part C ACM325

is mounted

STEP2: connect the tubes P1 -P3 with

plugs P2 - P4 at Chiller03

STEP3 Cover the connector parts with

isolation parts ACM210

STEP4 Cover the complet tube unit with

isolation part ACM209

STEP5 fix the tube AC051 with 4x M4x16

screws to Chiller03

theconnectormustbeinthecorrect

orientation

STEP1
