ERS AirCool plus - Initial Operation

To Next Page

To Previous Page

ERS

Manual / AirCool

plus

-System / SP72_TA1C8 / -55°C +200°C / Ver. 02.02 24

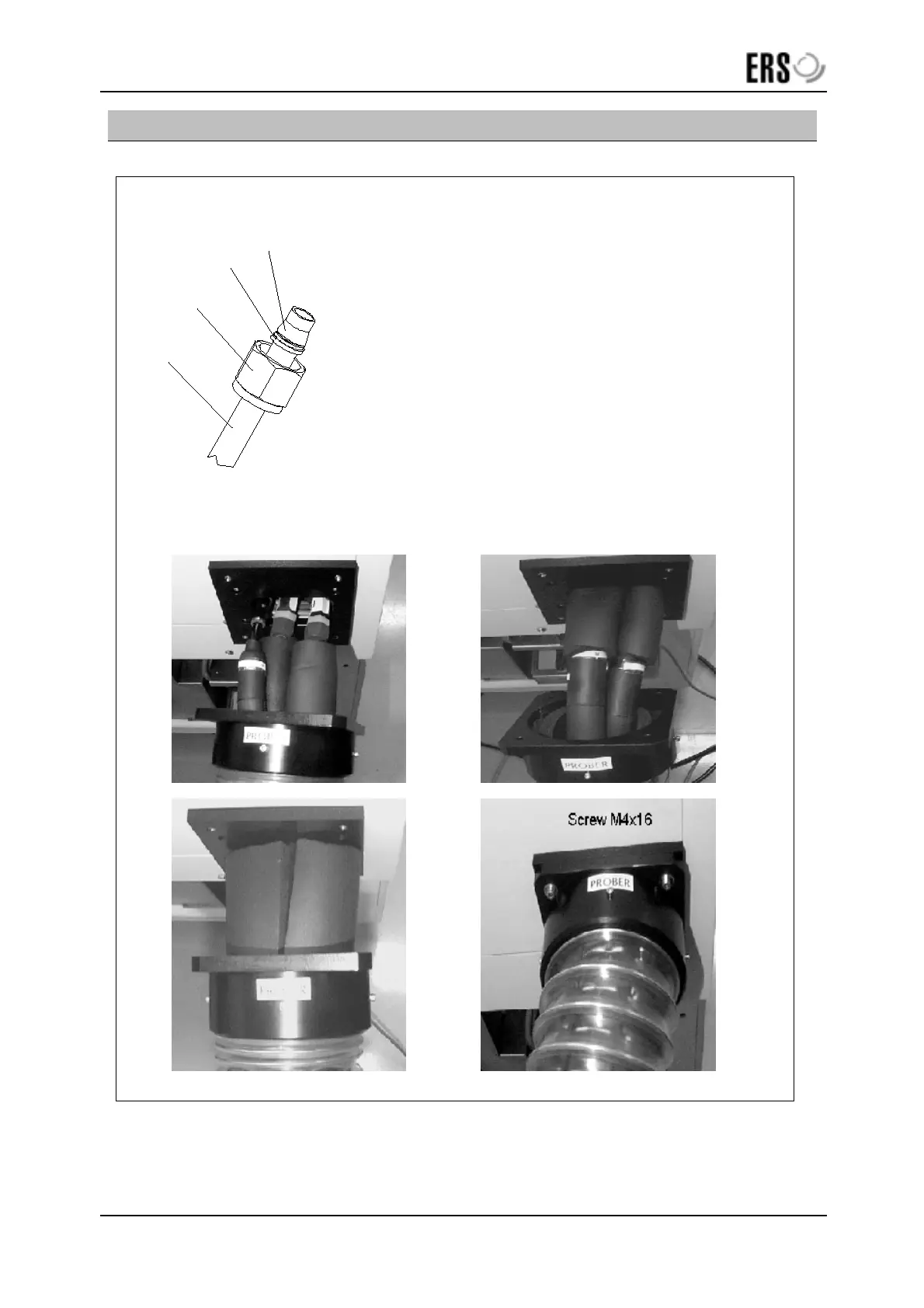

5.6.2 Installation tube at Prober

STEP3

ACM210

STEP2

P5 P7

STEP4

ACM209

STEP5

Part A

Part C ACM325

Part B

Tube

STEP 1: make sure that part C ACM325

is mounted

STEP2: connect the tubes P5 -P7 with

plugs P1 - P3 at Chiller03

STEP3 Cover the connector parts with

isolation parts ACM210

STEP4 Cover the complet tube unit with

isolation part ACM209

STEP5 fix the tube AC051 with 4x M4x16

screws to Prober

STEP1
