INSTALLATION AND CONNECTIONS
0740 801 028
- 17 -
© ESAB AB 2017
Connection for Flux/Gas valve
There is a relay output for steering a flux or
gas valve.
The internal relay is rated for max 8A/250
VAC. Named “Gas/Flux” in the menues.
• Connect to terminal block X1 at 17 and
18.

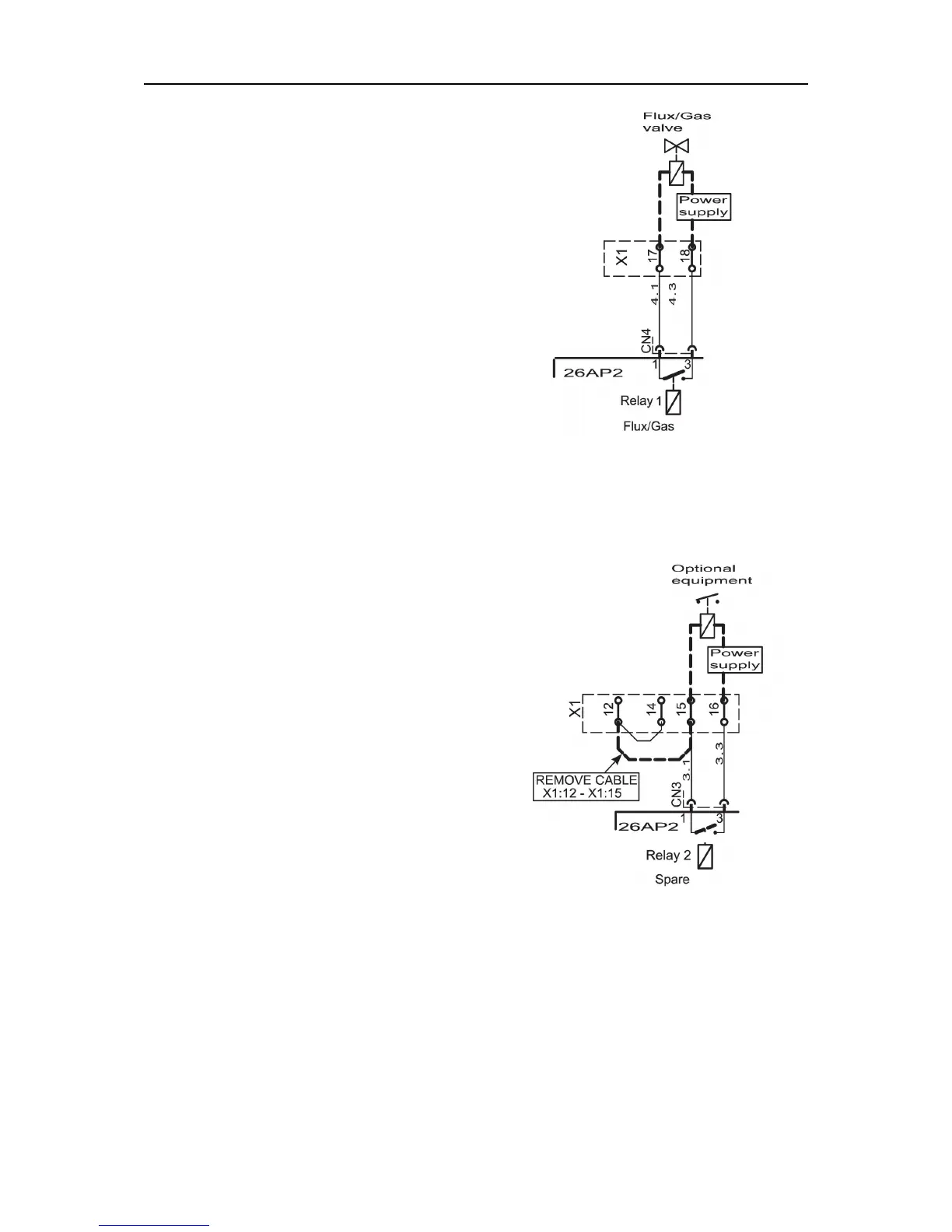

Example, connection of flux/gas valve
Connection optional equipment
Manufactured before serial no.
921-010-xxxx
There is a relay output for steering optional
equipment or ON/OFF of the laserlamp.
The internal relay is rated for max 8A/250
VAC. Named “Relay 2” in the menues.
• Connect optional equipment to terminal
block X1 at 15 and 16.
Manufactured after serial no. 921-010-xxxx
The internal relay is rated for max 8A/250
VAC. Named “Relay 2” in the menues.
When shipped from the factory the relay is
connected for ON/OFF of the laserlamp.
When connecting optional equipment the
power connection to the laserlamp must be
disconnected.
• Disconnect the cable between X1:12 and
X1:15
• Connect optional equipment to terminal
block X1 at 15 and 16.
Example, connection of optional equipment
