INSTALLATION AND CONNECTIONS
0740 801 028
- 18 -
© ESAB AB 2017
Laser lamp supply 5 V
NOTE!
Not recommended circuit! Change to
24 V circuit, see below.
Manufactured before serial no.
921-010-xxxx
Power supply for light. Output 5 V.
• Connect to terminal block X1 at 19 (+5
V).
• Connect to terminal block X1 at 20 (0 V).

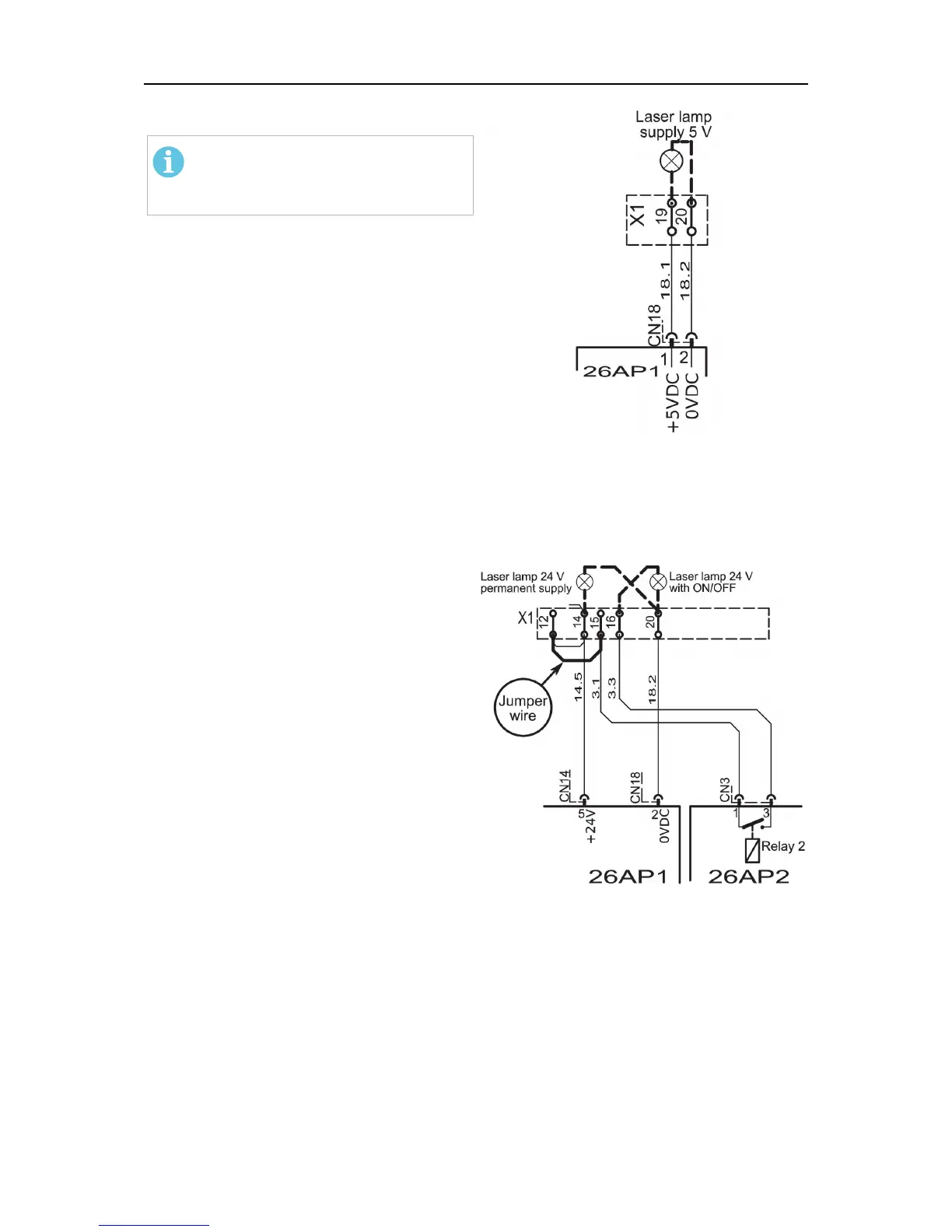

Connection for 5 V laser lamp
Laser lamp supply 24 V
Power supply for light. Output is 24 V with a
max current of 80mA.
With continuous power
• Connect to terminal block X1 at 14
(+24V).
• Connect to terminal block X1 at 20 (0V).
With ON/OFF function
Manufactured before serial no.
921-010-xxxx
With this configuration, ON/OFF of the light is
handled via the menues of the unit. Use the
soft button called “Relay 2”.
• Connect to terminal block X1 at 16
(+24V).
• Connect to terminal block X1 at 20 (0V).
• Insert a jumper wire from X1:12 to X1:15.
Manufactured after serial no. 921-010-xxxx
With this configuration ON/OFF of the light is
handled via the menues of the unit. Use the
soft button called “Relay 2”.
• Connect to terminal block X1 at 16
(+24V).
• Connect to terminal block X1 at 20 (0V).



Connection for 24 V laser lamp
