B3 Hearth
A Hearth is not required.
B4 Cavity Base
This appliance MUST be fully supported on its base, over the entire area of the
underside of the appliance. The base must also be level and strong enough to
support the total product weight, which is approximately 150kg.

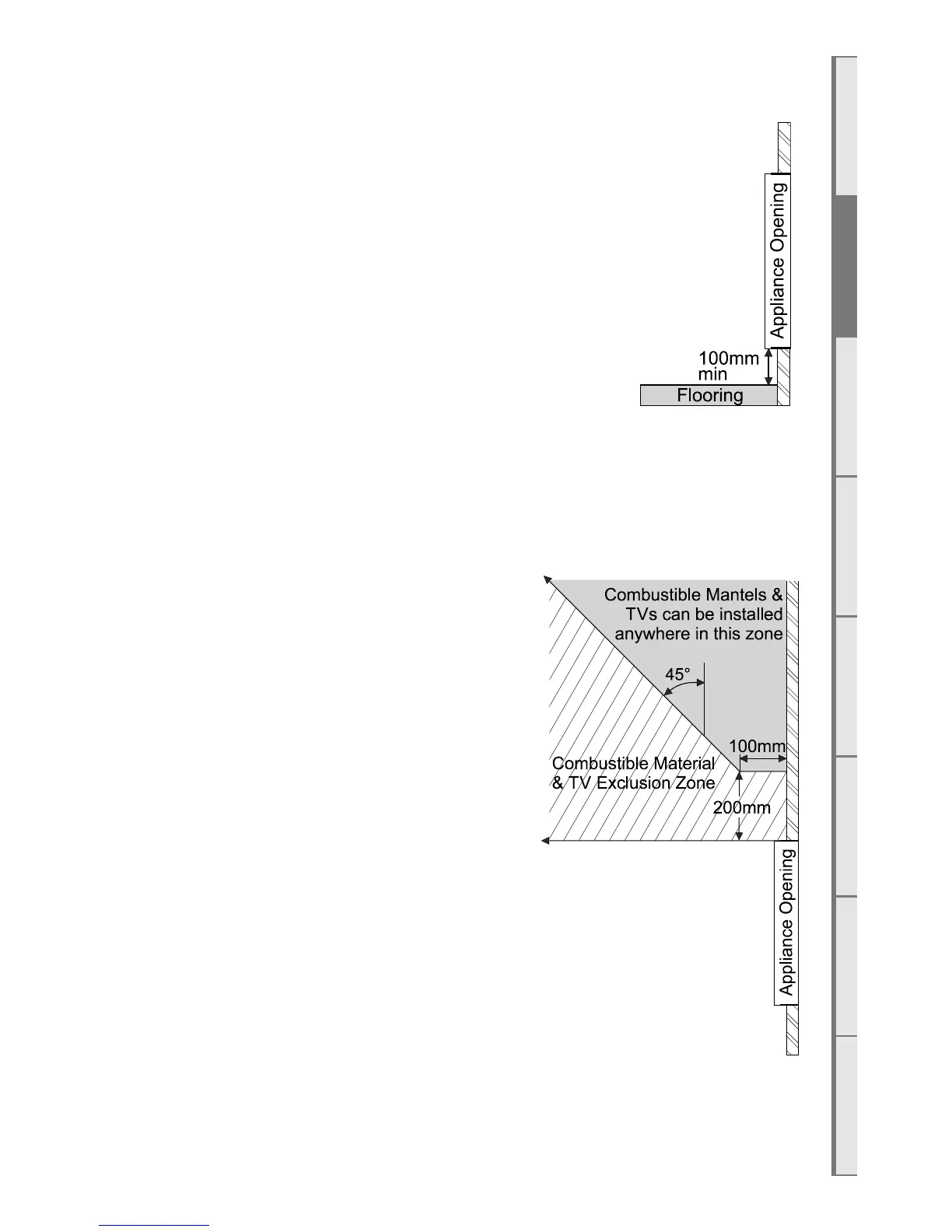

The fireplace can be recessed into the ground but must maintain clearances
detailed in the diagram shown right for any combustible flooring materials.
B5 Wall lining
Only after all applicable sections up to section F5 have been completed, can you commence with the
final wall linings detailed in section F6.
Wall lining cutout dimensions around the glass must be adhered to.
Please refer to section F6 for wall finishing dimensions surrounding glass.
B6 Television & Mantel Clearances
Television
The diagram (shown right) shows the recommended minimum
clearances for the location of any electrical equipment (such as
Plasma TV, LCD TV or home theatre) above a DS1400 gas fire.
A mantel/recess is not required to comply with our recommen-
dation of TV installation.
Note: dimensions from the top edge of the glass frame.
Note: The television clearance recommendations are to be
treated as a suggestion of a suitable installation only. It is
the responsibility of the end user to check the installation
instructions of their electrical appliances to ensure that the
location in relation to the gas fire is suitable. Escea in no way
guarantees or takes responsibility that the recommended
installation suggestion will be suitable for all electrical or home
entertainment appliances.
Mantel
Please refer to the diagram (shown right). Mantels or protruding
ledges above the heater must not be installed lower than the
dimension shown.
Note: dimension from the top edge of the glass frame.
