D3 Gas Pipe Sizing
Gas pipe should be sized as per the requirements of AS/NZS 5601.1. The pipe sizing must be sucient
to deliver the following volume of gas to the heater with all other gas appliances in the home running at
the same time:
Maximum DS1400 Gas Consumption = 40MJ/hr
D4 Gas Pipe Position

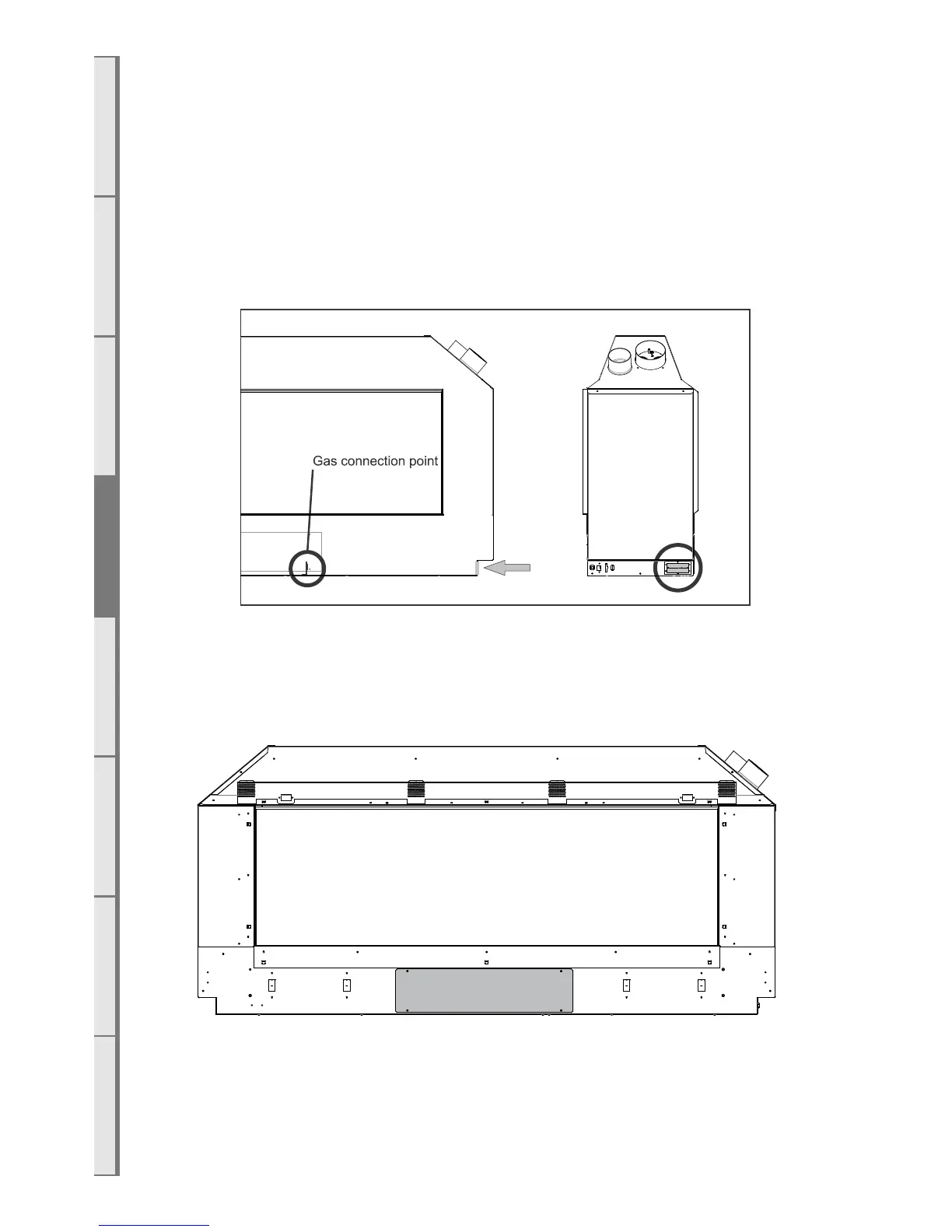

The gas connection is inside the appliance and is ½” male BSP on the lower right of the appliance as
shown below. Access is through the silicone grommet circled below on the RH side of the chassis.
Access for connecting the gas supply to the gas connection point (shown in the diagram above) should
be through the access hatches located on the front and back of the appliance (the front as shaded in
the diagram below).
