Finishing the Installation
F1 Coal, Crystallite or Driftwood Fuelbed Installation
If using the crystalight, coal, or driftwood fuel beds, first place all the Crystallite/Coal
pieces in a single layer atop the Burners and Fuelbed Tray. Cover the entire area except for
the pilot shield, ensuring coverage right up to both glass windows and rear of firebox for
single sided.
If the Driftwood fuelbed style has been chosen, follow the above directions for placing
the Crystallite and then place the Driftwood pieces randomly atop the Crystallite layer.
Ensure the wood pieces are spread out across evenly and not over the pilot assembly.
Do not heap or mound any fuelbed.
F2 Log and Woodland Log Fuelbed Retainer Setup
When setting up a log or woodland log fuel bed, you must have the correct retainers present before
assembling the fuel bed. The correct retainers are supplied with the fuel bed packaging.

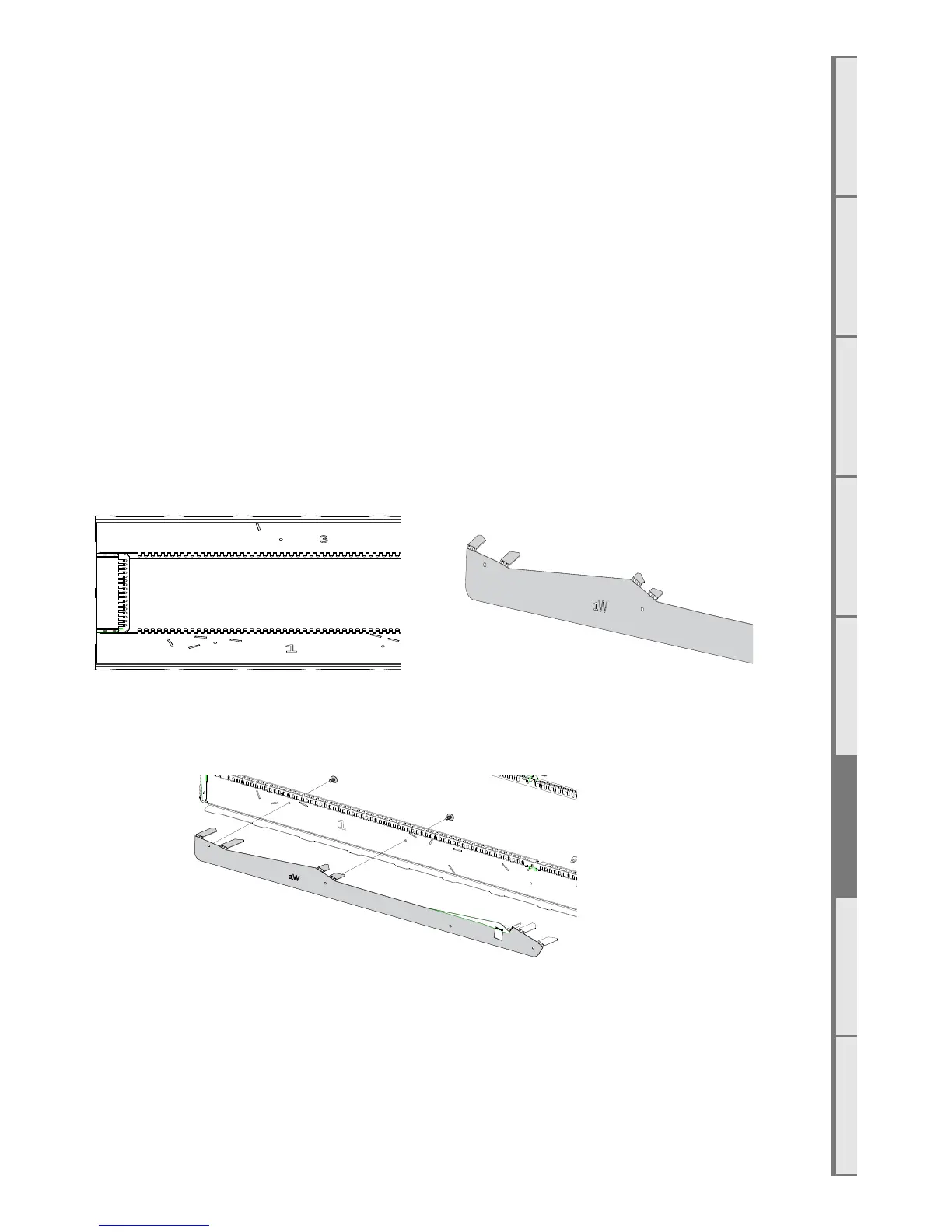

First remove the infill by following section E6. On the UNDERSIDE of the Infill you will see numbers
1 to 4 (see left image below). On your retainers you will see a number and a letter, the number is used
to match with the infill and the letter is fuelbed type i.e. W = Woodland, L = Logs.
Fold ALL the retainer tabs 90° away from you when reading the number and letter on the top face
(above right). Assemble all retainers by feeding the tabs, from the UNDERSIDE (Unpainted) through
the cutouts on the infill and fix in place with screws provided. (see below)
F3 Log Fuelbed Installation
Logs must be located correctly as stated/depicted in this section.
The final layout should replicate the picture shown in Step 3. Place the ember flakes in a single layer
evenly after the logs have been located correctly (excess flakes should NOT be added if one even layer
has been achieved) . The flakes must not cover the pilot or pilot guard.
Note: Improper positioning of any fuelbed media may create carbon build-up and will alter the
unit’s performance. Malfunctioning due to improper fuel media placement will not be covered under
warranty.
Top Face
