38

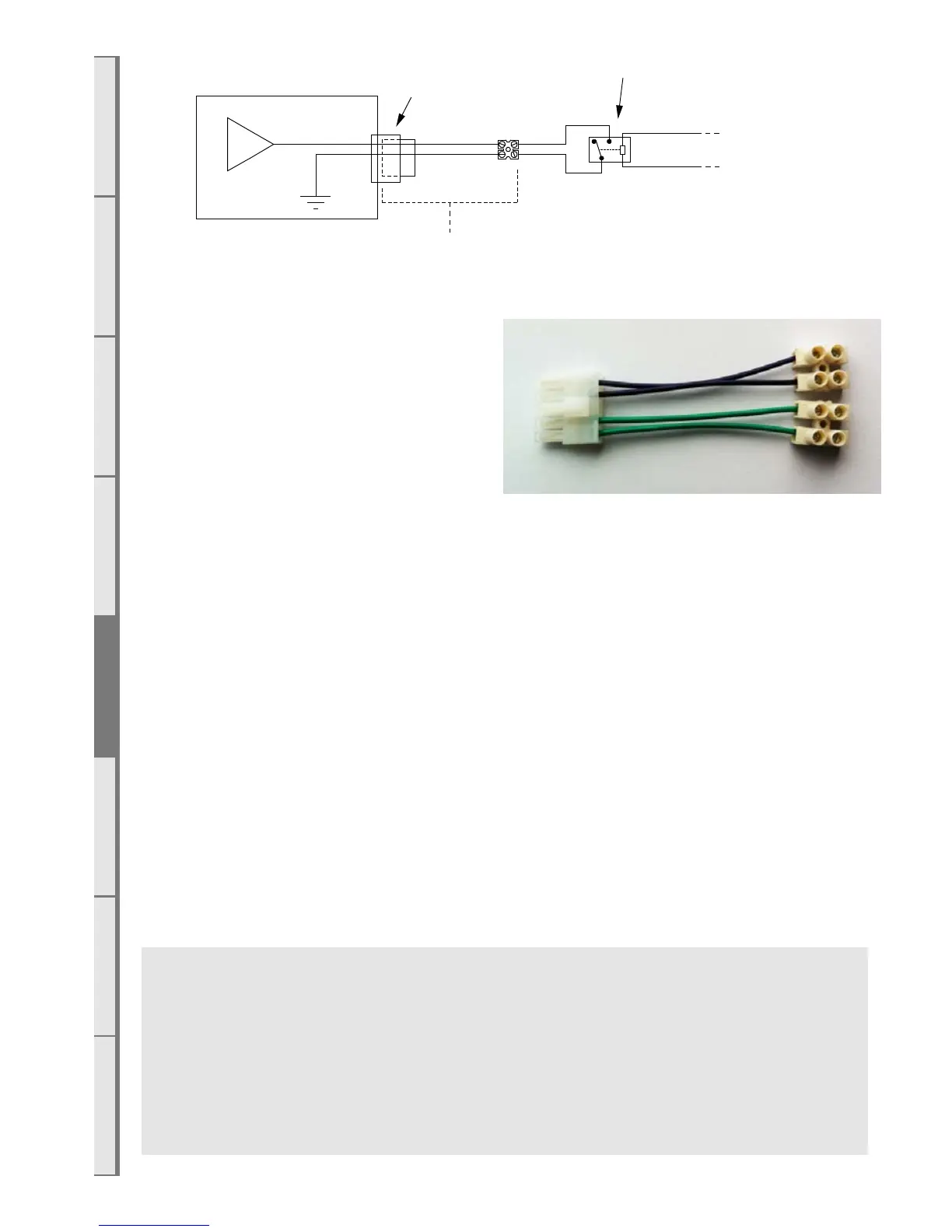

Note: you will need to match the relay coil voltage with the voltage from your automaton system.
The home automation connection can be found in
your fireplace accessory pack and is shown to the
right.
This connects to the fireplace via the lower RH
outside panel of the fireplace, next to the primary
network cable access point, as shown in section
D3.
Home Automation Operation:
Relay closed
The fireplace will start in a medium setting until it receives a signal from the remote control unit (up to
4 minutes). Once the remote has communicated with the fireplace it will turn on and begin operating
the fireplace thermostatically. The remote will use whatever temperature the user has previously set
and cannot be altered by the home automation system. The fireplace will continue to operate while the
relay is closed.
Note: If the fireplace cannot communicate with the remote controller within 10 minutes of the relay
contact closure then the fireplace will shut down and return to standby. The remote controller is
required to be operating within range of the fireplace for its safe operation.
Relay open
If the fireplace was operating with a closed relay then upon opening the relay contacts the fireplace will
shut down and return the remote controller to its standby mode when it next updates (up to 4 min-
utes). While the relay is open the fireplace will be in standby mode and available for manual operation
by the user.
END OF SECTION E
By the end of this section, you should have:
□ The appliance installed in the cavity
□ The appliance fixed to the cavity base and wall lining
□ The appliance plugged into a mains electricity supply
□ The appliance gas supply attached and pressure tested with all other gas appliances running
µ
Terminal block
Connector
on fireplace
Fireplace
Connector and terminal
