Escea DS1400 - Flue System Installation

B
A C D E F G SERVICE
12
C
Installing the Flue
C1 Flue Configuration (If less than 4m flue length is required):
If your flue system is less than 4m long (as shown in diagrams below), then a simple aluminium flexible
flue is required. If you wish to install a longer flue run, up to 12m, see section C2.

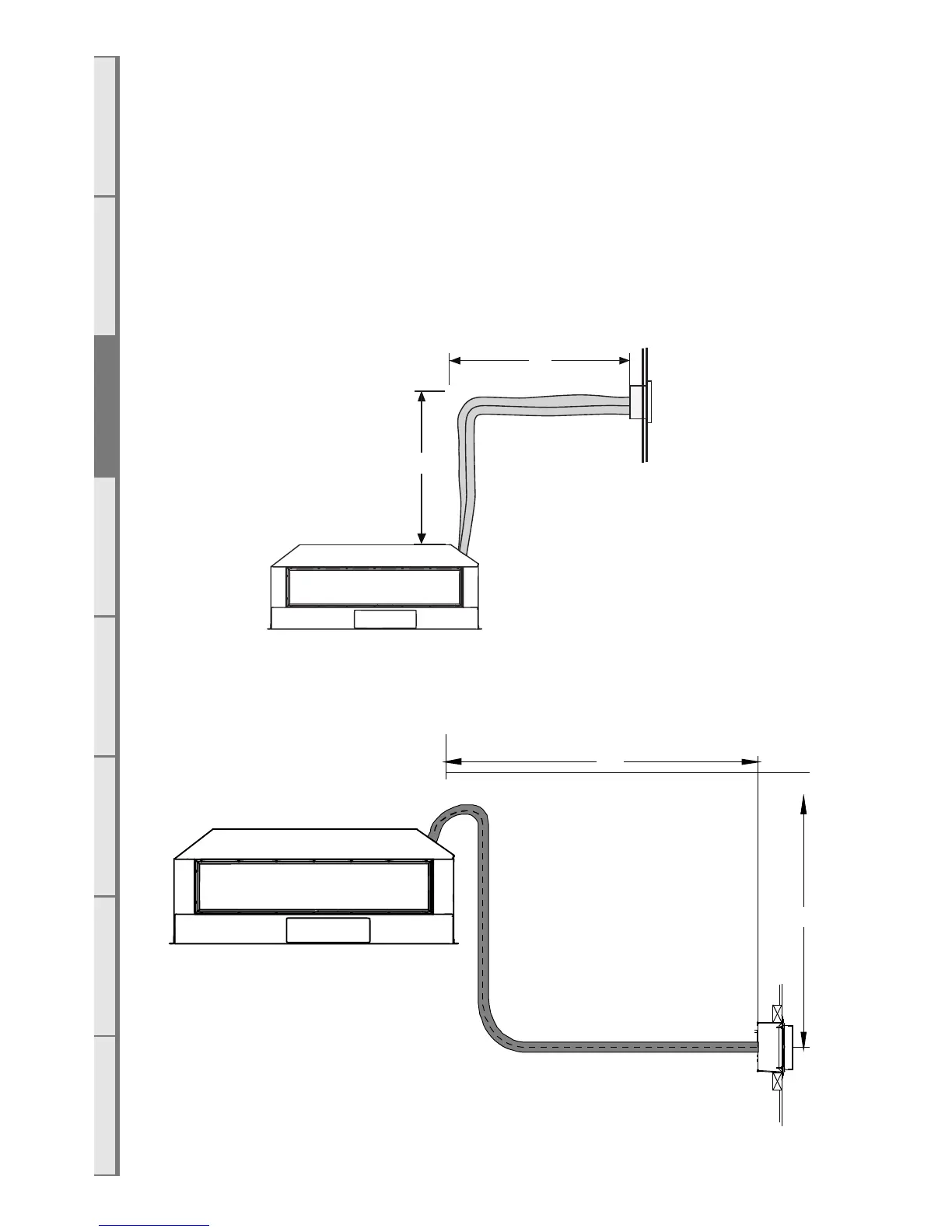

Horizontally Terminated: (utilises the escea horizontal power flue enclosure kit)
The horizontal oset of the terminal can be any amount up to the total flue length listed below. Please
consult with Escea’s technical sta if your intended flue configuration steps outside of the bounds of
the flue configurations shown below.
NOTE: When flueing above fire, pipe must slope towards fire - NOT towards terminal. Also when
flueing below fire, pipe must slope towards terminal - NOT towards the fire.
X
Y
X + Y Maximum = 4m
Y Maximum = 1.5m
Y Minimum = 0m
X Maximum = 4m
X Minimum = 0m
X + Y Minimum = 0.4m
4m MAX
X
Y
X + Y = 4m MAX
= 0.4m MIN
1.2m Co-axial Flue
