E4 Front to Back Conversion
1. Follow section E5 and E6 to remove the glass, infill, and burners.
2. Remove the rear panels by following steps 2, 3, 4, 6 & 7 from section E3 above.

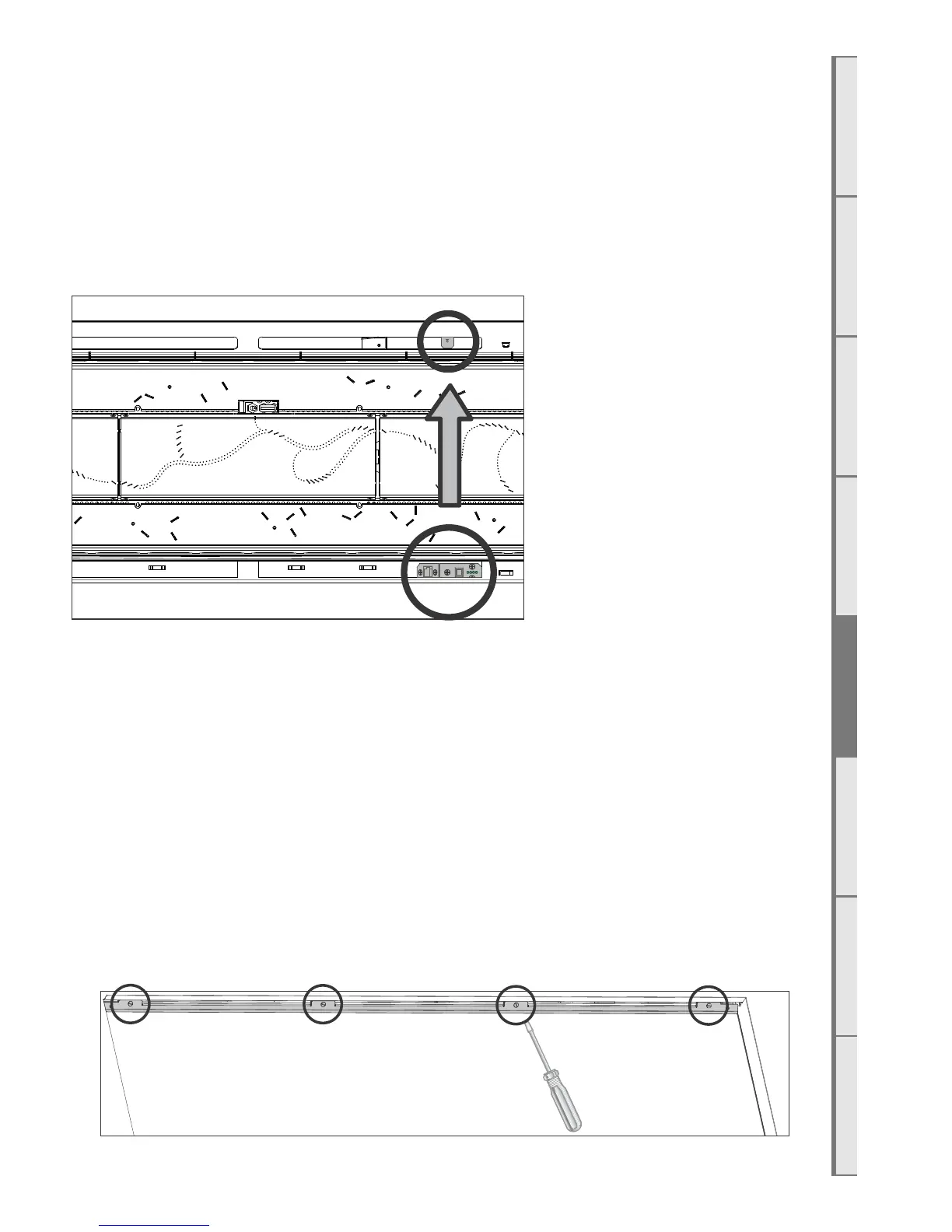

3. Relocate the diagnostic bracket to the opposite side of the appliance by carefully removing the
middle screw and feeding it through to the opposite side of the fire (as shown in the diagram below).
Note: this step must be completed after preparing the other side of the appliance for either a LH to
RH conversion or a double sided conversion.
4. Carefully remove the bracket in step 2 of section E3 and replace the bracket to the other side of
the firebox.
5. Remove the bottom, side and top trim brackets from the front and replace to the rear of the appli-
ance (see steps 9 to 11 fron section E3 for more info).
6. replace all the rear panels (removed in step 2) to the front of the appliance.
7. Using the diagram from step 5 in section E3 above, change the position of the four tabs on the
original front side from closed to open.
E5 Removing (and replacing) the Glass
Remove the glass by unscrewing the four 1/4 turn fasteners located at the top of the glass (shown
in the diagram below) and remove the bracket (shown below shaded grey). Allow the glass to lean
forwards and carefully lift out.
