Note: The wall lining directly above the appliance will get warm and hence may discolour paint finishes
that are susceptible to temperature damage or distort vinyl wall coverings. For durability of finishes and
surfaces you should contact the relevant manufacturer for their specification and avoid materials with
temperature ratings less than 80deg C.

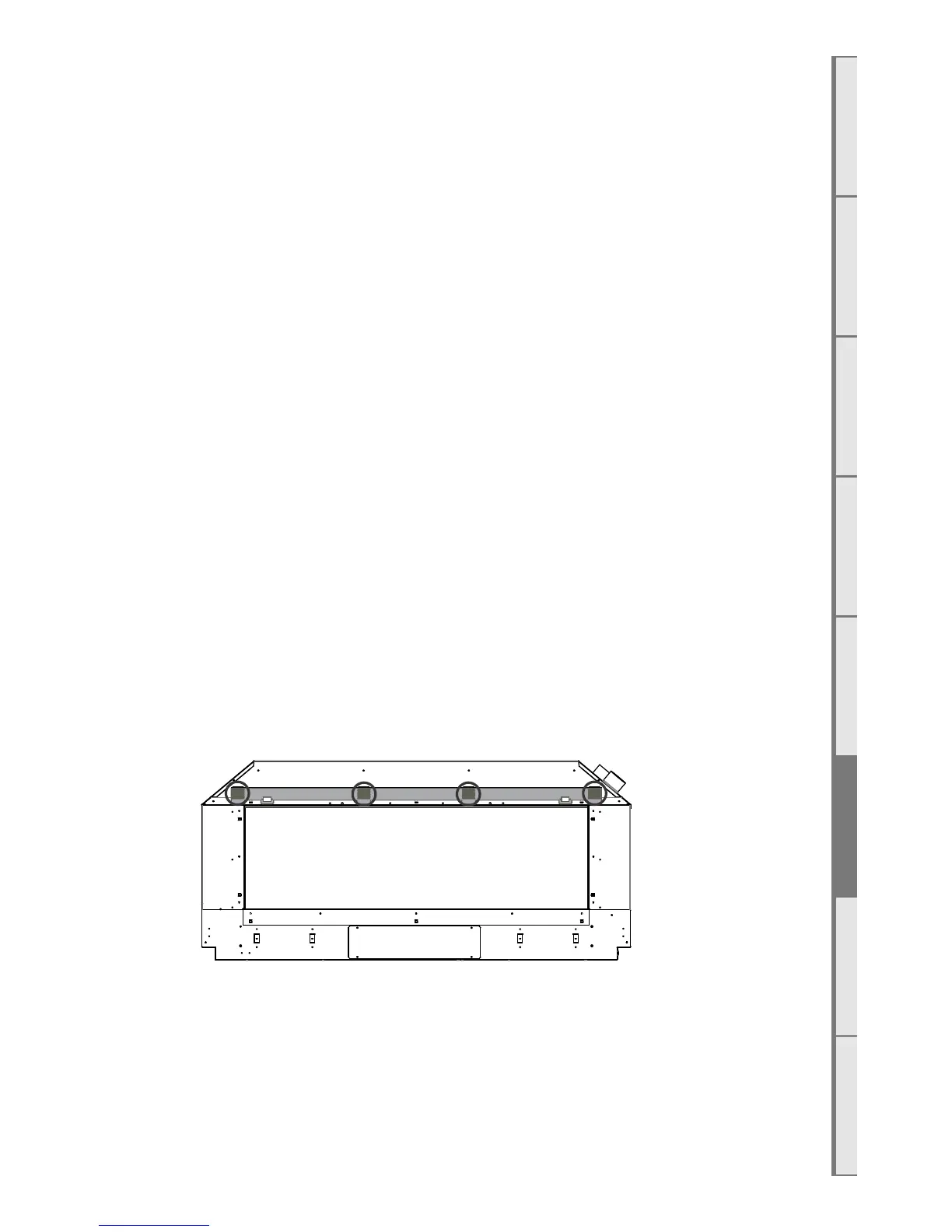

The wall lining can be fixed to the gib fixing bracket (shaded below). There are four areas on the bracket
(circled below) that can be used for fixing screws.
Frameless
If not using a fascia, ensure the edge of the wall lining is finished in a tidy manner (for a nice Gib finish
we recommend Gib Rondo stopping bead).
Note: a 20mm or less wall lining must be used when installing a DS1400 fireplace without a fascia.
For wall linings of a total thickness of 10mm or larger, a “Linear Trim” may be purchased to cover any
exposed wall lining. A 9mm wall lining is recommended for ease of installation.
Bevelled Lite Fascia
If using a (Bevelled Lite) fascia, cutouts will be required in the finished plaster board to allow for the
fascia securing pins to attach to the appliance.
Note: that a 15mm or less wall lining must be used when installing a DS1400 fireplace with a Bevelled
Lite fascia, as this is the maximum distance the Bevelled Lite fascia can sit o the front face of the fire
as shown. For wall linings of a total thickness of 10mm or larger, a “Linear Trim for Bevelled Lite” may
be purchased to cover any exposed wall lining.
Linear Trim
For 10mm-20mm wall linings, an optional “Linear Trim” can be used to cover any unwanted exposed
wall lining and/or act as a slimline fascia.
To Next Page
