F5 Flame Picture

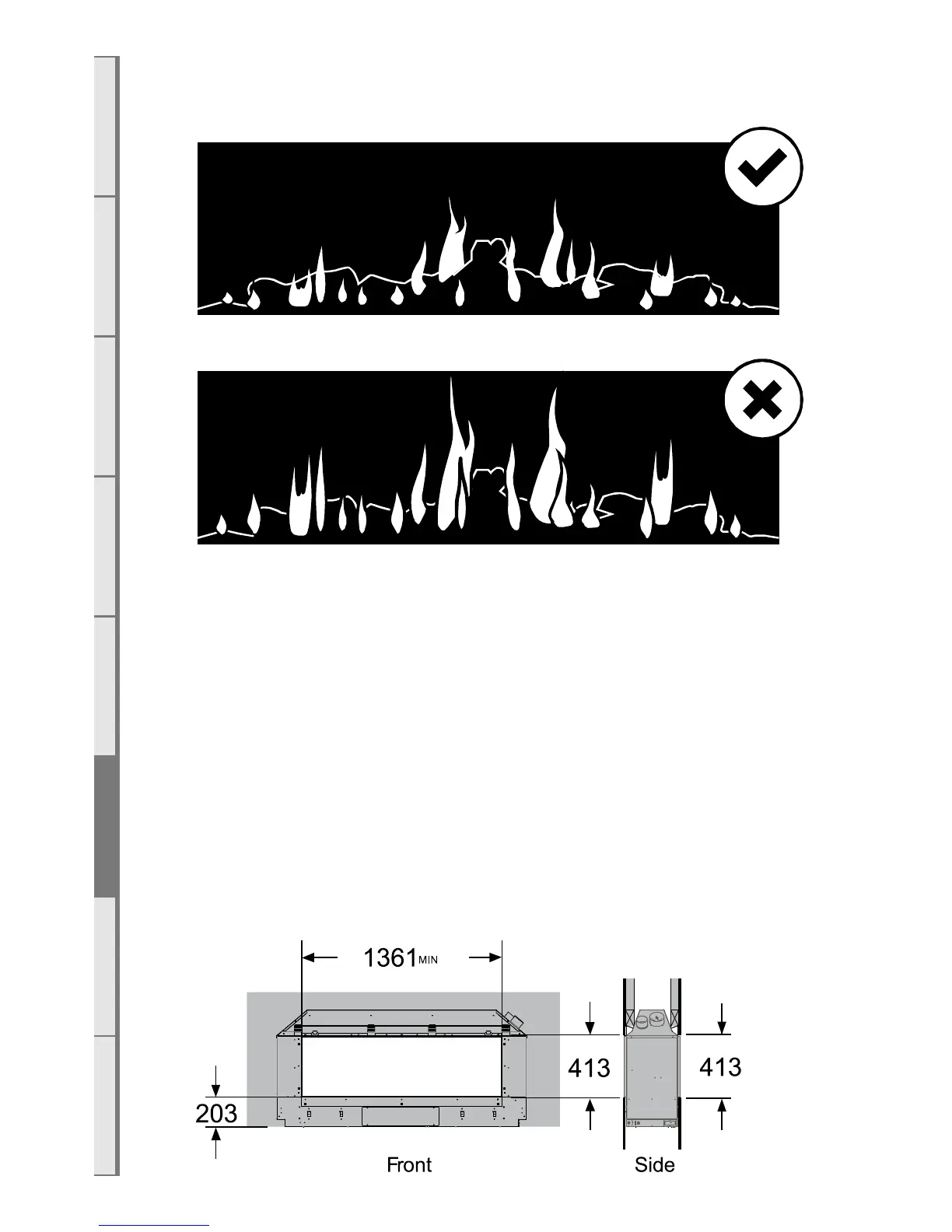

An abnormal flame pattern will look long and stringy and may cause soot to build up inside the firebox.
An abnormal flame pattern will likely be the result of incorrect settings (jet size, burner aeration
collar), you must check these are correct before proceeding. If an abnormal flame pattern is still
present, please contact Escea.
It is the responsibility of the installer to ensure a correct flame pattern.
F6 Wall Linings
Only after all applicable sections before this have been completed, can you commence with the final
wall linings.
The appliance must be installed prior to and behind the finished wall surface. Take into account any
plaster board, tiles or any other finishing surface that may be intended for the finished wall surface.
Wall finishing materials must not encroach upon the minimum cavity clearances given in previous
sections. The wall board that lines the outside of the opening can be normal plaster board and does
not need to be non-combustible. The Plasterboard is to protrude beyond framework as shown in the
following diagram.
Note: The final wall lining must not encroach within the specified dimensions in this section. These
dimensions indicate the opening required in the wall lining.
