19
The Vertically terminated flue kit is intended for use within an accessible roof space or accessible
‘chimney’ construction. Service access must be provided.
Ensure installation complies with relevant building codes and regulations.
Installation the restrictor plate (Internal Vertical Power Flue Only)
Every Vertical Power Flue must have the restrictor plate fitted when installing a DS1400. To do this:
□ Remove the powerflue lid, remove the screw that secures the elbow & then slide the elbow
o.
□ Attach the restrictor centrally over the air inlet
as shown using the two rivets provided.
□ Replace the elbow, replace the screw, and then
replace and secure the lid.

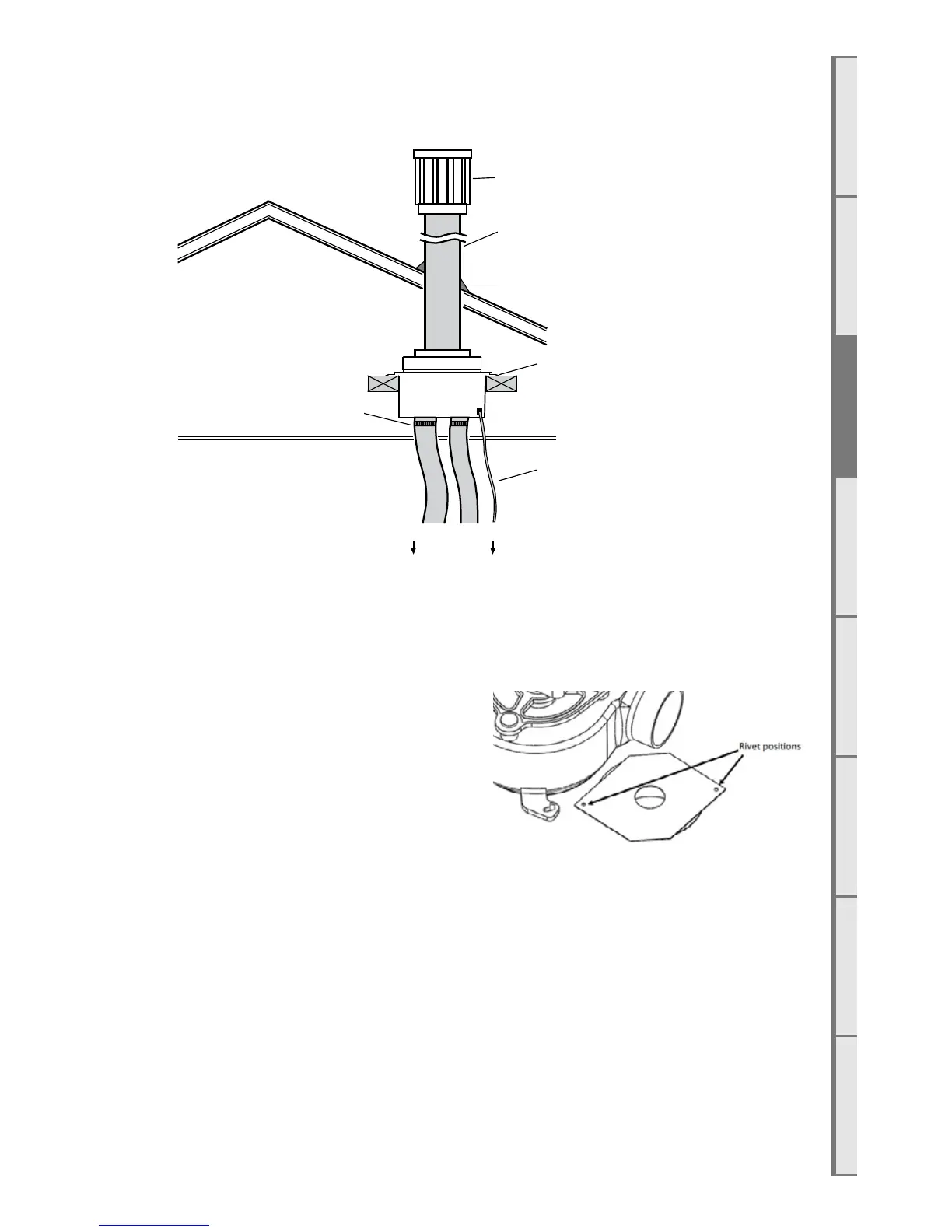

Typical Installation Vertical High WindTerminal
‘Decktite’ or similar flashing
Ø203mm / 8” Co-axial Flue
Hose band clamps
Ø75mmØ100mm
Ensure Power Flue unit
is securely braced using
integral brackets.
Roof Space
Power cord to
appliance
To Next Page
