Fan TCO (60°C)
Access to this TCO can be made by following S9 and removing the left hand fan (not exhaust side).

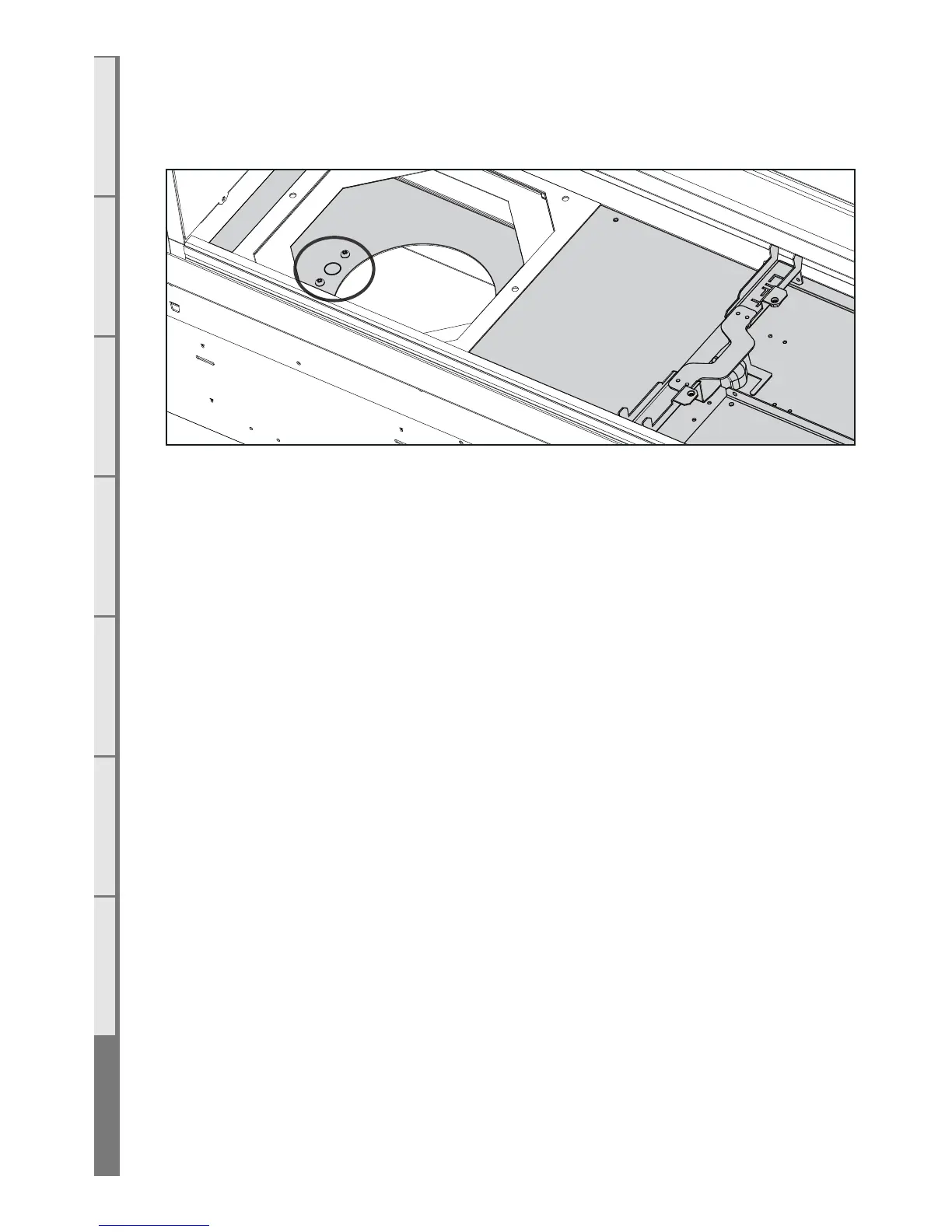

Once the fan is removed you will see the TCO (circled in the diagram below). To remove this, unscrew
the two visible screws and once free remove the two wires connected to the TCO and remove from
chassis.
