Chapter 2 Installation and Wiring SuZhou Eshine Elevator Components Co., Ltd.
―6― YS-K01 Door Controller User Manual
2.2 Terminal Wiring

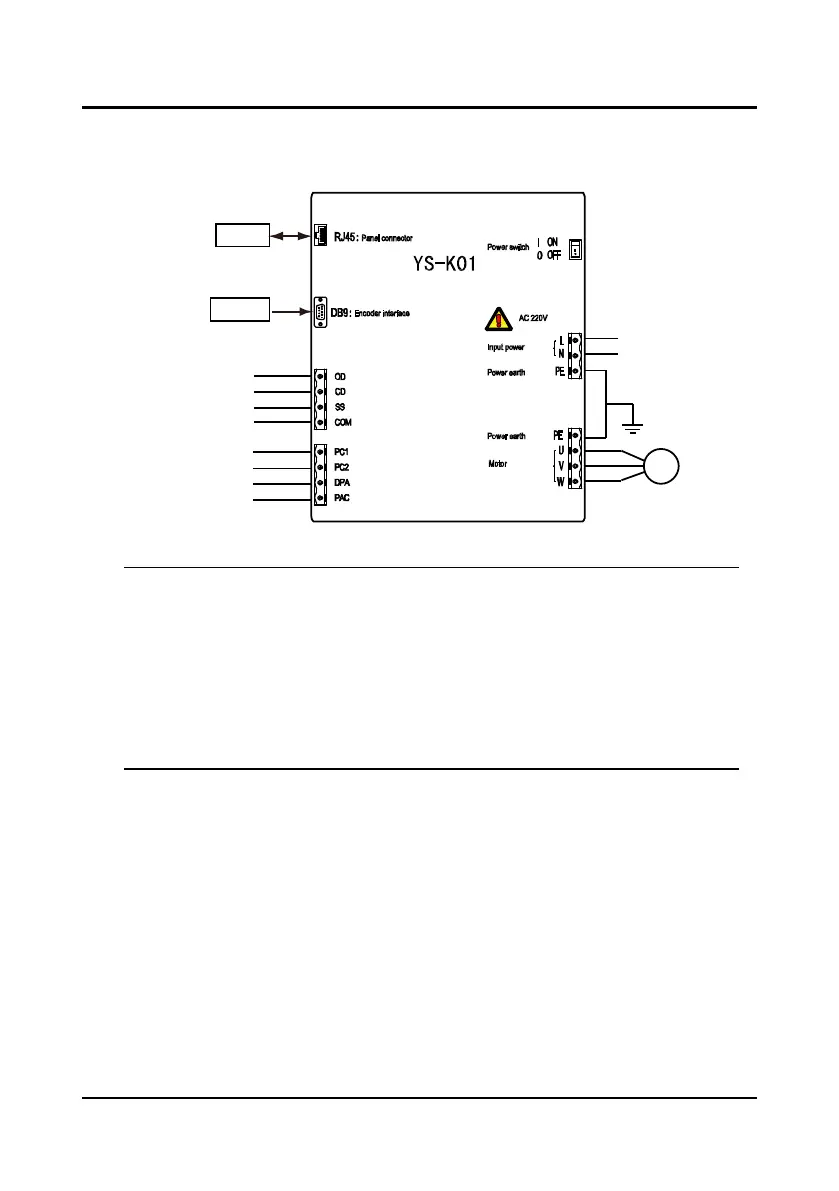

The typical connection of controller is shown as Figure 2-3.
Figure 2-3 Controller connection
Note:
1
．
The input MCCB rating should use 6A single-phase air breaker.
2
．
The input power wiring and the output motor wiring should use copper multi-stranded
cable whose diameter should not be less than 1mm
2
.
3
．
It suggested that reliably connect the PE terminal to the ground via using copper
multi-stranded cable whose diameter should not be less than 2.5mm
2
.
4
．
Control signal input &output wires are suggested to use copper multi-stranded cable
(diameter
≥
0.5 ). On serious interference condition you can use twisted-pair or shielded
cable to improve the control system capacity.
OD command
CD command
Slow speed command
Input signal ground
OD arrival signal
CD arrival signal
Door position signal
Output signal ground
Panel
Encoder
Single-phase
220VAC
PE
M
