Chapter 2 Installation and Wiring SuZhou Eshine Elevator Components Co., Ltd.
―4― YS-K01 Door Controller User Manual

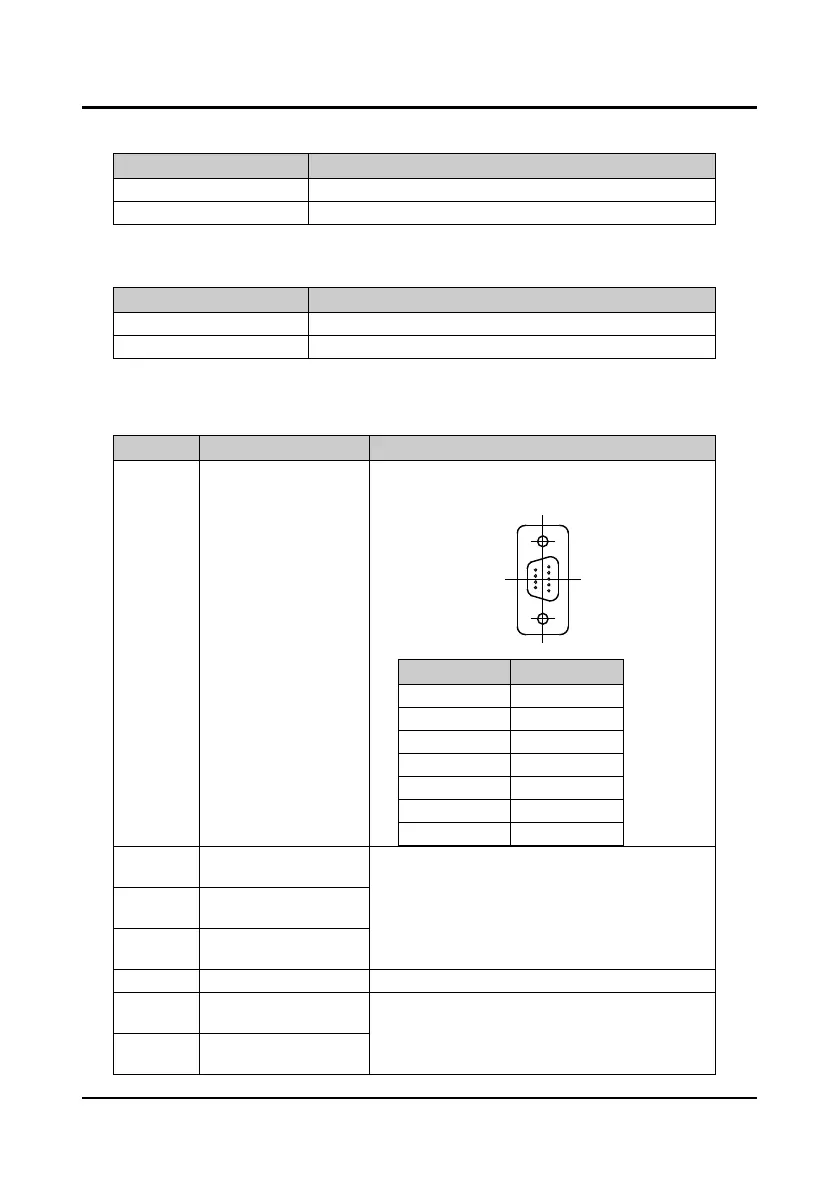

2.1.2 Input Main Circuit Power Terminal Description
Terminal name Function description
L、N Single-phase AC 220V power supply input terminals
PE Protective earth point
2.1.3 Output Main Circuit Power Terminal Description
Terminal name Function description
PE Protective earth point
U、V、W Motor connection terminal
2.1.4 Control Signal Terminal Description
Symbol Terminal name Function description
DB9 Pulse encoder signal
terminal
+24V, the maximum output current is 200mA; and the
maximum pulse frequency is 35kHz
DB9 pin No. Signal identity
1 COM
2 A
3 /Z
5 +24
6 B
7 Z
4、8、9 Reserved
OD Open-door command input
terminal
The ON command is valid when terminal is connected
with COM
The OFF command is invalid when terminal is
disconnected with COM
CD Closed-door command
input terminal
SS Slow speed command
input terminal
COM Input signal ground Isolated from output ground PAC
PC1 Door open arrival signal
output terminal
Contact rating: 125VAC/0.5A or 24VDC/1A
Relay output. It can be set as low or high level via
parameter
DOA,CME normally open; DCA,CME normally open;
PC2 Door close arrival signal
output terminal
1
5
6
9
