SuZhou Eshine Elevator Components Co., Ltd. Chapter 2 Installation and Wiring
YS-K01 Door Controller User Manual ―3―
Note:
1. We need derate value if the controller operation temperature exceeds 40
℃
. The derate
value of the output current of controller shall be 2% for each degree centigrade. Max.
allowed temperature is 50
℃
.
2. Keep ambient temperature among -10
－
+40
℃
. It can improve the controller operation
performance if install at the location with good ventilation or cooling devices.
2.1 Terminal Layout

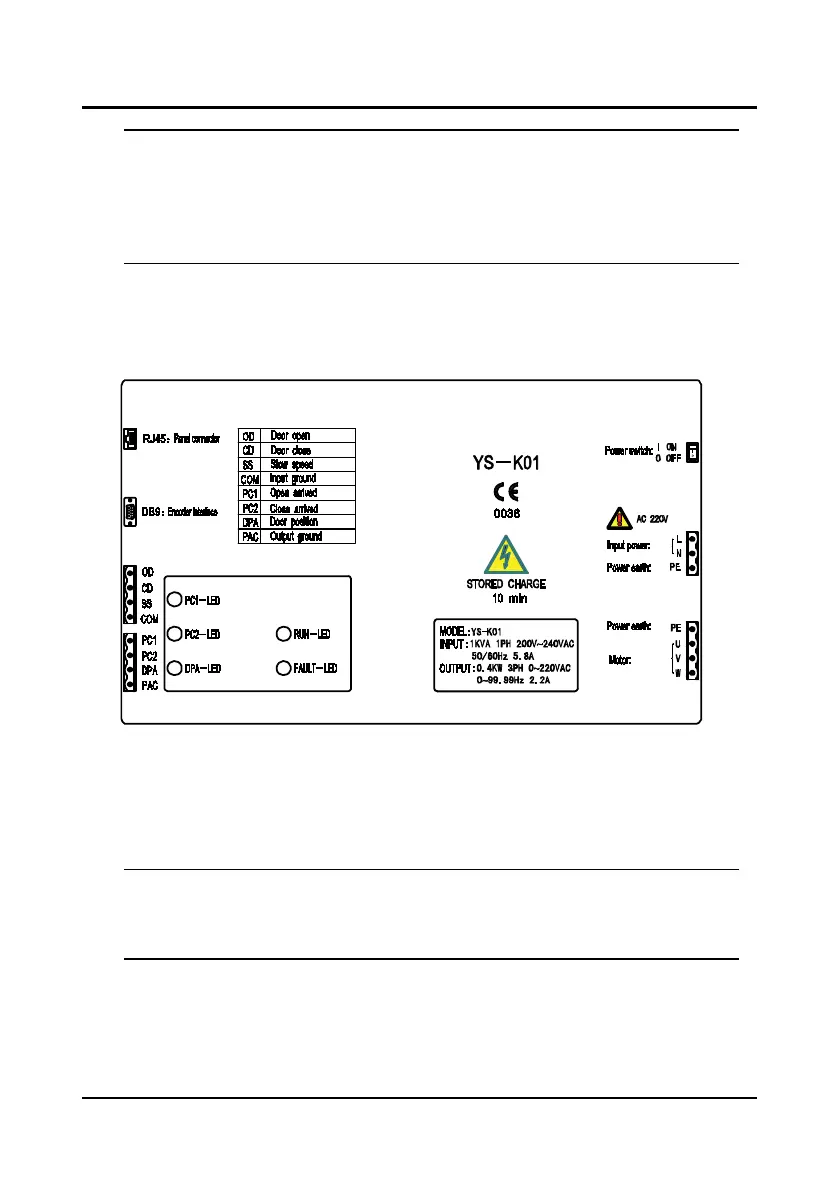

The connection terminal layout of controller is shown as Figure 2-1.
Figure 2-1 Position of terminal
2.1.1 Power Supply Switch
In order to make debugging and maintenance work easily, we have designed a power switch in
the controller which will help engineers to operate elevator easily.
Note:
1. When the power supply of controller is cut down, the input 220V terminal still has high
voltage. Do not touch or plug the 220V terminal until the external power supply cut down, or
there will be danger of shocking.
