ETAS ES930.1 - DI Connection

ETAS Pin Assignment and Accessories
ES930.1 - User Guide 103
14.1.2 "DI" Connection

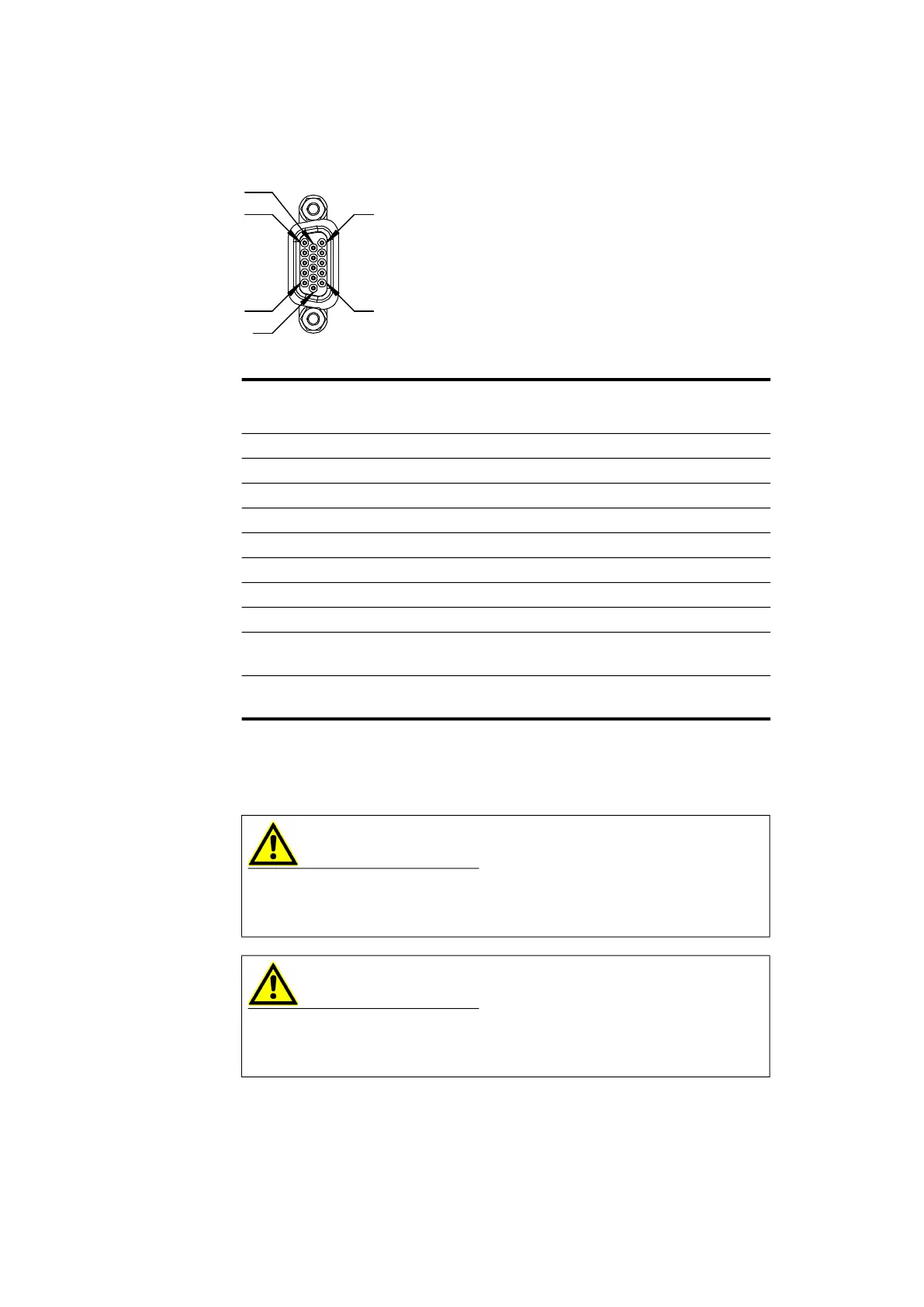

Fig. 14-2 "DI" Connection
A 15-pin high density DSUB socket is installed at the "DI" connection.
An overview of the assignment of the open ends of the CBAV420.1 cable for
use at the "DI" connection is located in chapter
14.2.1 on page 112.
ES930.1 "DI" connection Meaning
Pin Signal
1 DI_CH1 Digital input channel 1
2 DI_CH2 Digital input channel 2
3 DI_CH3 Digital input channel 3
4 DI_CH4 Digital input channel 4
6 DI_CH1_GND Digital input channel 1, ground
*)
7 DI_CH2_GND Digital input channel 2, ground
*)
8 DI_CH3_GND Digital input channel 3, ground
*)
9 DI_CH4_GND Digital input channel 4, ground
*)
5, 10, 11, 12, 13,
14, 15
N.C. Not connected
*)
: common ground
CAUTION
Users who want to fit their own cables for the "DI" connection, must observe
the notes about the design of the CBAV420.1 cable offered by ETAS to avoid
damage to the module (see chapter
14.2.1 on page 112).
CAUTION
Please observe the recommendation for measurement setups with different
ground potentials or with measurement points separated in distance (see
chapter
14.2.1 on page 112).
5
111
15
6
10
