ETAS Digital Input Channels ("DI" Connection)
ES930.1 - User Guide 36

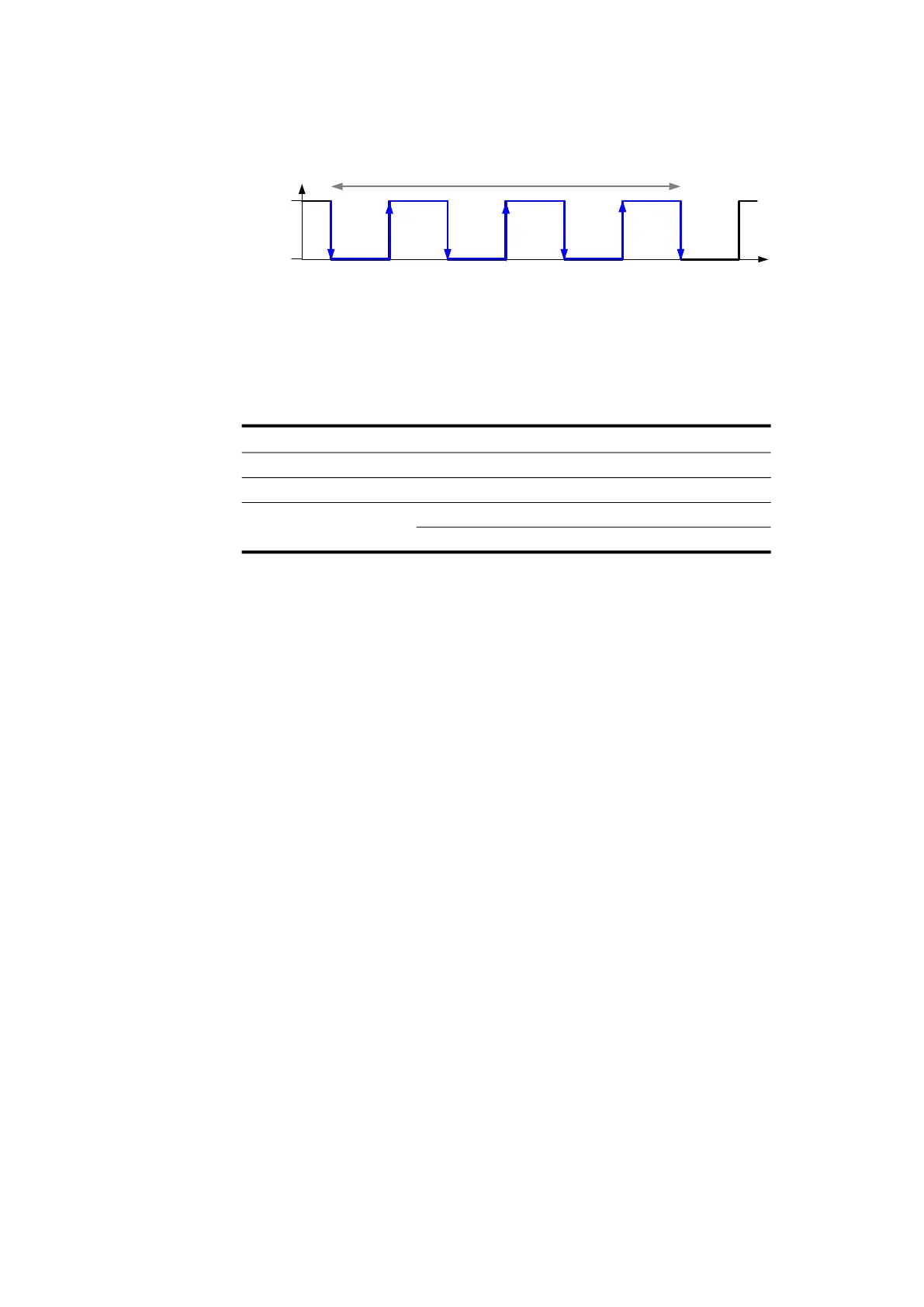

Fig. 5-7 Cycle, starting with an active-inactive Edge and n=3
5.2.2 Overview of measuring Functions
The ES930.1 module can capture digital signals at the four input channels "DI
1" to "DI 4" and analyze them with the help of the following measuring func
-
tions:
All aforementioned signals can be captured simultaneously at all four channels
of the ES930.1.
Measuring function Measuring signal
State (signal state) State
Event count Events
Time measurement Inactive duration
Active duration
Cycle
Time
Input
Signal
Active
Inact ive
