ETAS Pin Assignment and Accessories
ES930.1 - User Guide 116
14.2.2 CBAV421.1 Cable

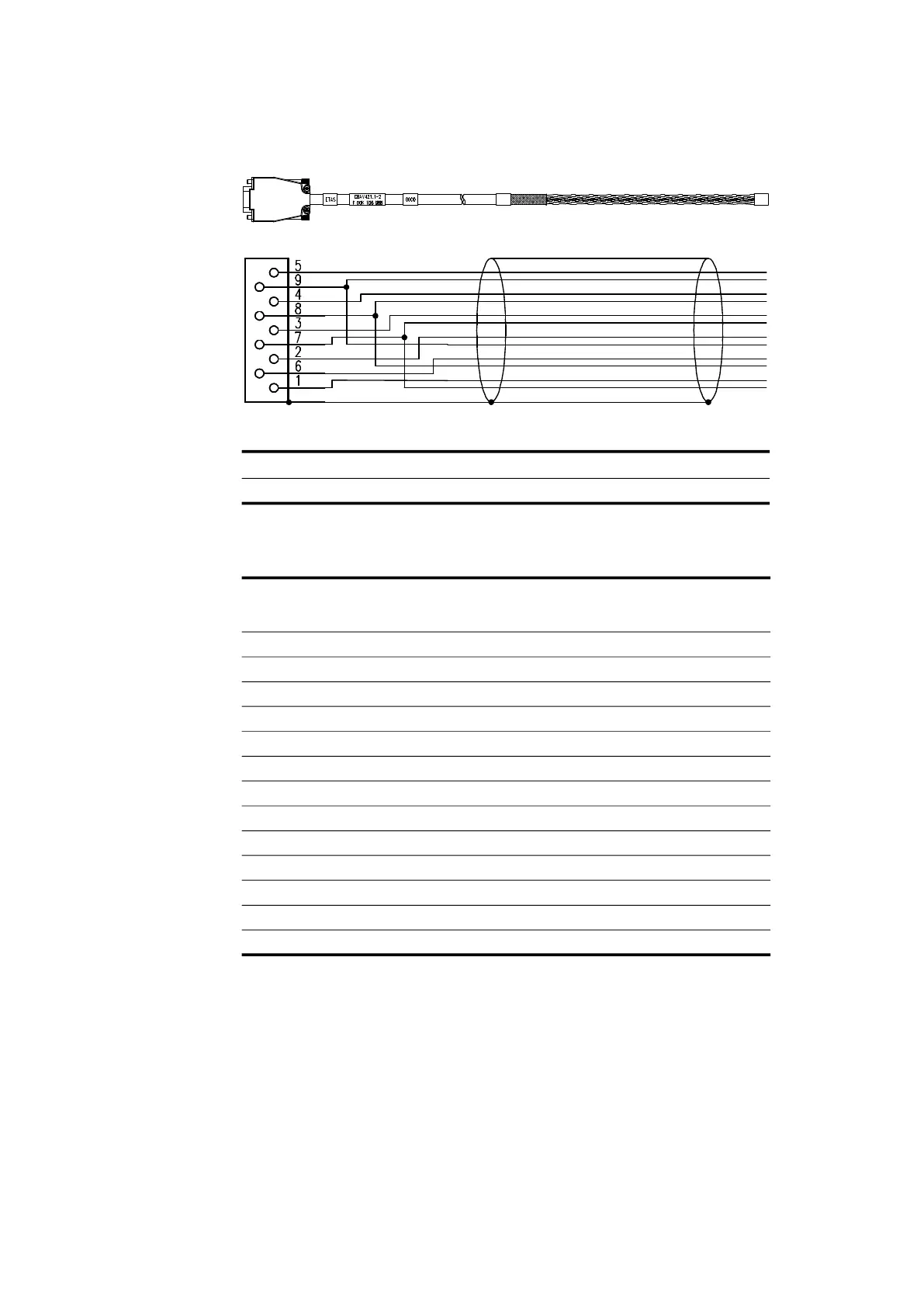

Fig. 14-12 CBAV421.1 Cable with wiring Plan
14.2.2.1 Assignment of the CBAV421.1 Cable when used at "DO" Connec-
tion
Product Length Order number
CBAV421.1-2 2 m / 6.5 ft F 00K 106 988
SUBD Signal Open cable end
Pin Pair Color
5 DO_CH5 1 White
9 DO_GND 1 Brown
4 DO_CH4 2 Green
8 DO_GND 2 Yellow
3 DO_CH3 3 Gray
7 DO_GND 3 Pink
2 DO_CH2 4 Blue
9 DO_GND 4 Red
6 DO_CH6 5 Black
8 DO_GND 5 Violet
1 DO_CH1 6 Gray/pink
7 DO_GND 6 Red/blue
Housing Shield
