ETAS ES930.1 - Fig. 9-3 Digital Output Functionality; Fig. 9-4 PWM Output Functionality; Fig. 9-5 Pulse Out Functionality

ETAS Digital Output Channels ("DO" Connection)
ES930.1 - User Guide 58
9.3 Functionalities
9.3.1 "Digital Output" Functionality
Upon request, the state of an output channel can be set to active or inactive.
The request can be initiated by the simulation processor.

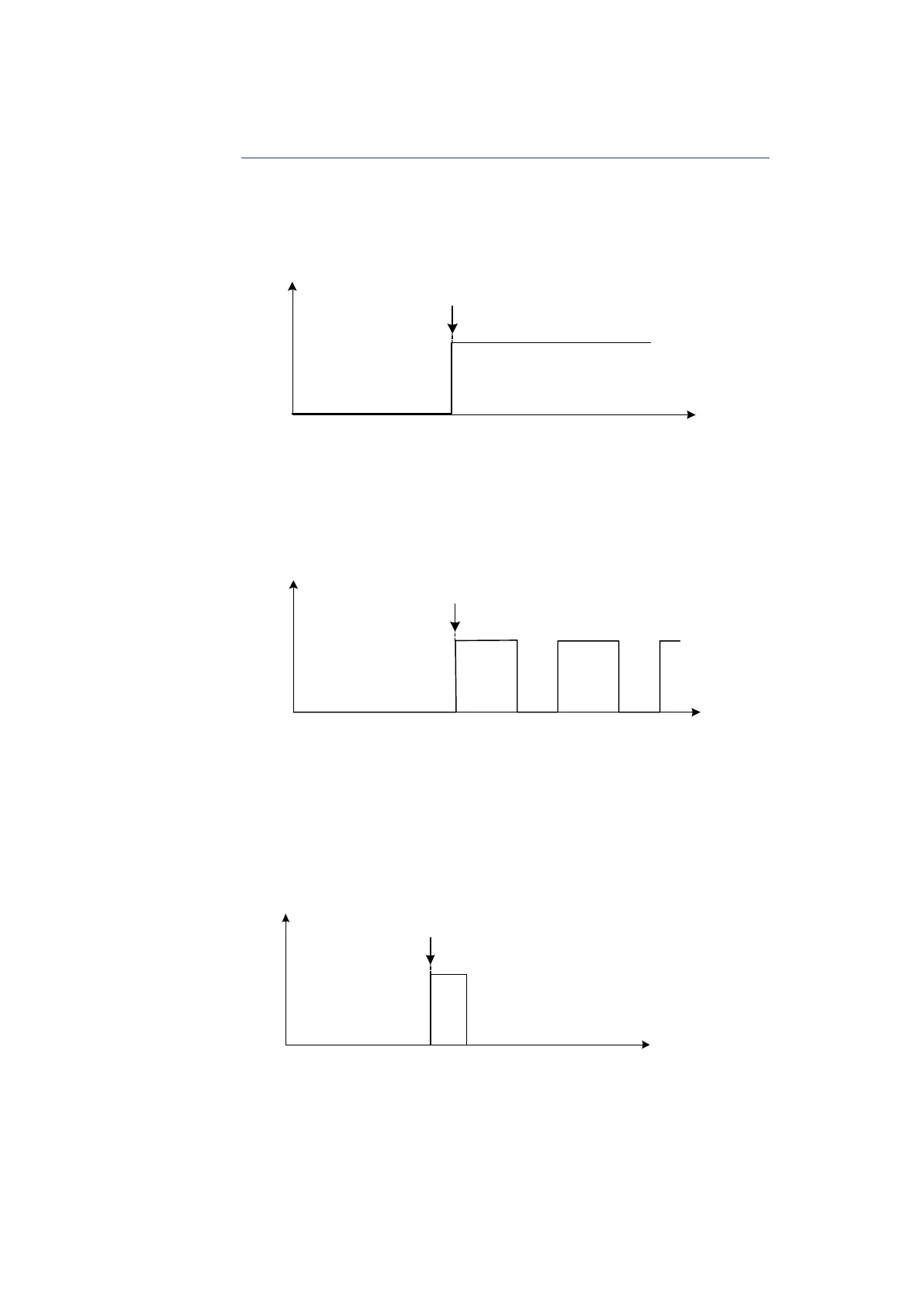

Fig. 9-3 "Digital Output" Functionality
9.3.2 "PWM Output" Functionality
PWM signals can be generated with defined values for the active and inactive
time.
Fig. 9-4 "PWM Output" Functionality
An additional request, which arrives during the processing of the first request,
is discarded.
9.3.3 "Pulse Out" Functionality
Pulses can be generated with defined value for the active time.
.
Fig. 9-5 "Pulse Out" Functionality
An additional request, which arrives during the processing of the first request,
is discarded.
Output
Si g n al
Active
Ti m e
Inact ive
Req u e st
Output
Si g n a l
Active
Tim e
Inactive
Request
Output
Si g n a l
Active
Ti m e
Inactive
Re q u e s t
