11.3.1 Cabling of the ES930.1 for MC Applications

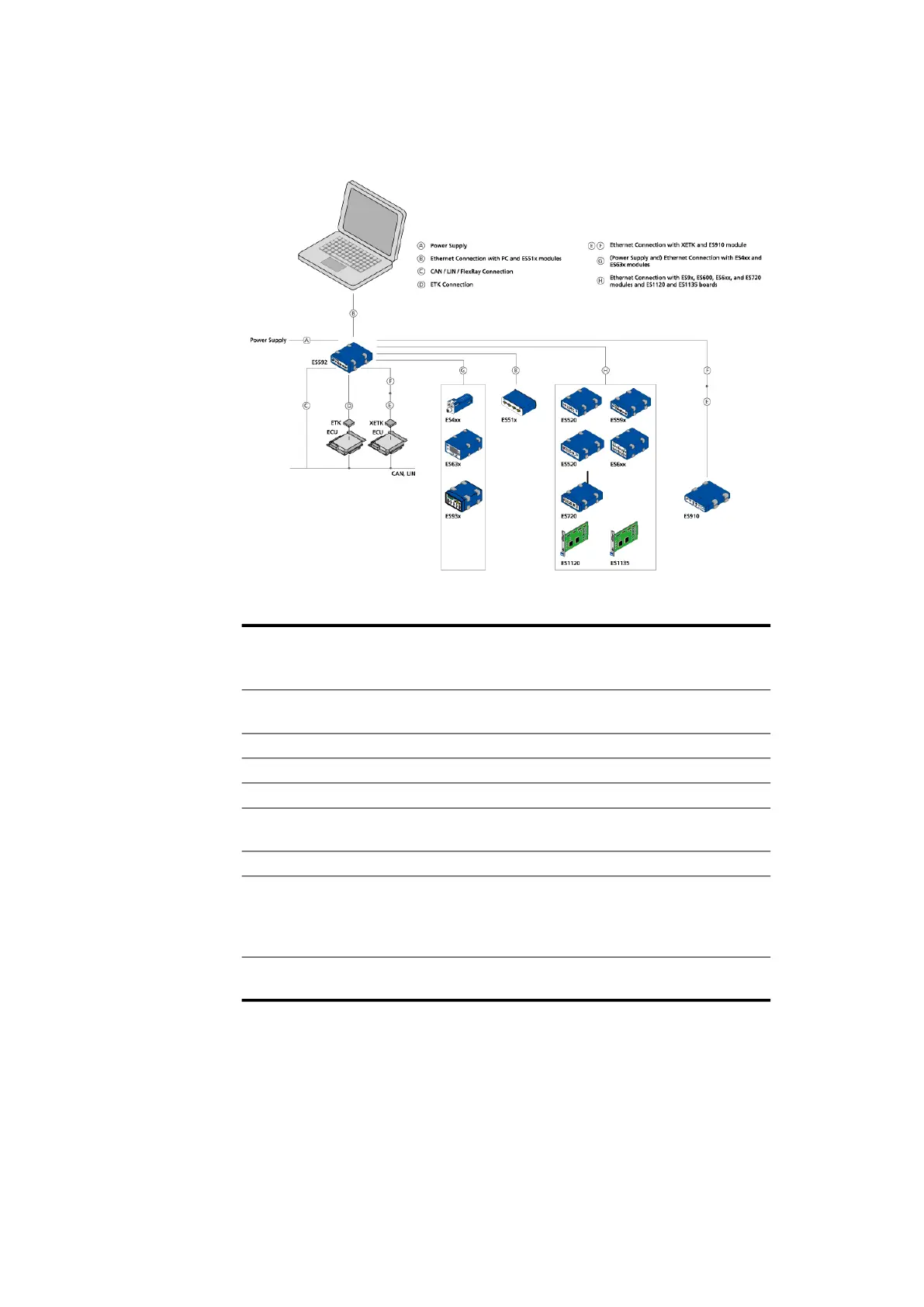

Fig. 11-6 Cabling of the ES930.1 with ETAS Modules (MC Application)

Cables

Fig. 11-6

Function Short name

A Power supply cable CBP120,

CBP1205

B PC or ES51x Ethernet cable CBE100

C CAN/ LIN/ FlexRay connection cable CBCFI100

D ETK connection cable CBM150

E Ethernet adapter cable (100 Mbit/s);

[connected to cable F]

CBAE230

F Ethernet cable (1 Gbit/s); [connected to cable E] CBAE330

G Combined power supply and Ethernet cable CBEP420,

CBEP4205,

CBEP425,

CBEP4255

H ES520, ES59x, ES6xx, ES1120 or ES1135 Ethernet

cable

CBE130,

CBE140
