5.2.3 Measurement of the Signal State (State)
At each sampling point, the active or inactive state of the input signal is deter
-
mined. The active state is represented by the value 1 or HIGH, the inactive state
by the value 0 or LOW.

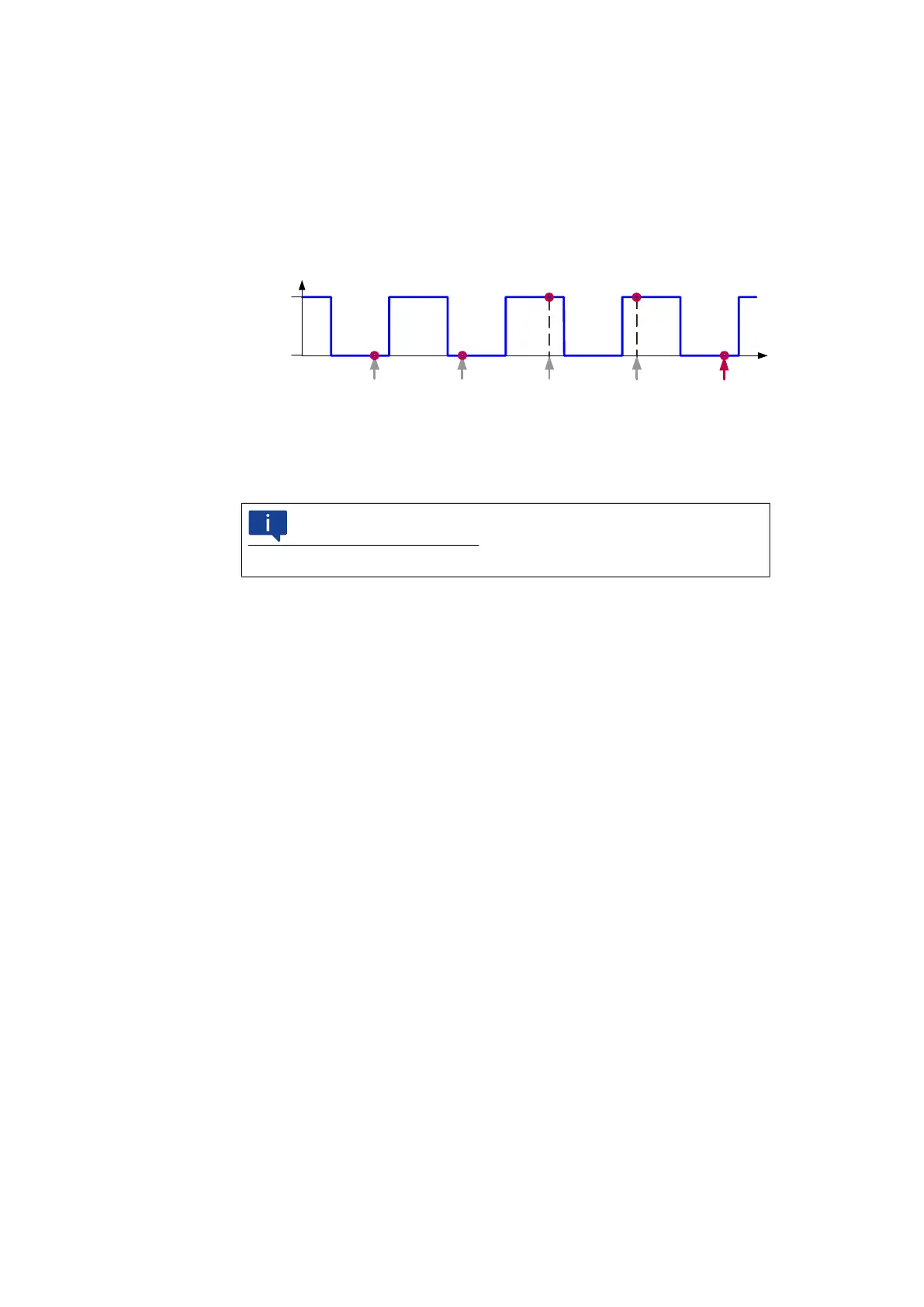

Fig. 5-8 Measurement of active and inactive State (fixed measure Rate)
In the application software, it can be defined at which input channels of the
ES930.1 the state should be measured.
NOTE
The state of a non-selected input channel is set to the value 0.
Time
Input
Signal
Active
Inact ive
Active
St a t u s
Inactive
St a t u s
Active
St a t u s
Inact ive
St a t u s
Inact ive
St a t u s
