ES930.1 - User Guide 72
11.3.2 Cabling of ES930.1 for RP Applications

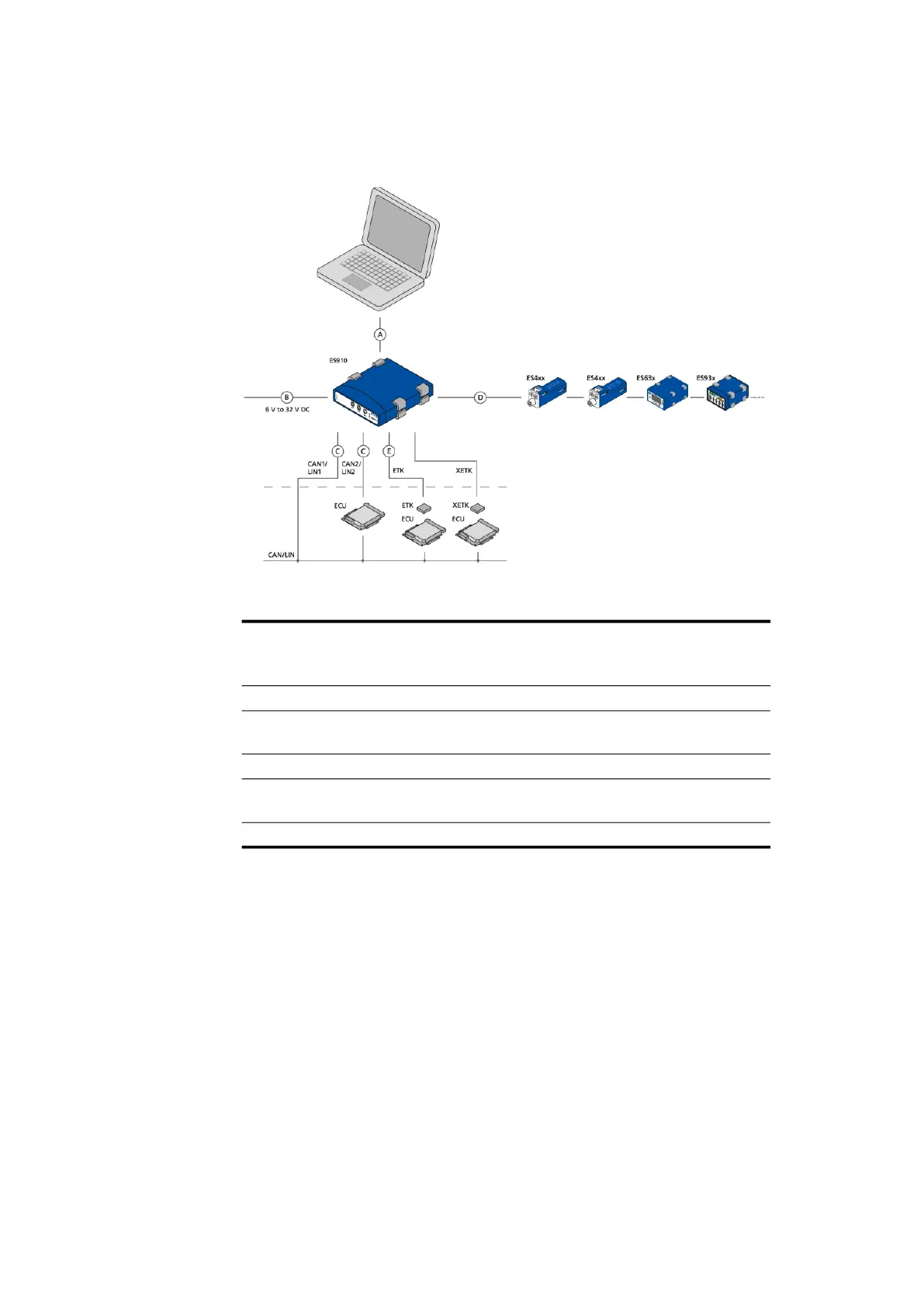

Fig. 11-7 Cabling of ES930.1 with ETAS Modules (RP Application)
Cables
in
Fig. 11-7
Function Short name
A PC connection cable CBE200
B Power supply cable CBP120,
CBP1205
C CAN/ LIN/ FlexRay connection cable CBCFI100
D Combined power supply and Ethernet cable CBEP430,
CBEP4305
E ETK connection cable CBM150
