ETAS Digital Input Channels ("DI" Connection)
ES930.1 - User Guide 41

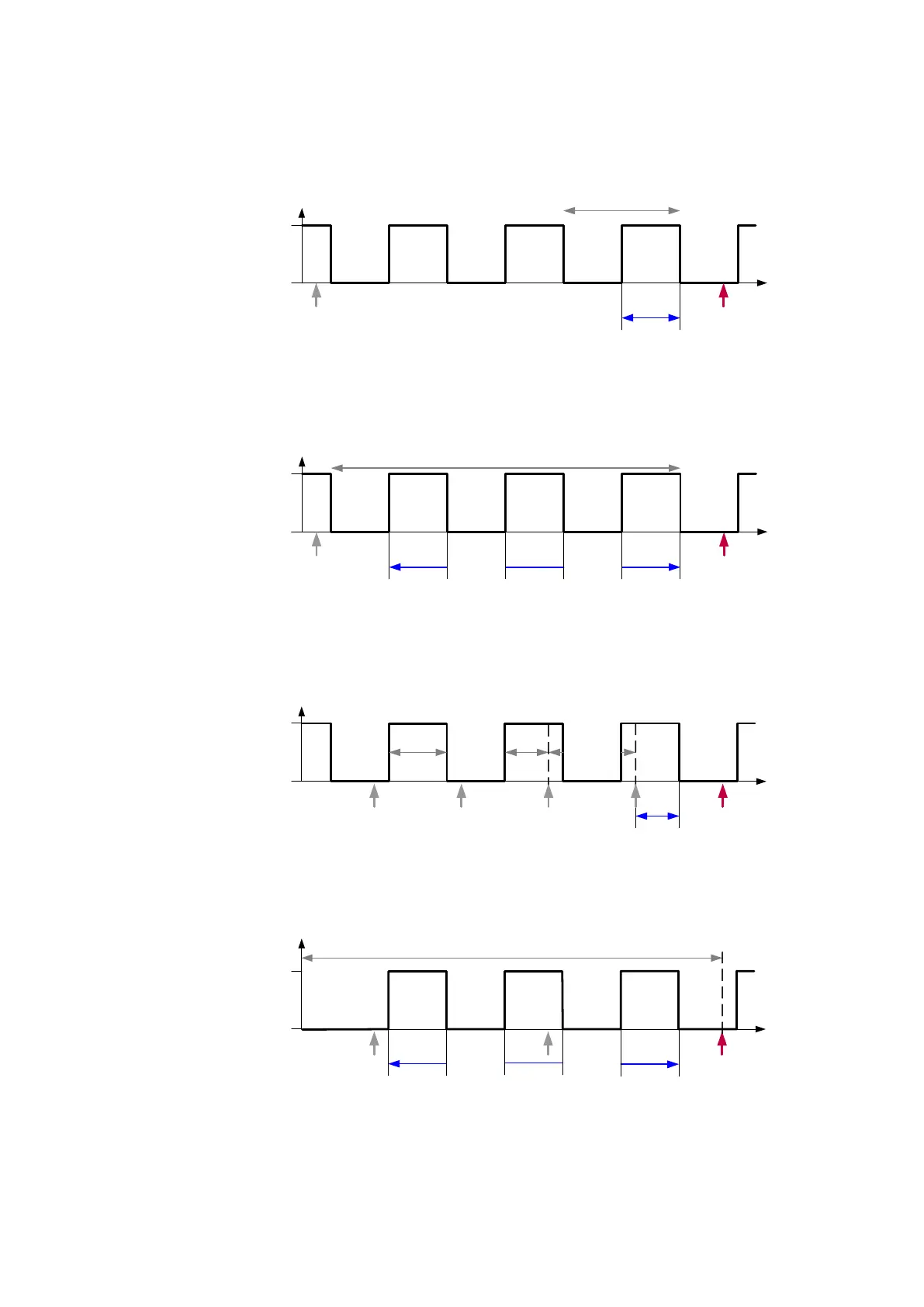

Measurement of active Time during the last Period
Fig. 5-13 Measurement of active Time during the last Period
Measurement of active Time of a Cycle
Fig. 5-14 Measurement of active Time of a Cycle
Measurement of active Time between two sampling Points
Fig. 5-15 Measurement of active Time between two sampling Points
Measurement of active Time until the last current sampling Point
Fig. 5-16 Measurement of active Time until the last current sampling Point
The sum of the active time can be determined over the entire measure time
without any gaps (see
Fig. 5-16 on page 41).
Time
Input
Signal
Active
Inactive
Active
Tim e
Per i o d
Time
Inactive
Input
Si g n a l
Active
Cycle
Active
Ti me
Active
Tim e
Active
Ti me
Tim e
Input
Si g n a l
Active
Inactive
Active
Ti me
Tim e
Input
Signal
Active
Inact ive
0
Measurem ent Time
Active Time
