ETAS ES930.1 - Rear Side

ETAS Hardware Description
ES930.1 - User Guide 19
3.3.3 Rear Side

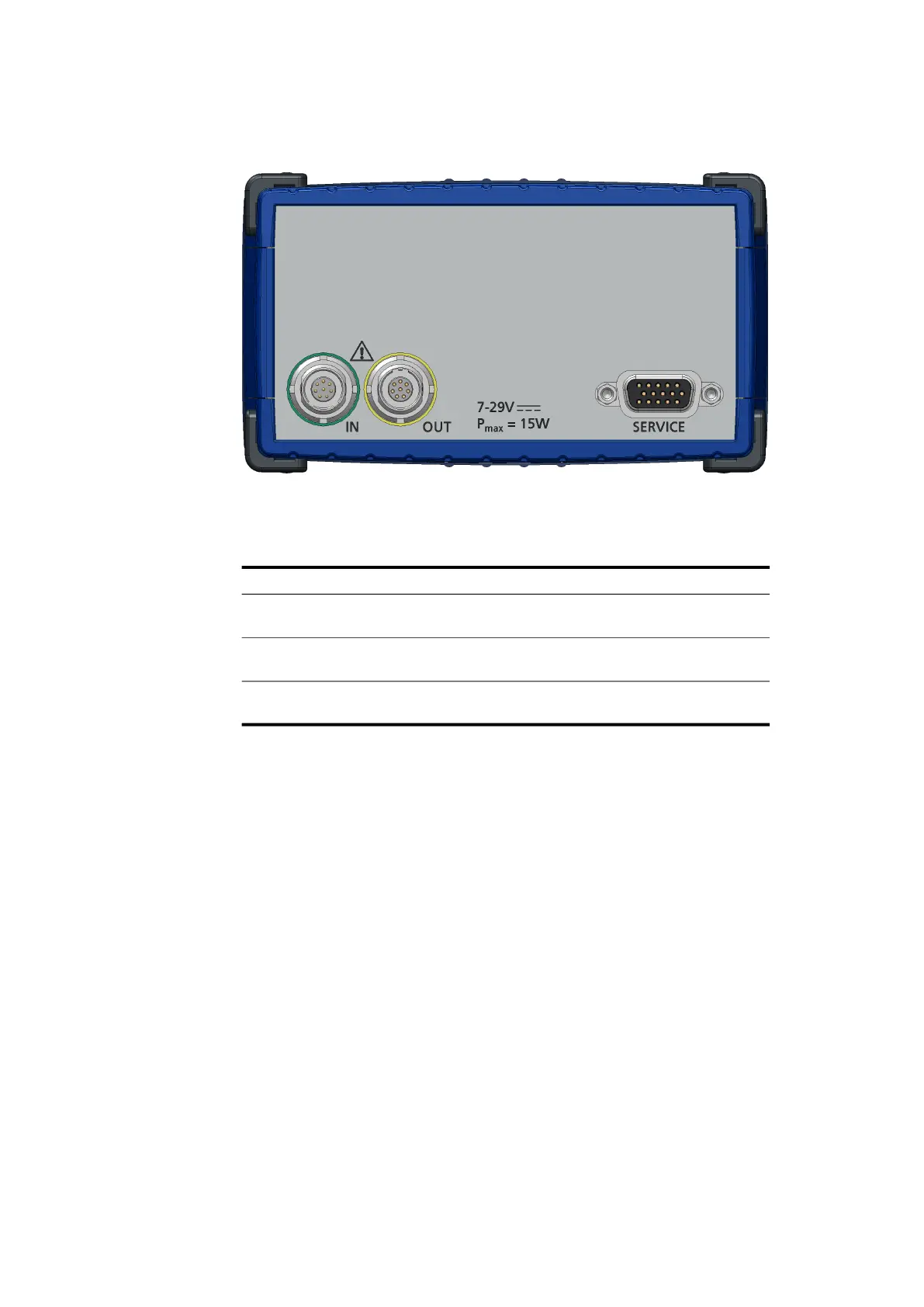

Fig. 3-3 Rear Side
The rear side of the ES930.1 module features the following connections (see
Fig. 3-3 on page 19):
Name Connection Meaning
IN Daisy chain In Input; Ethernet connection to the previous module
or the PC, power supply of the module
OUT Daisy chain Out Output; Ethernet connection and power supply of
the succeeding module
SER-
VICE
Service Reserved; for ETAS-internal application only; no
provision of functions for the customer
