11 Startup
The chapter "Startup" contains general installation recommendations, a
description of the connection and installation options, an overview of the appli
-
cations and notes about the cabling of the ES930.1.
11.1 Installation and Blocking
11.1.1 General Installation Recommendations
11.1.2 Fastening the Module onto a Carrier System
The ES930.1 has a robust metal housing equipped with non-slip plastic feet.
The module can easily be screwed onto a support system for fastening in the
vehicle or lab. The screw threads for fastening the module are already in the
housing and easily accessible.
Fastening the housing of the ES930.1:
1. Remove the plastic feet on the underside of the module. To do
so, push the blunt screwdriver between bottom of housing and
plastic foot.
2. Pry off the plastic foot.

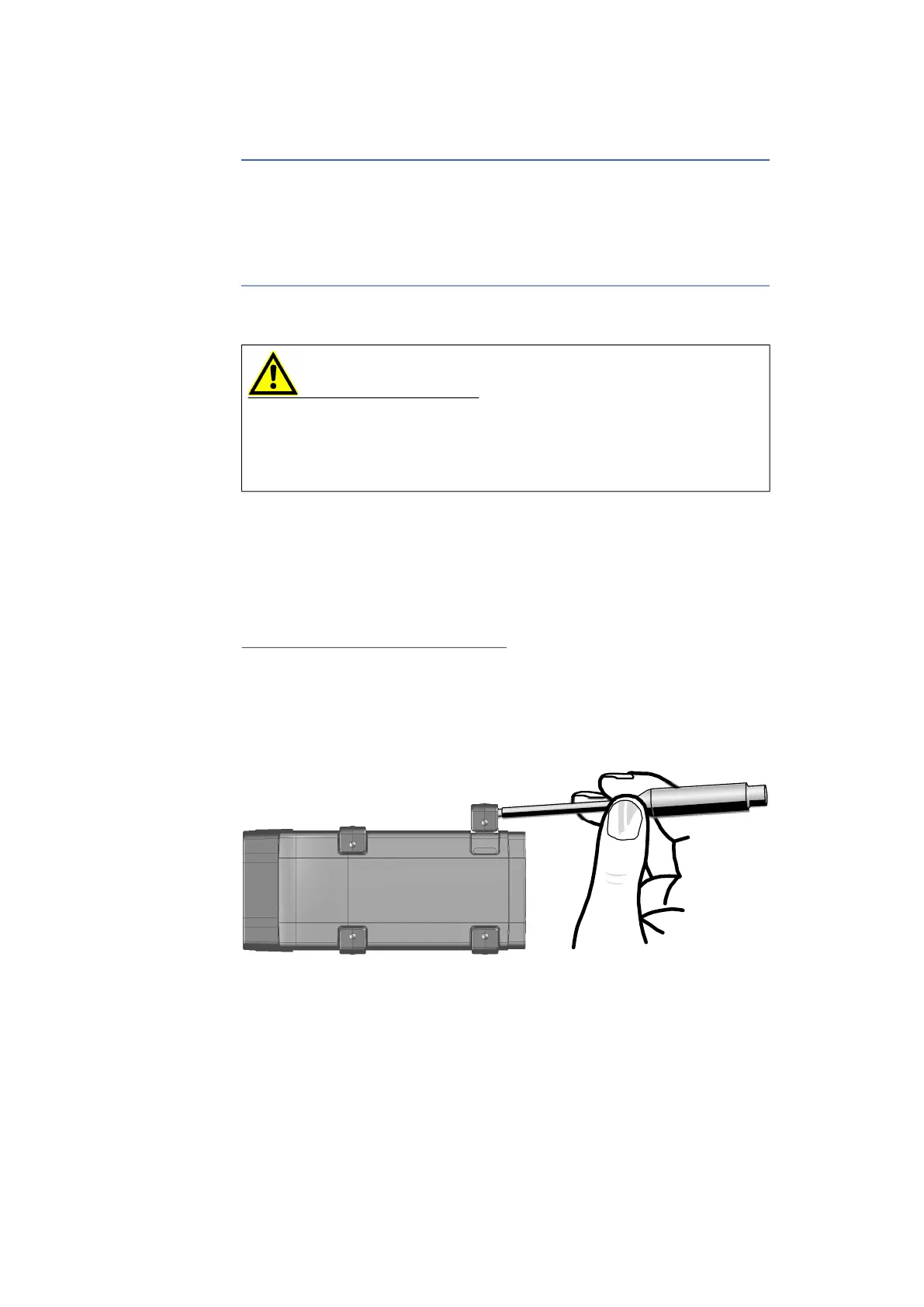

Fig. 11-1 Prying off the Plastic Foot
3. A screw thread becomes visible under the plastic foot. The
threads for fastening the module are located on the underside
of the housing.
CAUTION
Damage or destruction of the module is possible.
The modules are approved only for the installation and operation on compo-
nents or at locations that ensure that the technical data of the modules are
maintained during their operation (see chapter
13 on page 85).
