ETAS Pin Assignment and Accessories
ES930.1 - User Guide 110
14.1.9 "OUT" Connection

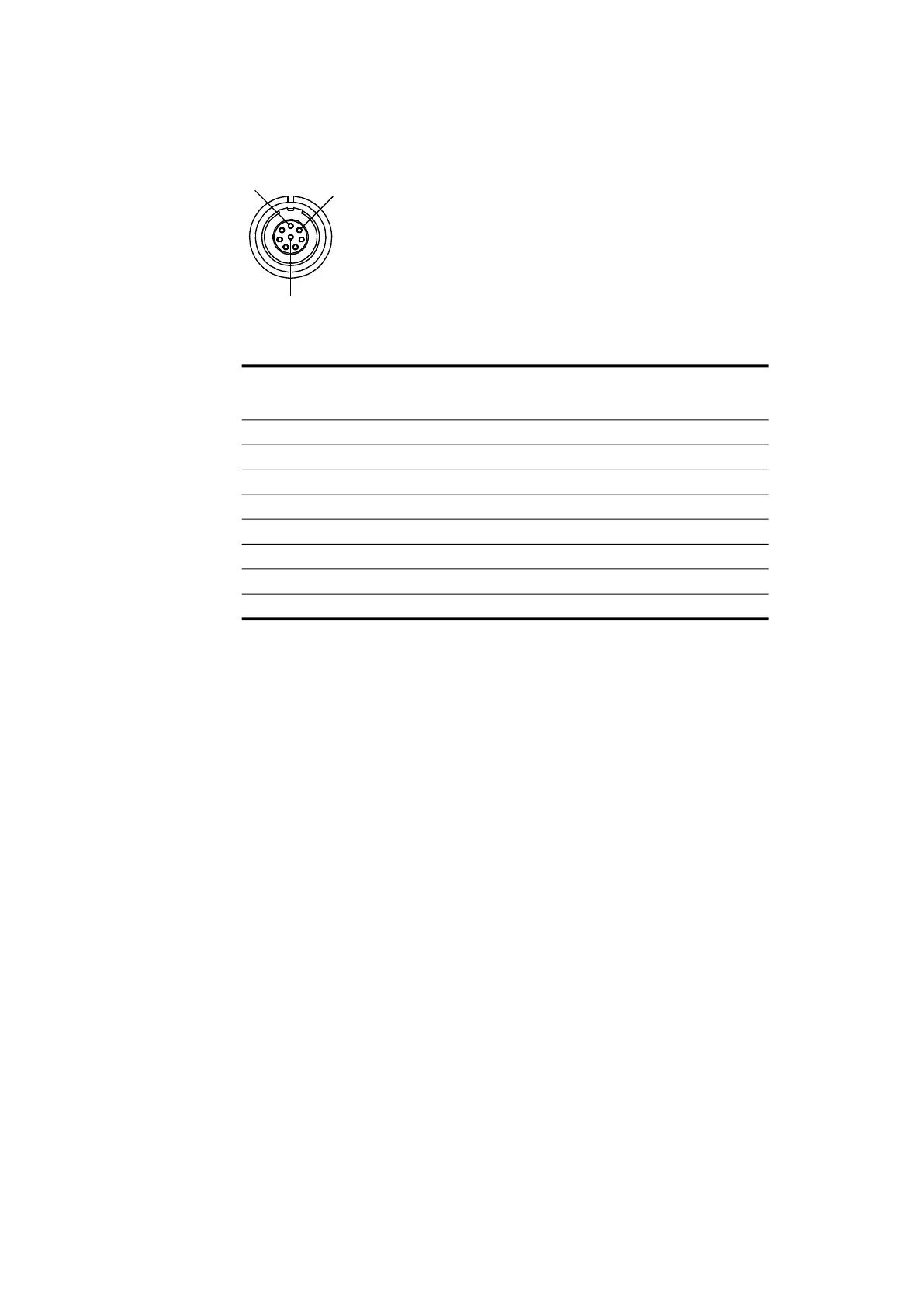

Fig. 14-9 "OUT" Connection
A LEMO 1B 8-pin socket with A-coding (connection identified in yellow) is
installed at the "OUT" connection.
ES930.1 "IN" connection Meaning
Pin Signal
1 UBatt Operating voltage
2 UBatt Operating voltage
3 Ground Ground
4 RX+ Receive data, plus
5 TX- Send data, minus
6 RX- Receive data, minus
7 Ground Ground
8 TX+ Send data, plus
1
7
8
