246 Element User Manual
Color indicators
Element uses color to indicate the selection state and information about channel or parameter
levels.

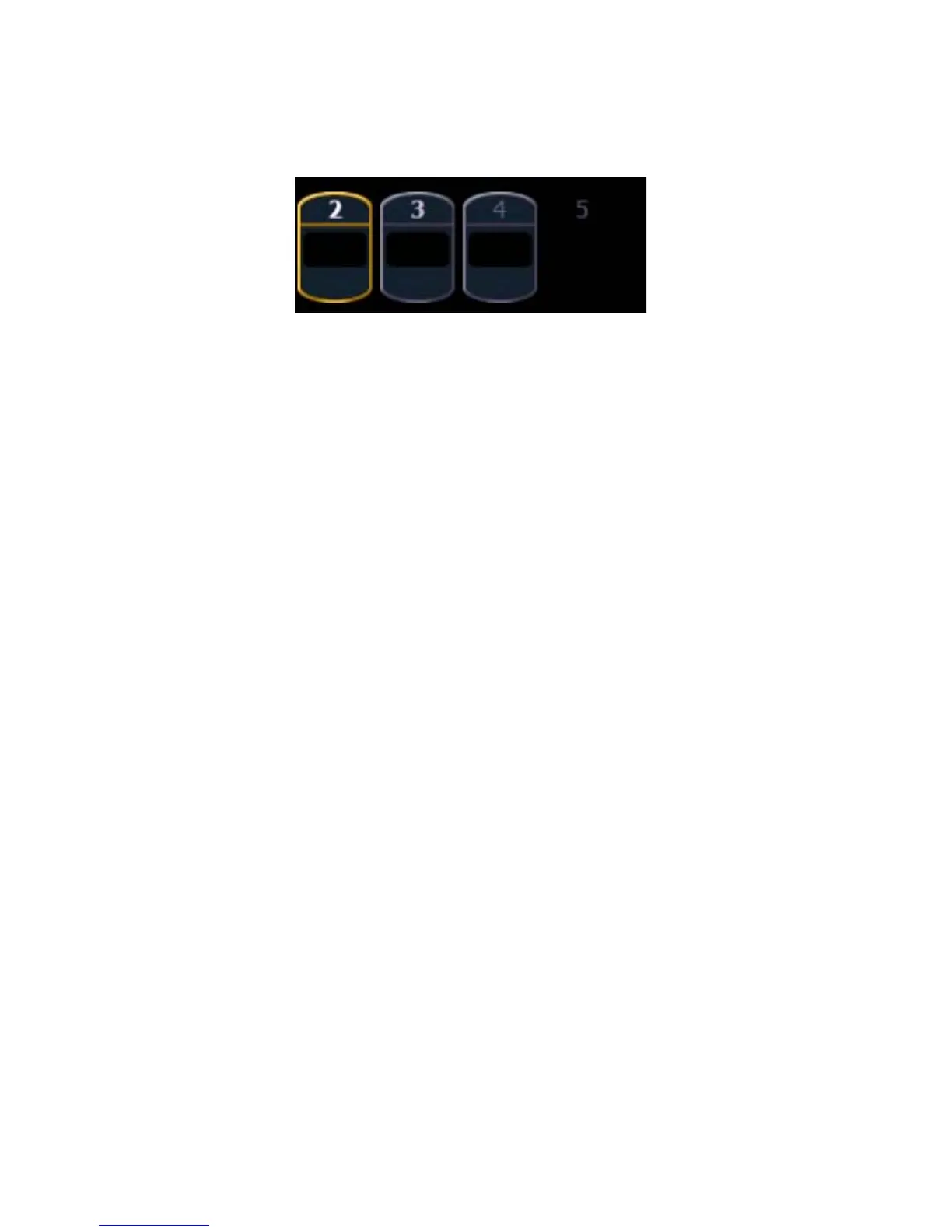

Channel numbers/channel headers
• 1- Gray number. . . . . . .Unpatched channel number.
• 2- White number . . . . . .Patched channel number.
• 3- Bright White number Channel is parked.
• 4- Gold outline . . . . . . .Selected channel.
• 5- No outline . . . . . . . . .Deleted channel.
Channel or parameter levels
• 6- Red . . . . . . . . . . . . . .Manual data (any data that has been set but not yet stored to
an active cue or submaster).
• 7- Blue . . . . . . . . . . . . . .The intensity value is higher than in the previous cue.
Non-intensity parameters (NPs) are in blue when any move
instruction has occurred.
• 8- Green. . . . . . . . . . . . .The intensity value is lower than in the previous cue.
• 9- Magenta. . . . . . . . . . .The recorded value is tracked, unchanged from a previous
cue.
• 10- White . . . . . . . . . . . .The value is blocked.
• 11- Yellow . . . . . . . . . . .Value is controlled by a submaster.
• 12-Gray . . . . . . . . . . . . .Default or unowned values.
