IPLEX TXII

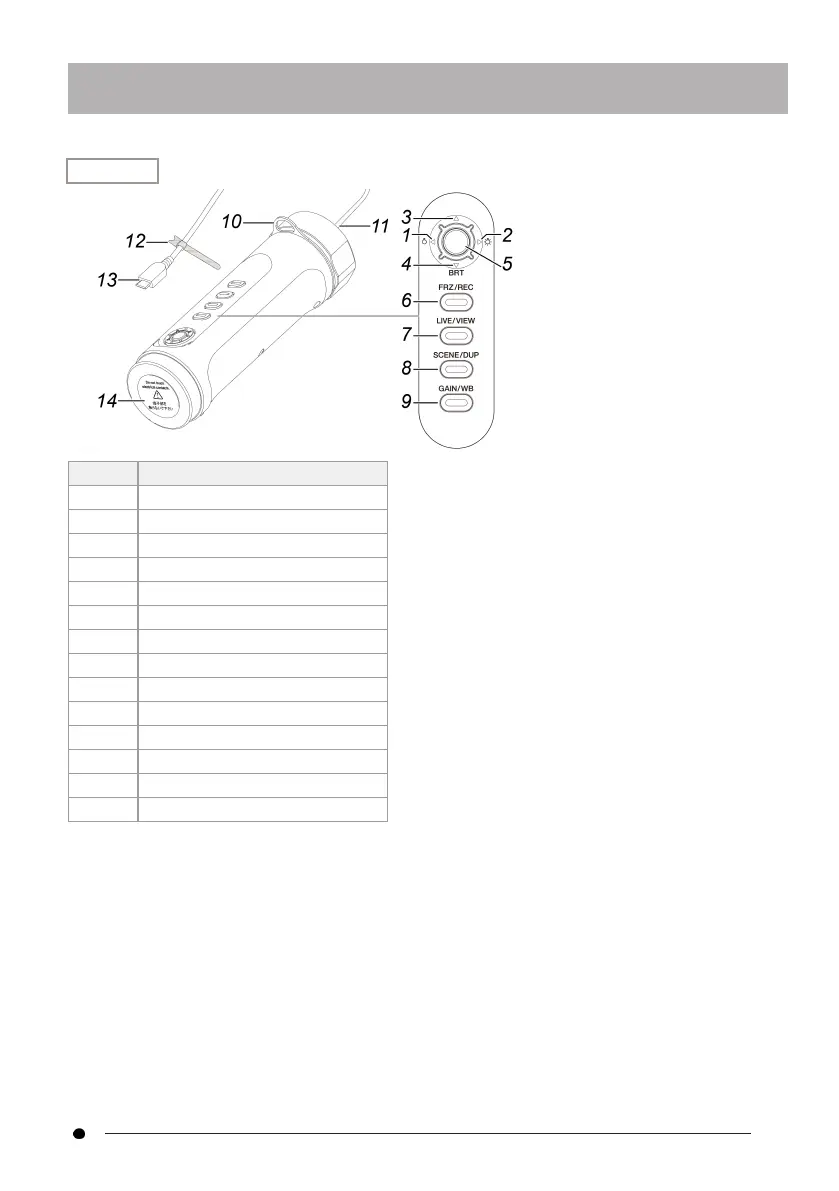

Control unit
Number Nomenclature
1 D-pad [L]
2 D-pad [R]
3 D-pad [U]
4 D-pad [D]
5 [ENT/MODE] button
6 [FRZ/REC] button
7 [LIVE/VIEW] button
8 [SCENE/DUP] button
9 [GAIN/WB] button
10 Strap hole
11 USB cable part
12 Magic band (for cable bundling)
13 Connector for USB
14 Protective cap
13
