IPLEX TXII
3.7 Attaching/removing protection braid to/from flexible
scope
CAUTION:
l
Before attaching the protection braid to the scope insertion part, make sure the
protection braid is not damaged.
l
To protect the scope insertion part, slowly insert the scope into the protection braid.
l
Make sure the protection braid is securely fixed to the scope. If it is not securely fixed, the
protection braid will easily come off from the scope insertion part, and the protection
braid may fall off and damage the scope.
l
If the protection braid is fixed in an overstretched state, the flexible scope will not bend.
Also, if the protection braid is fixed loosely, the field of vision will be blocked. Fix it in a
suitable position so that the protection braid is not overstretched and not too loose.

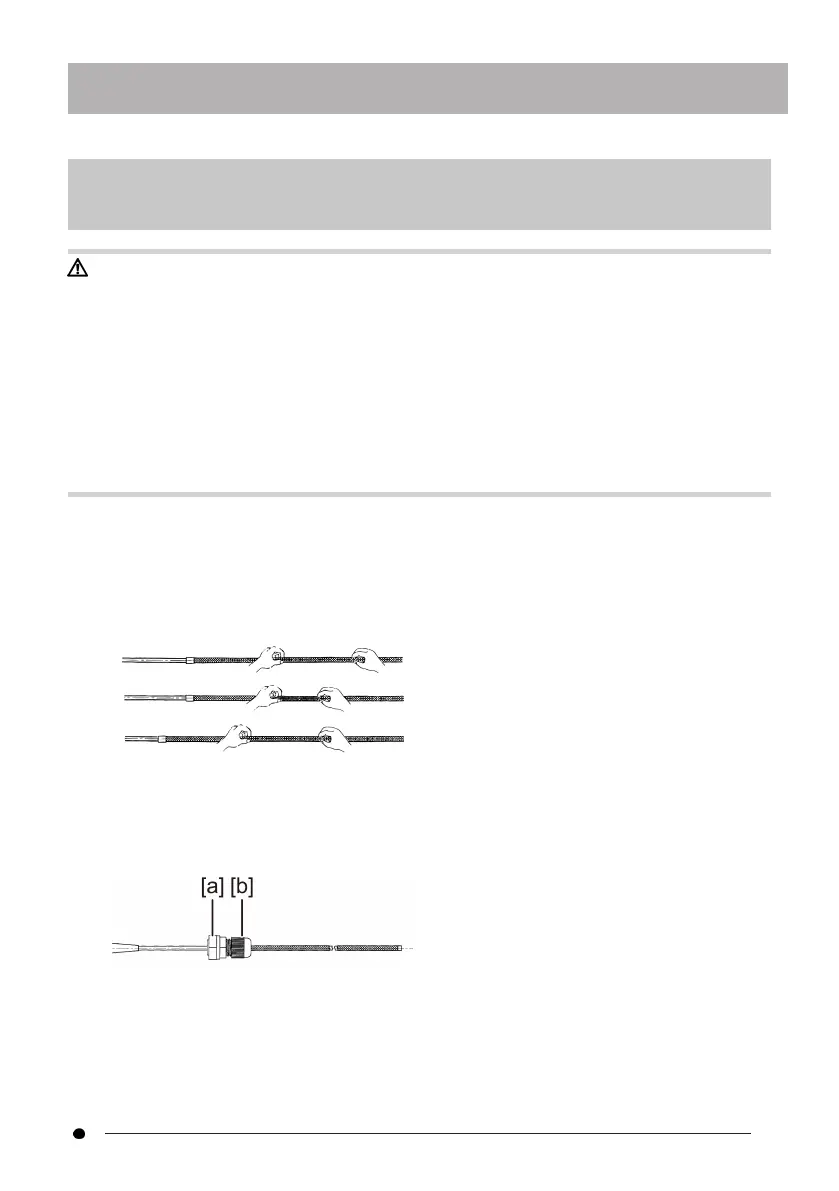

1.
With the scope insertion section extended, insert the protection braid into the
tip of the scope.
2.
Cover the scope insertion part with the protection braid while alternately pulling
and pushing the protection braid along the scope as shown in the figures.
3.
After covering thescope insertion part with the entire length of the protection
braid, insert the braid stopper [a] and clamping screw [b] onto the scope
insertion part, and tighten the clamping screw [b] of the braid stopper [a] firmly.
25
