IPLEX TXII
NOTE:
Store the protective caps in an empty space in the carrying case.
3.
Check whether there is no foreign body such as dust adhering to the terminals of
the control unit and scope unit.
4.

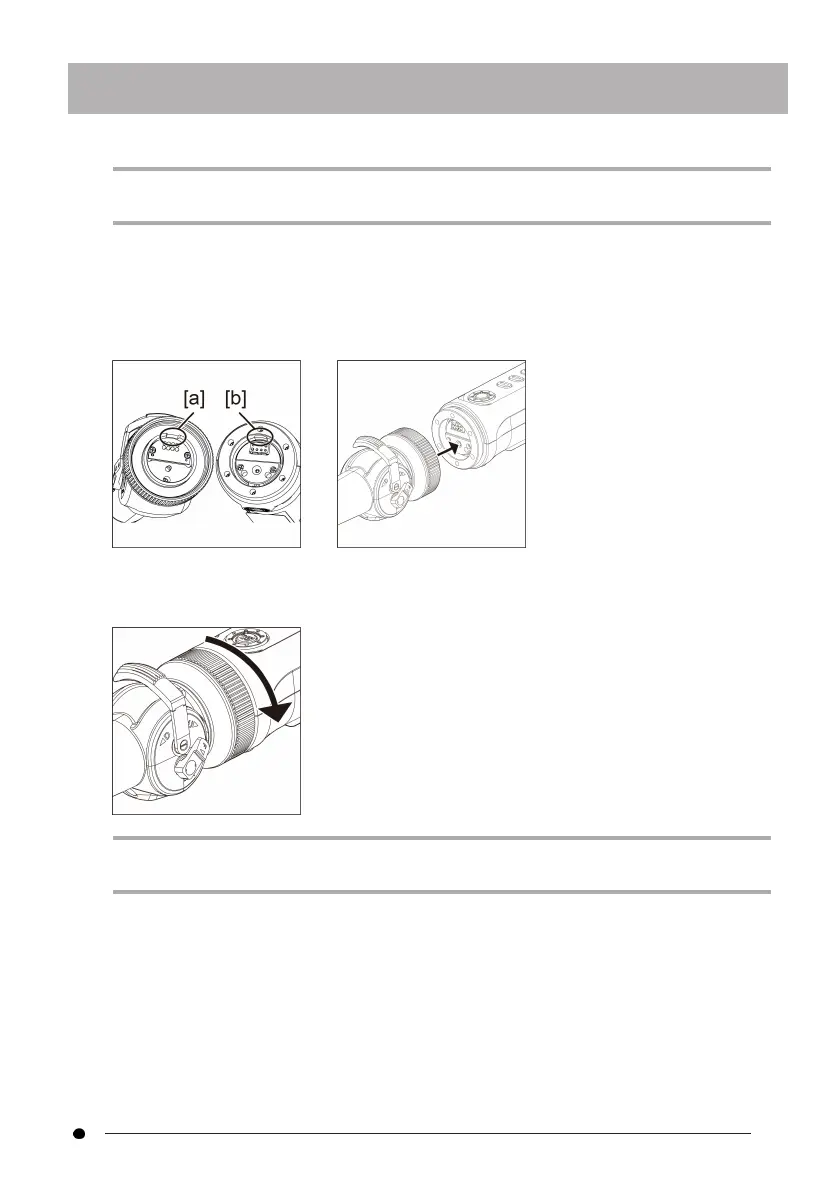

Align the cutout [a] on the scope unit side with the projection [b] on the control
unit side and connect them, and push the fixing ring in the direction of the
arrow to bring it into contact with the control unit.
The illustration shows a flexible scope to explain how.
5.
Tighten the fixing screw of the scope unit to fix it.
NOTE:
Make sure that the fixing screw of the scope unit is securely tightened.
17
