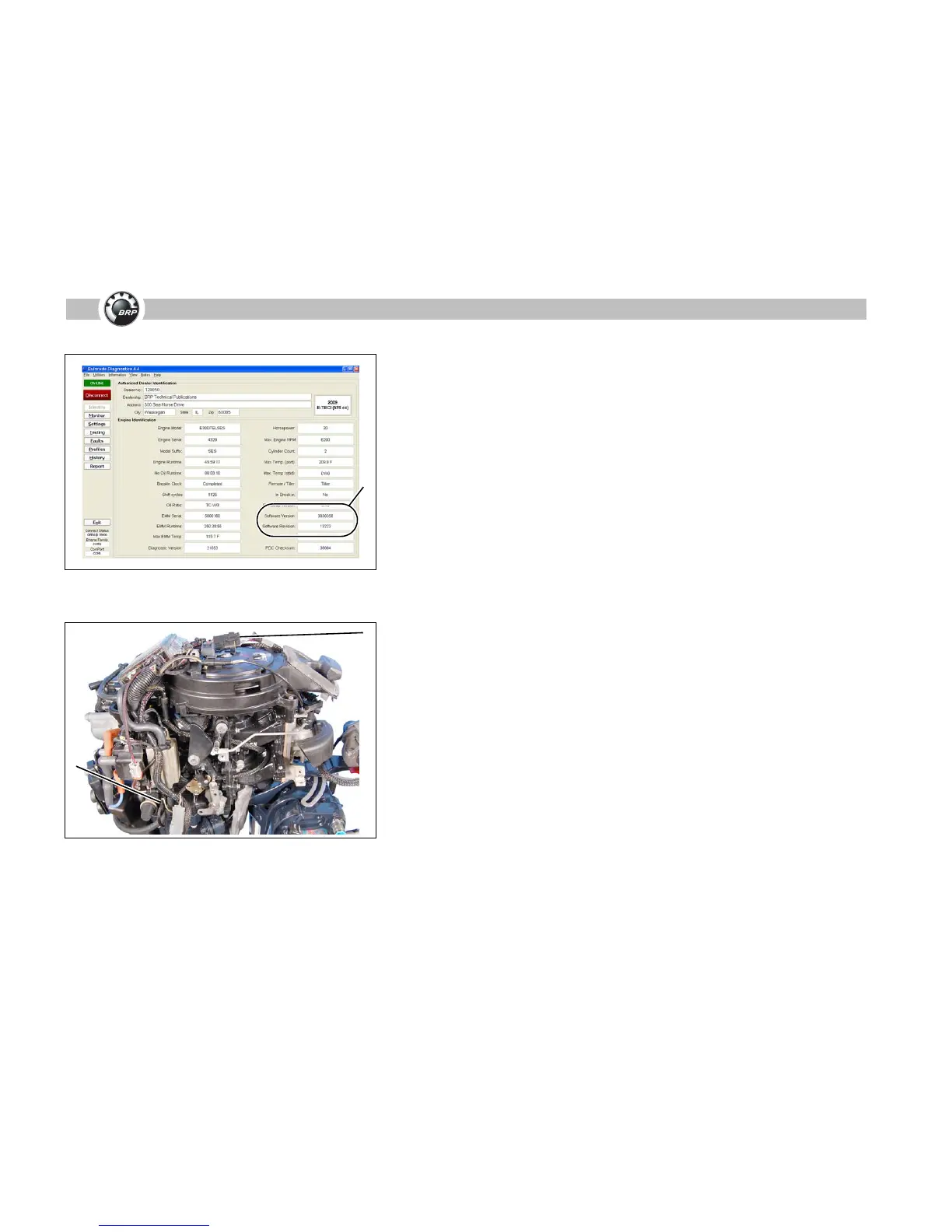

1. Engine management software version and revision
1. 6-pin AMP connector (tiller harness)
2. 2-pin AMP connector (neutral switch)
15 – 90 HP INLINE MODELS
Engine Management Software 15 – 30 HP Models
Engine management software has been developed to improve emissions and
reduce fuel consumption on 15 – 30 HP models.
Update engine management software on engines with serial numbers 5283875
to 5289986.
Refer to Warranty Bulletin 2010-09(W).
Engine Wiring Harness Change 15 – 30 HP Models
Evinrude E-TEC 15 – 30 HP (C, H, R, and S-suffix) model outboards have a new
engine wiring harness to support changes to the Touch Troll and neutral
switches.
The Touch Troll switch connector has been eliminated. Wiring for the Touch Troll
switch has been relocated to a new 6-pin AMP connector of the tiller harness.
The neutral switch has a dedicated 2-pin AMP connector, similar to other
Evinrude E-TEC models.
